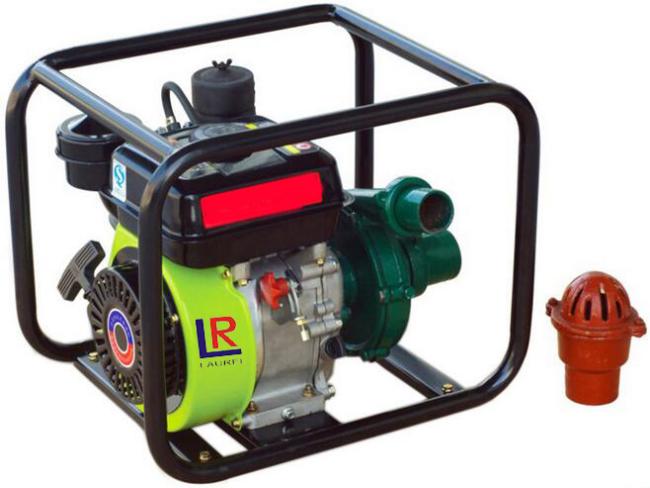

6HP Diesel Engine Recoil Start Centrifugal Water Pump for Agricultural Irrigation
6HP Diesel Engine Centrifugal Water Pump for Agricultural Irrigation with Recoil Start
Product Scope:
1.Including 2 inch,2.5 inch,3 inch,4 inch,6 inch.
2.Self-priming,centrifugal,clean water,sewage and fire fighting water pump.
3.Fuel type:gasoline,diesel,kerosene.
Product Features:
1.Stable running
2.Compact structure
3.Portable and small
4.OEM and ODM are available
5.CE,ISO certificate
6.Color:red,yellow,blue,green and black
7.One year warranty
8.Low fuel consumption
The 2.5 inch Diesel Water Pump Specifications:
| Pump Model | LP26-2.2 |
| Engine Model | LE168F |
| Engine Type | Single cylinder,4-Stroke,Air-cooled, Incline,Swirl chamber |
| Bore×Stroke(mm) | 68*54 |
| Displacement(cc) | 196 |
| Rated Speed(r/min) | 3000 |
| Rated Power(kw/hp) | 2.2/3 |
| Max Power (kw/hp) | 2.4/3.3 |
| Valve Clearance(mm) | Inlet:0.05-0.10 Outlet:0.10-0.15 |
| Pump Style | Direct connect centrifugal |
| Inlet size(mm/'') | 65(2.5'') |
| Outlet size(mm/'') | 50(2'') |
| Lift Head(m) | 32 |
| Suction Head(m) | / |
| Maximum Capacity( M³/h) | 35 |
| Self-priming time(s) | / |
| Starting System | Recoil |
| Engine Fuel Consumption(g/kw.h) | ≤280 |
| Dimention(LxWxH)(cm) | 495*405*415 |
| N.W/ G.W(KG) | 35/37 |
Manufacture's Advantages:
1. Our factory was founded in 1981.
2. Main Products: diesel generator sets, generators, engines, water pumps and other agricultural machinery products.
3. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
1. professional value-added technical support
2. warm before-sales & after-sales service
3. warranty period of 24 months or 1200 operating hours for diesel generators.
3. warranty period of 12 months or 1000 operating hours for gasoline generators.
