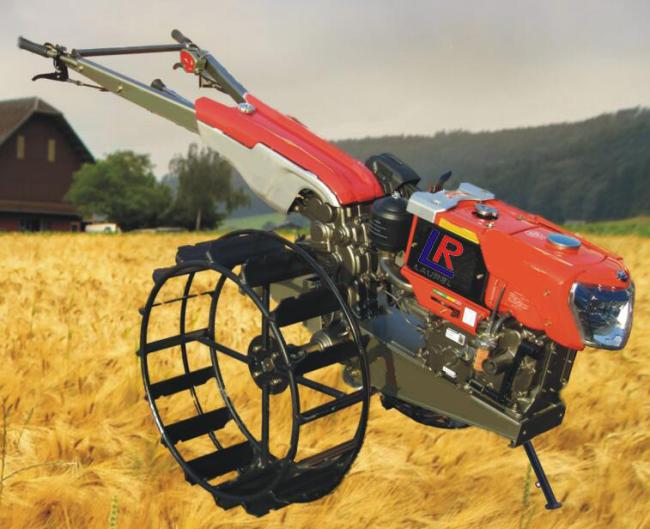

8HP - 14HP Farm Walking Tractor Tillers and Cultivators with Diesel Engine Power , 2 Wheel
8HP to 14HP Farm Walking Tractor Cultivator with Diesel Engine Power , Two Wheel
Features:
1.Two Wheel Design
2.Easy to operate
3.Diesel engine power
4.Max.output:8-14HP
Specifications:
| Dimensions of Tractor | Width | 1050/1200mm |
| Length | 2960mm | |
| Height | 1220mm | |
| Diameter of engine pulley | 140mm(5.5in) | |
| Diameter of transmission pulley | 180mm(7in) | |
| Diameter of cage wheel | 800mm | |
| Diameter of rubber tire | 5.00-12in | |
| Diameter of towing pin | 26mm | |
| V-belt | Length | 1981mm |
| Quantity | 2 | |
| Brake system | Small-scale braking | |
| Clutch type | Dry multiple disc clutch | |
| Lubricating oil in transmission | Type | SAE No.90 |
| Capacity | 5.5-6L | |
| Tractor max. speed | 23.5km/h | |
| Transmission ratio | Low speed 1st Gear | 44:1 |
| Mid speed 1nd Gear | 23:1 | |
| High speed 3rd Gear | 8:1 | |
| Reverse Gear | 56:1 | |
| Tractor weight (without engine) | 210kg | |
| Diesel engine max.output | 8-14HP | |
Why choose us?
Company's Profile
Guangzhou Laurel & Honesty Holdings, founded in 1981, has 35 years export experience in Guangzhou. Our main export products are diesel generator sets, small power gasoline or diesel generators, small power gasoline or diesel engines, gasoline water pumps and other machinery products, as well as architectural glass and other building materials. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc
Guarantee Service
We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty products guarantee under this warranty statement.
Warranty Period
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser
