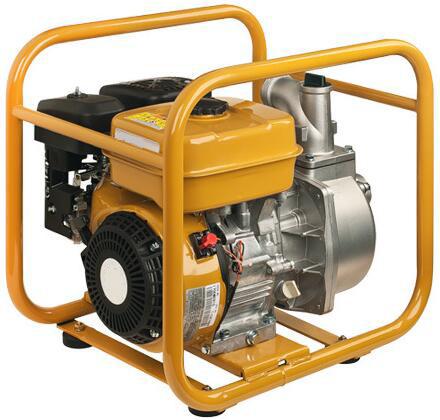

Single Cylinder Forced Air Cooled 2Inch 5.5HP Diesel Engine Driven Water Pumps for Agriculture
Single Cylinder Forced Air Cooled 2Inch 5.5HP Petrol Water Pump for Agriculture
Product feature:
CE; SONCAP;ISO9001:2008 certification are approved
Mproved Fuel Efficiency, Longer Life & Less Maintenance
Automatic Voltage Regulation Protects Solid State Equipment, Convenient Control Panel Features 2AC Outlets, 1 DC outlet, Low Oil Shutdown Protects
The Engine By Automatically Turning Off When Oil Is Low
Portable compact open structure,equipped With 10 inch wheels and stationary handle for easy portability
Generator Comes With Oil, Battery, 30A Cord, and a 1 Year Limited Warranty
Powers fridge, furnace, lights, TV, and much more
Patent design, unique appearance and function;Advance technologe, with THD<5% avaliable
Product Description:
| Model | LP15CX | LP15H | LP20CX | LP20H | LP30CX | LP40CXA | LP40CXB |
| Inlet and outlet size: |
40 (1.5") | 40 (1.5") | 50 (2") | 50 (2") | 80 (3") | 100 (4") | 100 (4") |
| Rated speed (HP/rpm): |
3600 | 3,600rpm | 3,600rpm | 3,600rpm | 3600 | 3600 | 3600 |
| Displacement (m3/h ): |
20 | 35 | 36 | 42 | 60 | 75 | 90 |
| Pump lift (m): | 20 | 55 | 26 | 50 | 30 | 25 | 30 |
| Suction height(m): |
7 | 6 | 8 | 7 | 8 | 7 | 8 |
| Engine model: | LE90 | LE160 | LE160 | LE210 | LE200 | LE210 | LE270 |
| Displacement: | 87 | 163ml | 163ml | 210 | 200 | 210 | 269 |
| Engine max output: Hp/rpm: |
2.6/3000 | 5.5/3600 | 5.5/3600 | 7.0/3600 | 6.5/3600 | 7.0/3600 | 9.0/3600 |
| Engine max Torque (N· m/rpm): |
4.4/3000 | 9.5/2500 | 9.5/2500 | 11.6/2500 | 10.8/2500 | 11.6/2500 | 16.7/2500 |
| Fuel volume (L): | 1.6L | 3.6L | 3.6L | 3.6 | 3.6 | 3.6 | 6 |
| Bore x stroke: | 54x38 | 68x45 | 68x45 | 70x52 | 68x52 | 70x52 | 77*58 |
| Compression ratio: |
7.7:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.2:1 |
| Oil volume (L): | 0.37L | 0.6L | 0.6L | 0.6 | 0.6 | 0.6 | 1.1 |
| Start mode: | recoil | recoil | recoil | recoil | recoil | recoil | recoil |
| NW/GW (kg): | 28/30 | 24.5/26 | 26/28 | 27/28 | 28/30 | 37/39 | 47/49 |
| 20GP | 686 | 385 | 385 | 385 | 330 | 300 | 144 |
| 40HQ | 1568 | 900 | 900 | 900 | 828 | 776 | 375 |
| Package dimensions (mm): |
420*335*335 | 485*385*380 |
510*385*425 | 525*385*430 | 635*455*545 | ||
Why choose Laurel?
Strong R&D capacity
1.a professional technician team
2.modernized laboratory equipped with advanced facilities
3.promote new products every year
4. Laurel patent design of key parts and appearance
Powerful production capacity
1.5 production base, over 100 employees
2.annual output of 10,0000generator sets and 2 million alternators
3.key parts made by ourselves,such as alternator,engine,mufflers,control pannel,air filter,etc
4.provide OEM service for world-famous generator brand
Reliable service
1.professional subsidiary trading company, experienced staff, 35 years export history
2.annual sale volume reached $30 million
