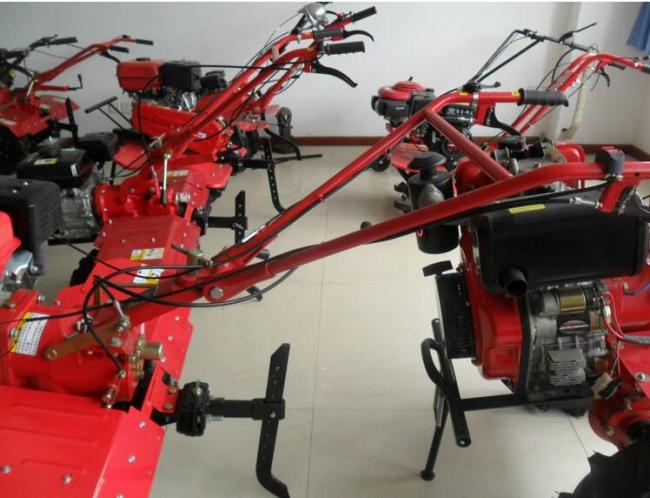

9HP Diesel Rotary Cultivator Tractor Tillers and Cultivators for Paddy and Dry Fields
Price:
negotiable
MOQ:
1 set
Delivery Time:
10-15 working days after payment
Brand:
Laurel
Product Description
9HP Diesel Rotary Cultivator for Paddy and Dry Fields Air-cooled Gear Transimmision
Description:
1.consume diesel
2.6.3kw,9HP
3.CE.ISO9001
4.for farmland tillage,,lightening ridging,dicthing.
Features as follows:
1.They are economical ,efficient and practical .
2.They are compact ,light,flexible and safe to operate .
3.They have extensive functions .By changing relative parts ,they can complete various agricultural operations ,such as cultivation ,weeding ,fertilization ,irrigation and ditching .
Model No.
| LM1000E | LM1100A | LM1100B/E | ||
| Tilling scope (mm) | 800-1000 | 800-1100 | 800-1100 | |
| Tilling depth (mm) | 150-300 | 150-300 | 150-300 | |
| Transmission type | Gear | Gear | Gear | |
| Transmission oil (L) | 1.0L | 1.1 | 1.1 | |
| Transmission Material | Aluminum + Cast iron | Aluminum + Cast iron | Aluminum + Cast iron | |
| Gear Shifting | 0,1,2,3,-1 | 0,1,2,-1 | 0,1,2,-1 | |
| Diesel Engine | ||||
| Engine model | 176F | 178F | 186F | |
| Engine Type | Single-cylinder, Air-cooled, Diesel Engine | |||
| Displacement (cc) | 308 | 296 | 406 | |
| Bore×Stroke(mm) | 76x68 | 78x62 | 86x70 | |
| Horse Power (HP) | 7 | 5.5 | 9 | |
| Max power output(HP/rpm) | 5.15(7)/3000 | 4.0(5.5)/3600 | 6.3(9.0)/3600 | |
| Starter | Manual start/electric start | |||
| Max torque(N•m/rpm) | / | 4.4kw/3600 | 6.6kw/3600 | |
| Fuel tank capacity (L) | 4 | 3.5 | 5.5 | |
| Oil capacity (L) | 0.9 | 1.1 | 1.65 | |
| Packing Details | ||||
| Carton Dimension(mm) | 800x540x800 | 1060x560x900 | 1060x560x900 | |
| N/G•W(kg) | 93/104 | 115/135 | 115/135 | |
| Loading (20'/40'HQ)pc | 56/180 | 66/132 | 66/132 | |
