Single cylinder Ai cooled Diesel Engine Agricultural Machinery And Equipment 9hp Gear Transmission
Price:
negotiable
MOQ:
1 set
Delivery Time:
10-15 working days after payment
Brand:
Laurel
Product Description

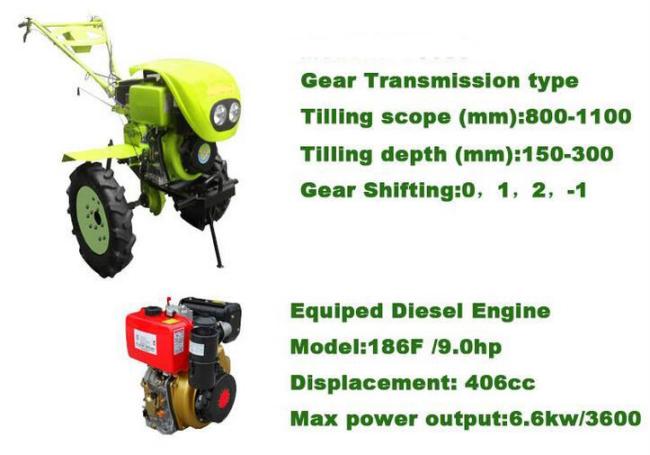

Rotary Tiller with Single-cylinder Air-cooled Diesel Engine 9hp Gear Transmission
Specifications:
Transimisson Type:Gear
Transimission Material:Alluminum +Iron
Engine Type: Diesel engine 186F
Horse power of engine :9.0hp
Technical Data :
| Model No. | LM1000D | LM1000E | LM1100A | LM1150 | |
| Tilling | |||||
| Tilling scope (mm) | 800-1000 | 800-1000 | 800-1100 | 800-1100 | |
| Tilling depth (mm) | 150-300 | 150-300 | 150-300 | 150-300 | |
| Transmission type | Gear | Gear | Gear | Gear | |
| Transmission oil (L) | 1.0L | 1.0L | 1.1 | 1.1 | |
| Transmission Material | Aluminum + Cast iron | Aluminum + Cast iron | Aluminum + Cast iron | Aluminum + Cast iron | |
| Gear Shifting | 0,1,2,3,-1 | 0,1,2,3,-1 | 0,1,2,-1 | 0,1,2,-1 | |
| Diesel Engine | |||||
| Engine model | 173F | 176F | 178F | 186F | |
| Engine Type | Single-cylinder, Air-cooled, Diesel Engine | ||||
| Displacement (cc) | 284 | 308 | 296 | 406 | |
| Bore×Stroke(mm) | 73 x68 | 76x68 | 78x62 | 86x70 | |
| Max power output(HP/rpm) | 4.41(6)/3000 | 5.15(7)/3000 | 4.4kw/3600 | 6.6kw/3600 | |
| Max torque(N•m/rpm) | / | / | / | / | |
| Fuel tank capacity (L) | 4 | 4 | 3.5 | 5.5 | |
| Oil capacity (L) | 0.9 | 0.9 | 1.1 | 1.65 | |
| Packing Details | |||||
| Carton Dimension(mm) | 800x540x800 | 800x540x800 | 1060x560x900 | 1060x560x900 | |
| N/G•W(kg) | 93/401 | 93/104 | 115/135 | 115/135 | |
| Loading (20'/40'HQ)pc | 56/180 | 56/180 | 66/132 |
66/132 |
|
Details:
