Hydraulic Pump Warehouse Material Handling Equipment Manual Forklift Jack Pallet Truck
Hydraulic Pump Manual Forklift Jack Pallet Truck with Weight Scale , 2 - 3.5 Ton
Product Features:
1.Color : red/yellow /blue/green/black etc, as per customer request
2.Capacity: 2000kg
3. Fork Width: 520/550/685mm
4. Fork Length: 1150/1220mm
5.Packing: 2pcs/pallet, pallet size 210*70*70cm

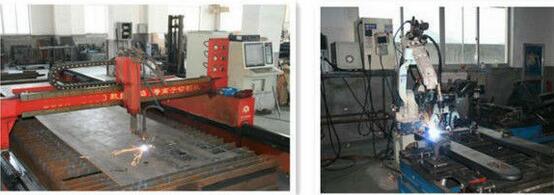

6. Advanced Robot welding ensure high strength, good finish, no bubble in the welding.
Product Details:
1) High reliability, suitable for a variety of environments. It can be used for 3 ~ 5 years under normal maintenance.
2) The first design of forging&casting integral pump, which prevents any loosening and leakage.
3) High-strength alloy steel carefully crafted, increased loading capacity.
4) Set the active safety valve to prevent overloading of operation.
Product Data:
| Model | LSC | |||
| Load capacity/rated load | Q(kg) | 2000 | 3000 | 3500 |
| Net weight | kg | 70-80 | 70-80 | 90-100 |
| Tyre size,front | mm | Φ180*50 | Φ180*50 | Φ180*50 |
| Tyre size rear | mm | Φ80*70/Φ74*70 | Φ80*70/Φ74*70 | Φ80*70/Φ74*70 |
| Lifting height | h 3(mm) | 200/190 | 200/190 | 200/190 |
| Lowered height | h 13(mm) | 85/76 | 85/76 | 85/76 |
| Overall length | l 1(mm) | 1534/1604 | 1534/1604 | 1534/1604 |
| Fork dimensions | s/e/l | 54/160/1150 | 54/160/1150 | 54/160/1150 |
| Distance between fork-arms | b 5(mm) | 520/550/685 | 520/550/685 | 520/550/685 |
| Turning radius | Wa (mm) | 1249/1319 | 1249/1319 | 1249/1319 |
FAQ
Q: How do you control the quality?
We have the inspect team to control the quality problem.
From material to finished products, each step, our QC to inspect it.
For each order, we will test and have the record,test certificate available.
Q: What is your MOQ requirement?
Different products have different MOQ requirement.Please contact with us for details.
Q: Do you have the certificate?
We have GS and TUV certificate.
Q:Can we get the samples?
Free samples are available,but clients are expected to pay for the courier cost.
Product Descriptions:
1. with manual slow down of oil pump control valve
2. 3 gear adjustable hand lever
3. adjustable push rod to control the lowest height of fork
4. arc-shaped front end to facilitate the load and unload cargo
5. ”C”structure fork ,heavy load bearing and firm
6. lubricating oil in every links of the equipment
7. Battery: DC12V,5.0AH

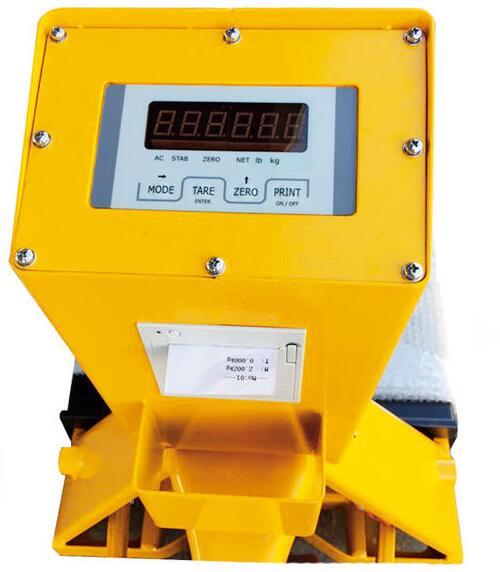

Features:
1. Mobile pallet truck with scale combined two major functions for pallet truck/scale,allows you to weigh cargo what you want,where you want and when you want.Power supply with rechargeable battery or with 88~264V AC input.
2. Keypad and automatic tare functions.
3. 1.2inches,super-large and bright LED display in solid state to be strike-free.
4. Available in pounds or kilograms.
5. A/D velocity:27/s,a faster speed of weighing,more correct.
6. Various functions:with extended functions as weight-checking,counting,ect.,to satisfy different needs of customers.
7. Conforms to EU's ROHS standard.
