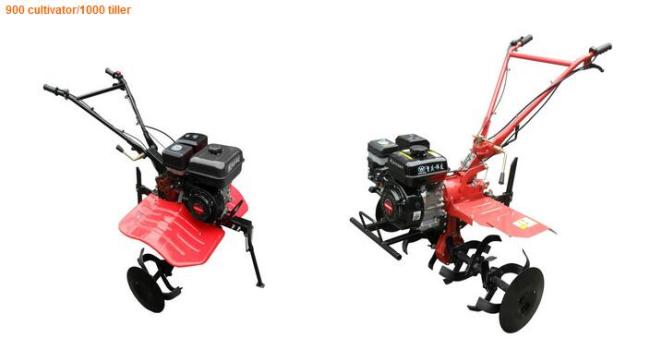

4HP - 9HP Gasoline Tractor Tillers And Cultivators For Corn / Soybean / Beet
4HP - 9HP Gasoline Tiller Cultivators for Cultivating in The Field of Corn , Soybean and Beet
1.pretrol rotary tiller
2.accept trial order
3.factory in Xiamen
4.engine power:4HP,6HP,7HP,10HP
The machine is suitable for cultivating in the field of corn, soybean and beet, etc. it can be used for cultivating, furrowing, ridging and deep loosening.
*It can be widely meet the hills,mountains,greenhouses,orchards,paddy fields,such as a variety of different geogrophical agronomic needs.
*With related tool,dry land rototiller,paddy field rototiller,pumping.
*Transportation,threshing,ditching,spray pesticide,power,irrigation.
*Easy operate,light weight ,multi-function.
Specifications:
| LM360 | LM400 | LM500 | LM900 | LM1000C | LM1100C | ||
| Tilling | |||||||
| Tilling scope (mm) | 360 | 550 | 500-1000 | 800-1200 | 800-1000 | 800-1100 | |
| Tilling depth (mm) | 200 | 150-250 | 150-250 | 150-300 | 150-300 | 150-300 | |
| Transmission type | Belt | Gear | Belt | Belt | Gear | Gear | |
| Transmission oil (L) | 0.2L | 0.6 | 0.95L | 1.1L | 1.0L | 1.1L | |
| Transmission Material | Iron plate | aluminum | aluminum | Cast iron | Aluminum + Cast iron | ||
| Gear Shifting | 0,1 | 0,1 | 0,1,2,-1 | 0,1,2,-1 | 0,1,2,3,-1 | 0,1,2,-1 | |
| Tilling blade | 4-2 blades | 3-4 blade | 3-4 blade | 3-4 blade | 3-4 blade | 4-4 blade | |
| Gasoline Engine | |||||||
| Engine model | LE1P70FV | LE1P70FV | LE170F | ||||
| Engine Type | Vertical shaft ,4 stroke, single cylinder,air-cooled |
Horizontal shaft ,4 stroke, single cylinder,air-cooled |
|||||
| Displacement (cc) | 173cc | 173 | 212 | 212 | 212 | 212 | |
| Bore×Stroke(mm) | 70x45 | 70x45 | 70x55 | 70x55 | 70x55 | 70x55 | |
| Max power output(HP/rpm) | 4.3kw(6.0HP)/3600 | 4.3kw(6.0HP)/3600 | 7.0/3600 | 7.0/3600 | 7.0/3600 | 7.0/3600 | |
| Max torque(N•m/rpm) | 9.0N.m/3600rpm | 9.0N.m/3600rpm | 11.5/3000 | 11.5/3000 | 11.5/3000 | 11.5/3000 | |
| Starting type | Manual start | Manual start/electric start | |||||
| Fuel tank capacity (L) | 1.7 | 1.7 | 3.6 | 6 | 6 | 6 | |
| Oil capacity (L) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |
| Packing Details | |||||||
| Carton Dimension(mm) | 700x390x700 | 680x460x710 | 880x460x840 | 1060x560x895 | |||
| N/G•W(kg) | 34/36 | 34/36 | 60/74 | 70/85 | 105/12 | ||
Our Advantages:
1. Rich experience working with Famous brands.
2. Always delivery on time,never delay.
3. Follow"Customers first",problems always be solved at first time.
4. Insist on quality best rules,all of our products All of our products have passed CE and European standards.
