Garden Farm Machine Water - cooled 8 HP - 18HP Hand Walking Agricultural Tractor

Price Negotiable
Price: negotiable
MOQ: 1 set
Delivery Time: 5-15 working days according to your quantity
Brand: Laurel
Product Description

Gardon Farm Machine Water - cooled 8HP to 18HP Hand Walking Agricultural Tractor





Product Advantages:
The machine widely used in the farm and help a lot to farmers.
Light weight, small size, high power, reliable performance, easy to operate,loveed by domestic and foreign customers, products sell well in domestic and Southeast Asia, Africa, South America and other countries and regions.



Product Type :
1. The tractor is featured by its simple and compact structure, good reliability, long service life,
easy operation,ample output,light weight and good gross-country ability.

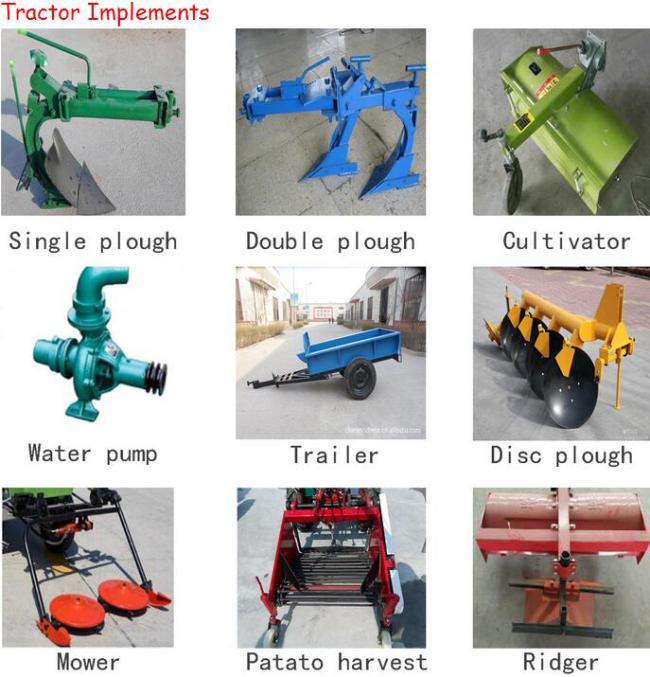

2.Tractor can be used for ploughing, rototilling harrowing in paddy fields,harvesting,drilling,
ditching,and transportation if suitable farm implements or accessories are attached.
3.Tractor can also be extensively used as a atationary power source for small scale drainage
and irrigation,sprinkling,grain threshing, cotton ginning.




Technical Specifications:



Model LM-8HP 10HP 12HP 15HP 18 HP
Overall Dimensions:(L×W×H) 2090x840x1304mm
Wheel tread 570,630,690,750,810mm
Tyres Front 6.00-12
Rear 4.00-8
Skid Wheels 2 Nos. 40Kg
Ground clearance 210mm
Working weight (with rotary tiller) 480 kg
Speed (km/hr) Forward 1.39, 2.47, 4.15, 5.14, 9.12, 15.30
Reverse 1.10, 4.10
Rotary tiller Model:1GL-60
Whole weight: 118 kg
Width 600 mm
Transmission type: chain drive
Turning Speed: Low:199, High:250
Number of blades: 18 pieces
Engine Information
Model LE16N(M)
Type Single cylinder,4-stroke,horixontal,water-cooled,diesel
Cooling model Condenser (Radiator)
Rated power 10.29kw
Rated speed 2400rpm
Fuel efficiency ≤241.5gl/kw.hr
Net weight 450 kg
Packing Case dimensions 116×108×108cm
N.W/G.W 480/540 kg




Product Descriptions:
1. It's a multi-function machine which can be tilling, fertilizing, seeding, weeding, ditching etc by replace different implements.
2. Suitable for mountainous areas and small piece of land. It has reverse gear and instant stop protector, with the compact body operates smart, convenient and safe, it has been widely used in arid land, paddy field, greenhouse and fruit garden etc.
3. New type mini tiller is direct connection transmission mode, which reducing the power loss during transmission, make more power for tilling.
4. The Standard configuration: 1 pair rubber wheels and 1 pair rotavator knives, the working width of rotavator knives adjustable. It can also equip with weeding wheel.
