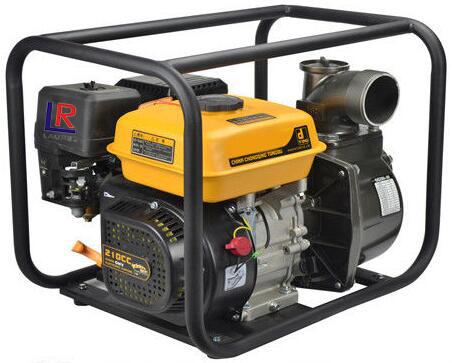

Air - Cooled Single Cylinder Gasoline Agriculture Water Pump With 4 - Stroke Engine
Air-cooled single cylinder gasoline Agriculture water pump with 4-stroke engine
Advantages:
1. Reliable Performance:
Reliable Performance is the major advantage of products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.
2. Customer First:
We devote ourselves to develop products to meet customers' requirements .Our engineer develop and
design new products for customers.
3. Strict test process before ex-factory:
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
4. Low fuel consumption, easy maintenance
5.Our logo or OEM
Specifications:
| ENGINE | Model | LHM100-30 gasoline electric water pump |
| Engine model | HR190F | |
| Engine type | Air-cooled 4-stroke, OHV, 25°inclined single cylinder | |
| Bore×stroke mm | 90×66 | |
| Displacement ml | 420 | |
| Compression ratio | 8.5:1 | |
| Max power kW/rpm | 8.5/3600 | |
| Rated power kW/rpm | 8.2/3600 | |
| Max torque N.m/rpm | 26/3000 | |
| Ignition system | Transistorized magneto | |
| Starting system | Recoil/Electric | |
| Air cleaner | Foam element | |
| Oil capacity L | 1.1 | |
| Lowest fuel consumption g/(kw.h) | ≤374 | |
| Pump | pump form | 4'' self-priming electric water pump |
| pump kind | self-priming electric water pump | |
| diameter of outlet (mm) | 100 | |
| diameter of inlet (mm) | 100 | |
| max lift (m) | 30 | |
| max flow capacity (m3/h) | 96 | |
| max suction (m) | 7 | |
| demension (L*W*H) | 655*525*585 | |
| N.W/G.W (kg) | 49/50 |
Our Advantage gasoline water pump:
Each year you may receive extra reward according to the total amount of the order.
Varied terms of payment give you credit and more market share.
Professional engineers develop brandnew products, bring you more profit.
Quality guarantee ensure you become a respected built-to-last enterprise.
Experienced internal marketing team provides you ideal service.
Guarantee Service
1. professional value-added technical support
2. warm before-sales & after-sales service
3. warranty period of 24 months or 1200 operating hours for diesel pumps.
3. warranty period of 12 months or 1000 operating hours for gasoline pumps.
