120 - 170w DC 48V Agricultural Solar Water Pump With Stainless Steel Material
120-170w DC stainless steel material 48V agricultural solar water pump
Product Description:
solar agriculture water pump system for irrigation is an environmentally-friendly water supply solution. Solar pumps are fitted with a permanent magnet motor which enables the efficient use of energy from nature. The solar water pump system offers the perfect water supply solution in remote areas where water is scarce and the power supply is non-existent or unreliable.
The solar panels and wind turbines adapt to the characteristic weather profile of any given area. A battery backup system can store the extra energy generated and take over when the energy from nature is not available.
solar agriculture water pump system for irrigation is more than just a pump -it's a complete intelligent system. Thanks to its built-in electronics, the pump is compatible with both DC and AC power supply without requiring an external inverter.

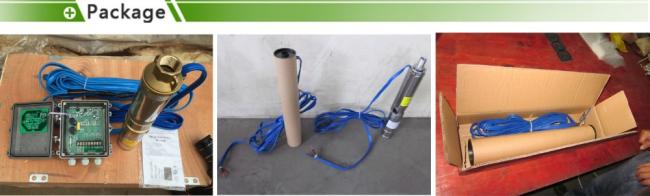

Packages Declaration:
1. All of our dc solar submersible pump are packed by the standards cartons complied with the exportation requirement;
2. the cartons more than 50 pcs of dc solar submersible pump can also packed by wooden pallet;
We have desinged the top-grade quality pump and keep upgrade our product all the time by our professional Engineers Team, we also cooperate with many scientific research institutions and universities to ensure the new products researchment.
MATERIAL OF PARTS
Impeller:stainless steel
Bearing:NSK
DC solar water pump data
| TYPE | input power | voltage | solar power | rated/max head | rated/max flow | height | weight | outlet/diameter | packing |
| W | V | W | m | T/H | mm | kg | mm | mm | |
| 3LP1.8-16-48-120 | 120 | DC48V | 180 | 12//16 | 0.5/1.8 | 420 | 4.6 | 32/75 | 120*120*520 |
| 3LP2-20-48-150 | 150 | DC48V | 225 | 15/20 | 0.7/2.0 | 420 | 4.9 | 32/75 | 120*120*520 |
| 3LP2.5-30-48-200 | 200 | DC48V | 300 | 20/30 | 0.7/2.5 | 440 | 4.6 | 32/75 | 120*120*520 |
| 3LP2.6-40-48-400 | 400 | DC48V | 600 | 30/40 | 1/2.6 | 440 | 4.9 | 32/75 | 120*120*520 |
| 3LP2.7-52-48-550 | 550 | DC48V | 750 | 40/52 | 1/2.7 | 510 | 5.3 | 32/75 | 120*120*550 |
| 3LP3-63-48-600 | 600 | DC48V | 900 | 48/63 | 1/3.0 | 510 | 5.3 | 32/75 | 120*120*550 |
| 3LP3-78-48-750 | 750 | DC48V | 1125 | 60/78 | 1/3.0 | 510 | 5.3 | 32/75 | 120*120*550 |
| 3LP3-22-48-300 | 300 | DC48V | 450 | 16//22 | 2/3.0 | 440 | 5.3 | 32/75 | 120*120*520 |
| 3LP4-33-48-550 | 550 | DC48V | 825 | 22/33 | 2/4.0 | 510 | 5.3 | 32/75 | 120*120*550 |
| 3LP5-40-48-750 | 750 | DC48V | 1125 | 33/40 | 2/5.0 | 510 | 5.8 | 32/75 | 150*150*550 |
AC solar water pump data
| TYPE | rated/max flow | rated/max head | INPUT power | SOLAR POWER | VOLTAGE | SPEED | HEIGHT | N.W. | OUTLET/DIAMETER |
| T/h | M | KW | KW | V | r/min | mm | kg | mm | |
| 3LP2-50-0.75 | 2/5 | 50/70 | 1 | 1.5 | 220V | 7200 | 430 | 5 | 32/75 |
| 3LP2-65-1.1 | 2/5 | 65/80 | 1.4 | 2.1 | 220V | 7200 | 440 | 5.1 | 32/75 |
| 3LP3-50-1.1 | 3/5 | 50/80 | 1.4 | 2.1 | 220V | 7200 | 440 | 5.1 | 32/75 |
| 3LP2-100-1.5 | 2/6 | 100/120 | 1.88 | 2.8 | 220V | 7200 | 460 | 5.3 | 32/75 |
| 3LP3-80-1.5 | 3/6 | 80/120 | 1.88 | 2.8 | 220V | 7200 | 460 | 5.3 | 32/75 |
| 3LP2-120-2.2 | 2/6 | 120/145 | 2.7 | 4 | 220/380V | 7200 | 530 | 6.5 | 32/75 |
| 3LP3-100-2.2 | 3/6 | 100/148 | 2.7 | 4 | 220/380V | 7200 | 530 | 6.5 | 32/75 |
| 3LP2-200-3 | 2/6 | 200/240 | 3.62 | 5.4 | 220/380V | 7200 | 630 | 7.5 | 32/75 |
| 3LP3-175-3 | 3/6 | 175/230 | 3.62 | 5.4 | 220/380V | 7200 | 630 | 7.5 | 32/75 |
