Replacement Dukane 41S30 Golden Valve Body Stainless Steel Outer Cover
Price:
negotiation
MOQ:
2 units
Delivery Time:
7 working days after received your payment
Brand:
Altrasonic
Product Description

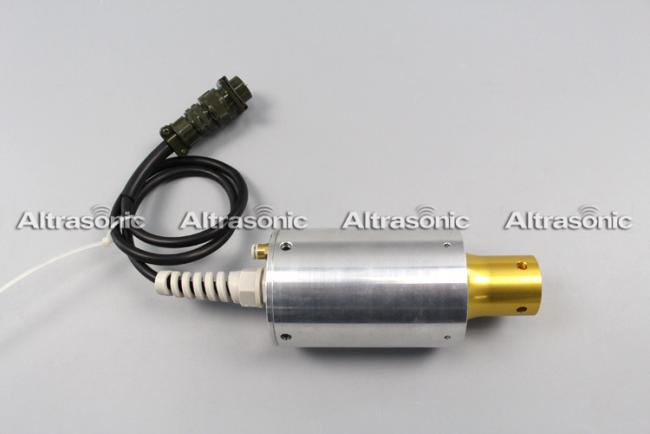

Replacement Dukane 41S30 Golden Valve Body Stainless Steel Outer Cover
Specifications:
|
Model
|
HS-D41S30
|
|
Frequency
|
20 khz
|
|
Output power
|
1000 watt - 3000 watt
|
|
Joint bolt
|
1/2-UNF
|
|
Ceramic disc Diameter
|
50 mm
|
|
Quantity of Ceramic discs
|
4 pcs
|
|
Capacitance
|
11000 pf
|
|
Amplitude
|
20 um
|
|
Application
|
welding machine
|
Description:
The 20Khz high power Ultrasonic Welding Transducer , replacement converter for Dukane 41S30 is applied to Dukane type ultrasonic welding machine.
Replacement Item:
|
Item No
|
Connect Screw (Size)
|
Ceramic diameter
(mm) |
Qty of ceramic
(PC) |
Frequency(khz)
|
Resistance(Ω)
|
Color of ceramic
|
Capacitance
|
Input Power
(W) |
|
Branson CJ20
|
1/2-20UNF
|
50
|
6
|
19.90
|
10
|
Yellow
|
20000
|
3300
|
|
Branson 502
|
1/2-20UNF
|
50
|
6
|
19.90
|
10
|
Yellow
|
20000
|
3300
|
|
Branson 402
|
M8*1.25
|
25
|
4
|
39.60
|
10
|
Yellow
|
4200
|
800
|
|
Branson 4TH
|
M8*1.25
|
25
|
4
|
39.90
|
10
|
Yellow
|
4200
|
800
|
|
Branson 902
|
1/2-20UNF
|
40
|
4
|
19.85
|
10
|
Yellow
|
8000
|
1100
|
|
Branson 922J
|
1/2-20UNF
|
50
|
6
|
19.90
|
10
|
Yellow
|
20000
|
2200
|
|
Dukane 40K
|
M8*1.25
|
35
|
2
|
39.80
|
5
|
Gray
|
3000
|
800
|
|
Dukane 20K
|
1/2-20UNF
|
50
|
2
|
19.50
|
10
|
Yellow
|
11000
|
2000
|
|
Dukane 110-3122
|
1/2-20UNF
|
50
|
4
|
19.50
|
10
|
Yellow
|
11000
|
2000
|
|
Dukane 110-3168
|
1/2-20UNF
|
45
|
2
|
19.50
|
10
|
Yellow
|
4000
|
800
|
|
Rinco 35K
|
M8*1.25
|
25
|
2
|
34.80
|
50
|
Yellow
|
2000
|
900
|
|
Rinco 20K
|
M16*2
|
50
|
2
|
19.90
|
50
|
Yellow
|
5000
|
3000
|
|
Telsonic 35K
|
M8*1.25
|
25
|
4
|
35.00
|
5
|
Yellow
|
4000
|
1200
|
|
Telsonic 20K
|
1/2-20UNF
|
50
|
4
|
20.00
|
3
|
Yellow
|
10000
|
2500
|
Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Competitive Advantages:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
Product display:
