40hkz 100W Portable Ultrasonic Cutter for Non-woven Fabric and Milk Carton Cutting
Price:
Negotiation
MOQ:
1 Unit
Delivery Time:
7 workdays afer receiving the payment
Brand:
Altrasonic
Product Description
40hkz 100W Portable Ultrasonic Cutter for Non-woven Fabric and Milk Carton Cutting
Specification:
|
Model
|
HS-C40
|
|
Frequency
|
40KHZ
|
|
Output Power
|
100W
|
|

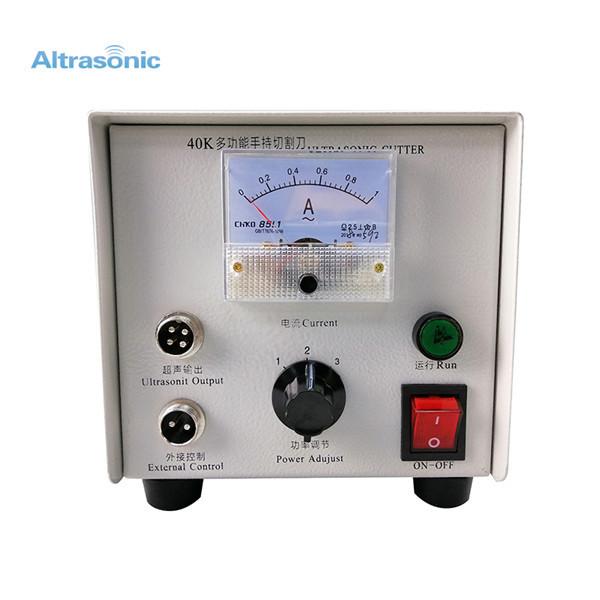

Generator
|
Analog generator, 155 x 265 x 170mm
|
|

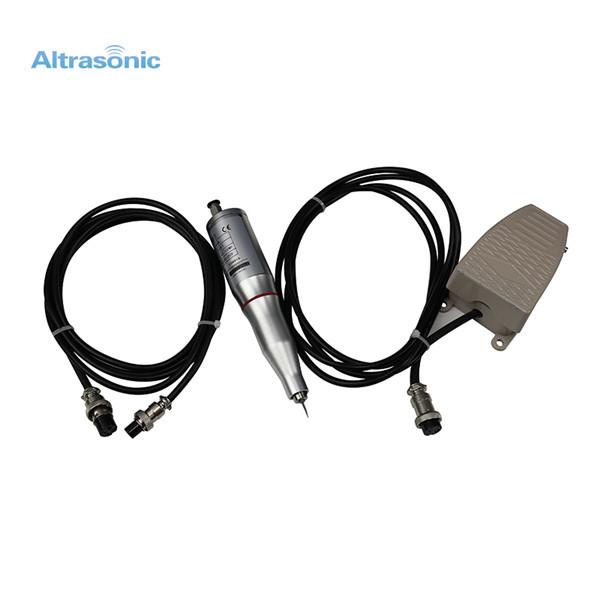

Handle
|
Φ32×170
|
|
Size of cutter
|
Blade replaceable
|
|
Length of cable
|
|
|
Outer skin
|
Aluminum
|
|
Weight
|
8KG
|
|
Voltage
|
220V / 110V
|
|
Accessory
|
Foot switch1pc；Cut blade 25pcs；1.5mm special hex wrench 1pc；
Screw M3×4L 2pcs |
|
Material of cutter
|
titanium alloy, stainless steel
|
Description:
Ultrasonic Cutters are designed to cut textiles thermoplastic films, rubber woven and non-woven fabrics. Ultrasonic Cutting Systems can be operated as hand-held units or incorporated into automated machinery Solid, one-piece construction of horn blade virtually eliminates breakage and energy loss. Minimal blade flexure yields straighter cuts without having to support the blade. Available in 20, 30 or 40 kHz frequencies.
Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting,ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.
The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.
The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.
Application:
- Natural fibers
- Synthetic fiber
- Thin plastic products(Such as plastic film, cell phone case)
- All types of paper, bottom film
- Rubber, silicone
- Repair of printed circuit board copper foil
- ABS,PP,PE … other organic plastic sheet less than 2mm
- Various types of synthetic fabrics
Advantages:
1. Cut fast
2. Accurate
3. Smooth edge of materials
The following table presents the company tests for different material thickness, the recommended cutting speed data.
|
Cutting Material
|
Thickness
|
Cutting speed
|
|
ABS/PE
|
2mm
|
4mm/s
|
|
m
|
2mm/s
|
|
|
4mm
|
1mm/s
|
|
|
PVC
|
2mm
|
15mm/s
|
|
Asian gram force
|
2mm
|
m/s
|
|
Non-woven fabric
|
m
|
2mm/s
|
|
Chloroprene rubber
|
5mm
|
Easy to cut
|
|
Corrugated paper
|
8mm
|
Easy to cut
|
|
Plywood
|
2.5mm
|
Easy to cut
|
|
Glass fiber resin
|
1.5mm
|
Easy to cut
|
|
Thick cardboard
|
1.5mm
|
Easy to cut
|
|
Linen
|
2mm
|
Easy to cut
|
|
Urethane
|
m
|
Easy to cut
|
|
Nylon/PP
|
m
|
Easy to cut
|
Product display:
