40KHZ Ultrasonic Loom Cutter Slitting Process Cut+ Seal Hand Held or Rack-mounted

Prodcut Specifications:

* Type: 40Khz

* Edge width: 10/20mm

* Cutting speed:According to the material thickness, composition, warp and weft density and loom operating speed for synchronous adjustment.

* Installation method: the rear of the host has diam 30mm perforation for fixing to the poles of the loom( parallel to the width of the width of the fabric)

* Cutting blade:Alloy roller knife, can also be customized ceramic blade

* Generator: 320*320*120mm(L*W*H) weight: 6.3kg

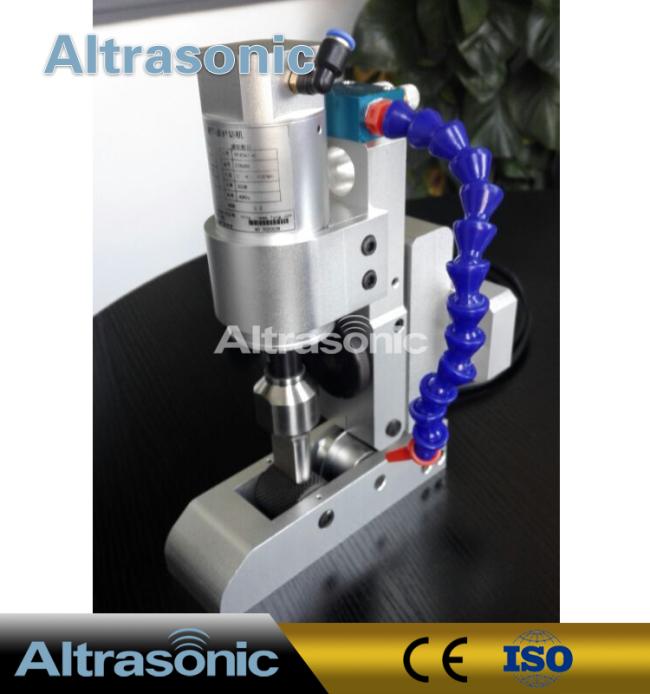

* Vibration parts 210*70*260mm(L*W*H) weight: 4kg

Prodcut Description

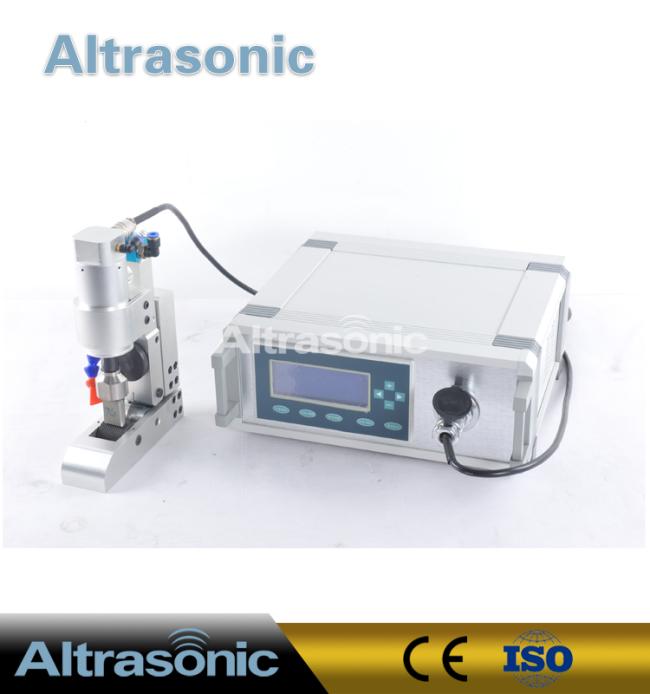

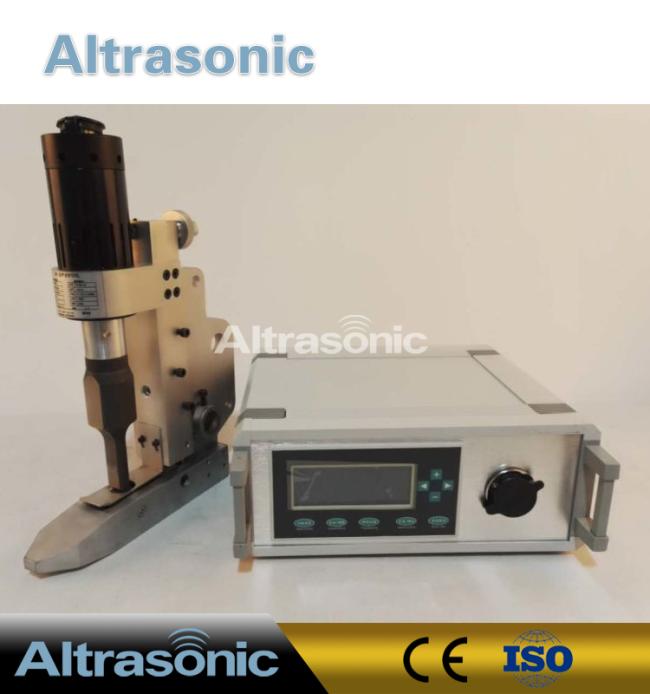

* Ultrasonic cutting edge sealing machine consists of the ultrasonic generator(drive power) and ultrasonic host (cutting) two parts.

* Through the Ultrasonic high-frequency vibration, first adhesive fabric, and then cut the fabric and cut edge.

* To be installed on machines or lines, cutting the fabric with no scattered side, no hardening, smooth and beautiful, operation safe and reliable.

* Mainly used in chemical fiber textile, geotextile, woven cloth, plastic film and non-woven processing and weaving industry, woven fabric containing polypropylene, polypropylene thermoplastic material composition.

Principles:

With ultrasonic sealing, the heat required for melting is only generated inside the thermoplastic sealing layer. Ultrasonic package sealing occurs when high frequency (ultrasonic) mechanical energy is transferred into two or more layers of thermoplastic materials. A strong, reliable molecular bond is formed between the layers. Nearly all packaging materials and laminates, with a thermoplastic sealing layer or coating, are suitable for the ultrasonic sealing (welding) process. Both hermetic and peelable seals can be achieved with ultrasonic sealing systems.

Advantages of Ultrasonic Sealing and Cutting:

* Cutting the fabric with no scattered side, mo hardening, smooth and beautiful.

* Can be hand held or installed om machines and line, easy operation.

* Power adjustable, can connect with the client’s control system.

* Safe separation and sealing of the workpiece during operation.

* Beautiful and closed cutting edge.

* Special fabric cutting blade, cutting high quality, easy to replace.

* Completely replace the resistance heat knife cutting process, energy saving and environment protection.

Applications:

• Pouch sealing
• Re-sealable zipper closures
• Form-fill seal bags - vertical and horizontal configurations
• Cartons
• Pour spouts on gable top cartons
• Blister packs
• Clam shell packs
• Cups/trays
• Tube seal
• Fitments on pouches
