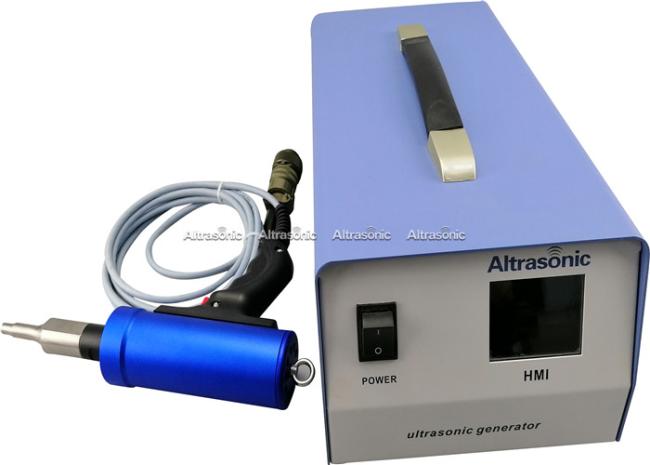

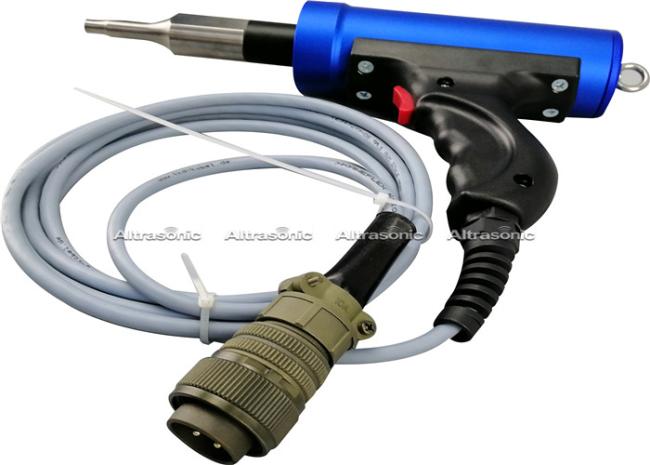

35Khz 1000 Watt Ultrasonic Spot Welding Machine For Automotive Parts Assemble Technology
35Khz 1000Watt Ultrasonic Spot Welding Machine for Automotive Parts Assemble Technology
Description:
Ultrasonic welding is the best choice for your application when you need to connect two molded plastic parts. Ultrasonic welding is an effective means of merging thermoplastic components with energy from high frequency, low amplitude acoustic vibrations. Unlike a friction or vibration welding process, one of the two components is moved to create friction, and ultrasonic welding produces friction from acoustic energy that generates heat and joins the two components together at the molecular level. The whole process can take only a few seconds.
Specification:
| Item No. | HSGW20 | HSGW30 | HSGW35 | HSGW40 | HSGW50 |
| Frequency | 20kHz | 30kHz | 35kHz | 40kHz | 50kHz |
| Power | 1000W | 1200W | 1000W | 500W | 300W-500W |
| Horn | ≤12mm | ≤10mm | ≤10mm | ≤10mm | ≤10mm |
| Housing Diameter | 44mm | 44mm | 44mm | 44mm | 44mm |
| Weight of Welder | 1.0kg | 1.0kg | 1.0kg | 1.0kg | 1.0kg |
Application:
• Airbag
• Convertibe top
• FVK Automotive
• Interior
• Lihgt and sun protection
• Tire Cord
Advantage:
• No fraying
• No burns on fabrics
• No emissions of toxic fumes
• No warm up waiting time
