42kw Piezoelectric Ultrasonic Welding Transducer For Sealing And Cutting
42kw Piezoelectric Ultrasonic Welding Transducer For Sealing And Cutting
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Selection instructions:
An ultrasonic transducer is an energy conversion device. Its function is to convert the input electrical power into mechanical power (ie, ultrasound) and then transfer it out. It consumes a small part of the power (less than 10%). Therefore, the most important issue when using an ultrasonic transducer is the matching with the input and output ends, followed by mechanical installation and matching dimensions. There are many types of ultrasonic machinery on the market, and customers must provide accurate and reliable indicators to ensure that the transducer products provided by the company can be well matched with your company's machines and play the best performance.
Specifications:
| Model | HS-3035-4D |
| Frequency | 35khz |
| Output power | 800watt |
| Joint bolt | M8 |
| Ceramic disc Diameter | 30 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 5~11nf |
| Amplitude | 6um |
| Application | Sealing and Cutting |
Main Features:
1. High efficiency: The conversion efficiency at the resonance frequency can obtain high electro-generated work, and the electro-acoustic conversion efficiency is as high as 90% or more.
2. Large amplitude: The vibrator has a high seismic velocity, which is more than 50% higher than that of a magnetostrictive transducer.
3. Heat resistance: The use of high-quality materials, good heat resistance, low resonance impedance, and low heat generation.
4. Strong structure: It is fastened with high quality standard steel bolts and has high reliability.
5. Electrical parameters: unique production technology, digital equipment processing and assembly, high parameter performance and good consistency
Competitive Advantage:
1. Stable parameters
2. Easy matching with ultrasonic power supply
3. Superior raw materials
4. Accept OEM cooperation

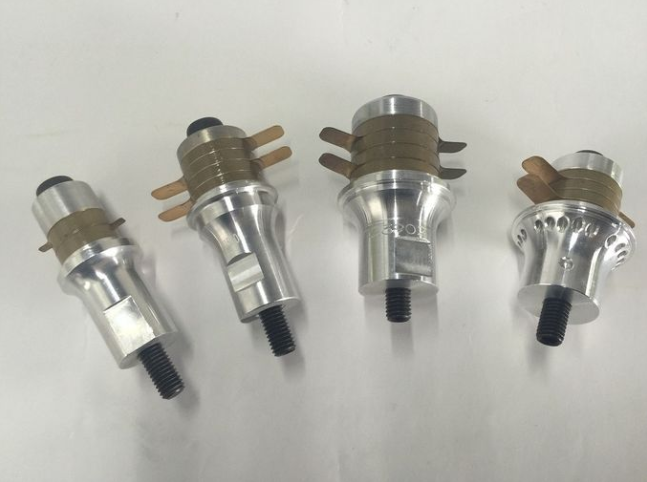

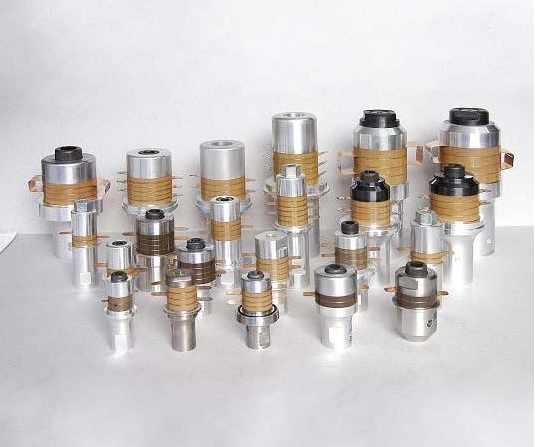

Detailed Images:
Certification:
