36V 250W Electric Mountain Bicycle , Electric Mountain Bike With Suspension
36V 250W Electric Mountain Bikes MTB Style 26 Inch Aluminum Frame
Quick Details
1. Motor power: 36V 250W complete wheel motor
2. Frame material: Aluminum alloy 6061
3. Lithium battery: 36V 10.4Ah Samsung cells
4. Certification: EN15194
5. Wheel size: 26”
6. Brake system: Disc brake for both wheels
7. Derailleur system: Shimano RD-TX55
8. Pedals assisted system: Yes. throttle can be optional
Product Descriptions
For this ,MTB electric bike, the key feature is to use magnesium alloy complete rim, make the whole bike looks cool and fashion. Not only this, but also with lightweight and durable performance. This design for American users, but sales well in Europe, like Italy and Bulgaria.
The front hub made with quick release style, and motor cable also with quick connector way, both offer convenient after sales service.
Components

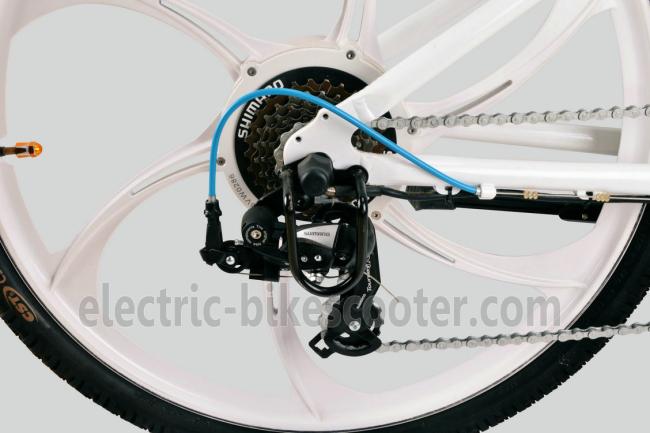

Zoom suspension, ZOOM disc brake, Shimano RD-TX55 derailleur, Kenda off road tire, KMC rust-proof chain, Velo mountain style saddle, magnesium alloy rim and quick released front hub, all this components make HP-E008 plus bike with the ultimate practical utility and unique style.
Specifications
|
Model number |
HP-E008 plus |
|
Motor |
36V 250W complete wheel motor |
|
Battery |
36V 10.4Ah lithium, SAMSUNG cells |
|
Charge time |
4-8h |
|
Charger |
110-240V, 36V 2A, plug can be customized |
|
Controller |
36V 14A |
|
Speed |
25Km/h |
|
Driving distance |
50-60km by PAS |
|
Weight |
24.5Kgs |
|
Packing dimension |
1700x250x780mm |
|
Panel/speedometer |
LED style |
|
Wheel |
26” |
|
Tire |
26”x1.95, KENDA off road tire |
|
Chain |
1/2*3/32*116L, KMC rust-proof |
|
Frame |
Aluminum alloy 6061 |
|
Fork |
26”, travel 100MM, 28.6*25.4*246L*102MM |
|
Shift lever |
Shimano 6 speed |
|
Rear derailleur |
Shimano RD-TX55 |
|
Front brake |
ZOOM Mechanical Disc Brake |
|
Rear brake |
ZOOM Mechanical Disc Brake |
|
Brake levers |
Aluminum |
|
Rims |
Magnesium alloy, 26”*1.75 |
|
Spokes |
-- |
|
Pedals |
Wellgo, with ball |
|
Chainwheel |
1/2*3/32*44T*170L |
|
Cranks |
Aluminum, 170L |
|
Freewheel |
14-28T, 6 level |
|
Handlebar |
ZOOM Aluminum, W620x2.0T |
|
Stem |
ZOOM Aluminum, adjustable |
|
Grip |
95/140MM |
|
Seat |
Velo |
|
Seat tube |
Aluminum with suspension, 27.2*300*2.0T |
|
Lamp |
LED for front |
|
Wheel base |
1170mm |
|
Min ground clearance |
110mm |
|
Saddle ground clearance |
Max:990mm; Min:830mm |
|
Handlebar ground clearance |
1020mm |
|
Licence requirement |
NO |
