Classic Urban Cruiser Ebike 26 Inch Wheel Aluminum EN15194
Classic City Cruiser Bicycle Electric Bike 26 Inch Wheel Aluminum EN15194
Quick Details
1. Motor power: 36V 250W BAFANG rear GEAR motor
2. Frame material: Aluminum alloy 6061
3. Lithium battery: 36V 10.4Ah Samsung cells
4. Certification: EN15194
5. Wheel size: 26"
6. Brake system: Disc brake for front wheel; Shimano V brake for rear wheel
7. Derailleur system: Shimano RD-TX55
8. Pedals assisted system: Yes
Product Descriptions
This electric city bike adopt Shimano out 6 derailleur , and 36V 250W BAFANG classic rear mounted motor, can give driver more help to meet various road condition.
Components
1. BAFANG rear Gear motor, China famous electric bike motor supplier.
2. Shimano TX rear derailleur.
3. Shimano V brake, high efficient brake system and easy to replace.
4. ZOOM fork, city trekking series, made with Spring pressure system, adjustable.
5. Velo seat, high end seat supplier from TAIWAN, in any case, the wider and more comfortable seat can provide more experiences for riders.
Specifications
|
Model number |
HP-E006 |
|
|
Motor |
BAFANG, 36V 250W rear GEAR motor |
|
|
Battery |
36V 10.4Ah lithium, SAMSUNG cells |
|
|
Charge time |
4-8h |
|
|
Charger |
110-240V, 36V 2A, plug can be customized |
|
|
Controller |
36V 14A |
|
|
Speed |
25Km/h |
|
|
Driving distance |
55-60km by PAS |
|
|
Weight |
24.5Kgs |
|
|
Packing dimension |
1700x250x780mm |
|
|
Panel/speedometer |
LED style |
|
|
Wheel |
26” |
|
|
Tire |
26”x1.75, KENDA on road tire |
|
|
Chain |
1/2*1/8*110L, KMC rust-proof |
|
|
Frame |
Aluminum alloy 6061 |
|
|
Fork |
26”, travel 100MM, 28.6*25.4*202L*100MM |
|
|
Shift lever |
Shimano 6 speed |
|
|
Rear derailleur |
Shimano RD-TX55 |
|
|
Front brake |
ZOOM Disc Brake |
|
|
Rear brake |
Shimano V Brake |
|
|
Brake levers |
Aluminum |
|
|
Rims |
Aluminum alloy,26”*1.75*36H*13G |
|
|
Spokes |
Front:13GX245/247; Rear:13GX243/242; |
|
|
Pedals |
Wellgo, with ball |
|
|
Chainwheel |
1/2*3/32*44T, aluminum |
|
|
Cranks |
Aluminum, 170L |
|
|
Freewheel |
14-28T |
|
|
Handlebar |
ZOOM Aluminum, W610x2.0T |
|
|
Stem |
ZOOM Aluminum |
|
|
Grip |
140MM |
|
|
Seat |
Velo, city classic bike |
|
|
Seat tube |
Aluminum with suspension, 27.2*300*2.0T |
|
|
Lamp |
LED for front, SPANNINGA |
|
|
Wheel base |
1160mm |
|
|
Min ground clearance |
110mm |
|
|
Saddle ground clearance |
Max:990mm; Min:790mm |
|
|
Handlebar ground clearance |
1140mm |
|
|
Licence requirement |
NO |
|

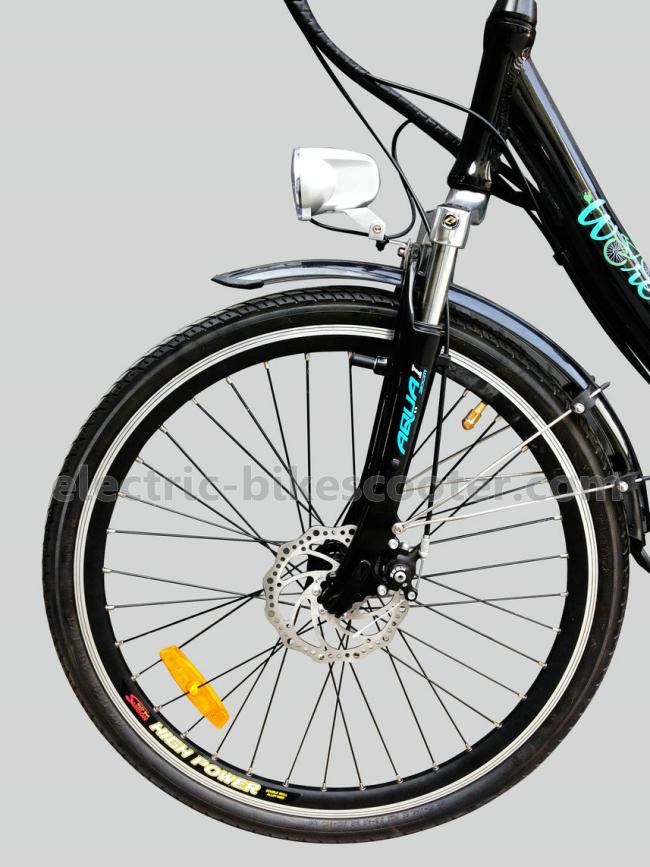

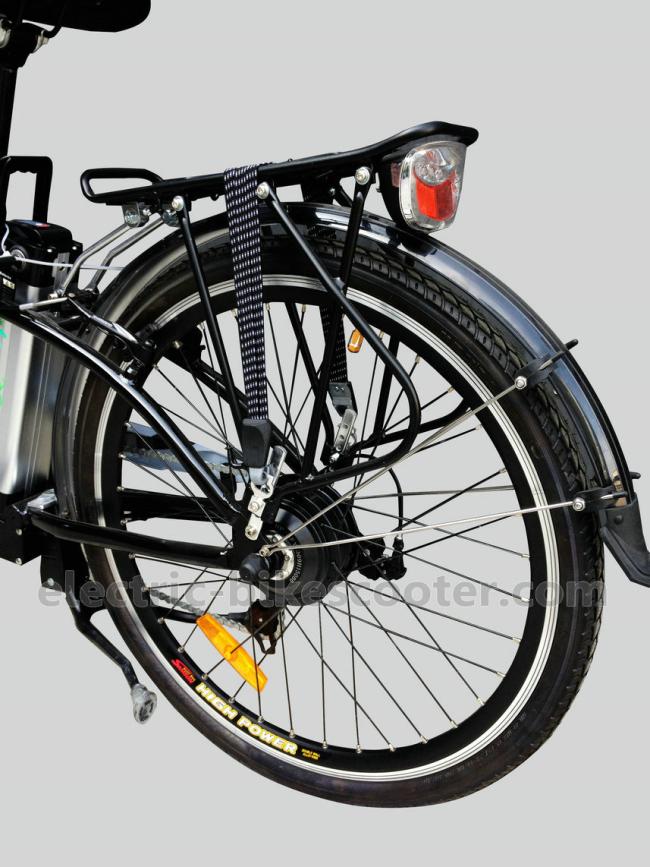

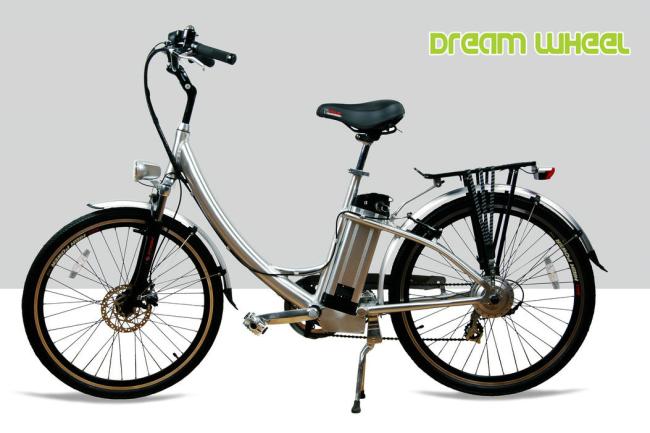

Pictures Show
