Aluminum Lightweight Foldable E Bike V Brake 36V 10Ah Battery

Price Negotiable

Price: USD385 to 465

MOQ: 2units

Delivery Time: 30days

Brand: DREAM WHEEL

Product Description

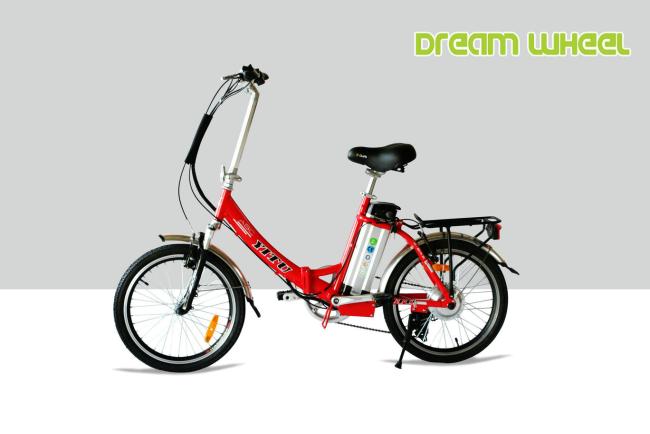

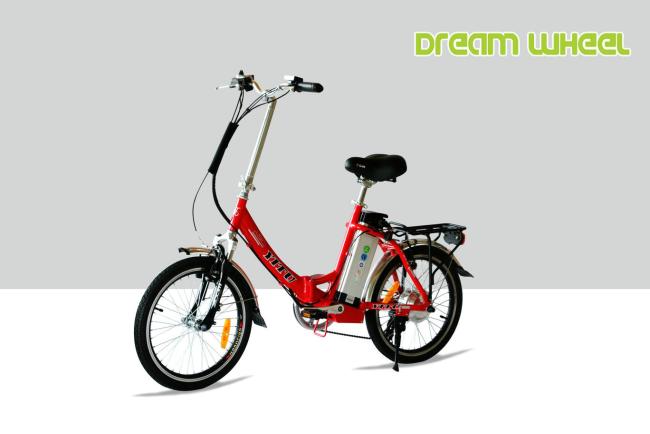

Aluminum Folding Electric Bike / Lightest Lithium Electric Folding Bicycle V Brake 36V Battery

Quick Details

1. Motor power: 36V 250W high speed rear motor

2. Frame material: Aluminum alloy 6061

3. Lithium battery: 36V 10Ah

4. Certification: EN15194 by TUV

5. Wheel size: 20”

6. Brake system: V brake for dual wheel

Product Descriptions

HP-E002 is one classic folding electric bike, but with cheap price. We install V brake for two wheels. 36 10Ah lithium battery , and Shimano 6 speed.

We provide two drive modes on this bike, Pedals Assistant System and Accelerating system.

Components

Specifications

Model number		HP-E052 LL
Motor		XIONGDA, 36V 250W high speed rear motor
Battery		36V 10Ah lithium
Charge time		4-8h
Charger		110-240V, 36V 2A, plug can be customized
Controller		36V 14A
Speed		25Km/h
Driving distance		55-65km by PAS
Weight		22.5Kgs
Packing dimension		860x460x715mm
Panel/speedometer		LED display
Wheel		20”
Tire		20”x2.125, KENDA with reflector cycle
Chain		1/23/32114L
Frame		Aluminum alloy 6061
Fork		20”, travel 100MM, 25.422.2153L*102MM
Shift lever		Shimano 6 speed
Rear derailleur		Shimano RD-TX55
Front brake		V Brake
Rear brake		V brake
Brake levers		Aluminum, 47PDD
Rims		Aluminum alloy,20”1.7536H*13G
Spokes		Front:13GX176/178; Rear:12GX123/125;
Pedals		Foldable
Chainwheel		1/23/3252T, aluminum
Cranks		Aluminum, 170L
Freewheel		14-28T
Handlebar		Aluminum, W560
Stem		--
Grip		140MM
Seat		Chifan
Seat tube		Aluminum, 27.23001.4T
Lamp		LED for front
Wheel base		1020mm
Min ground clearance		90mm
Saddle ground clearance		Max:990mm; Min:790mm
Handlebar ground clearance		1105mm
Licence requirement		NO
