25km/H Pedal Assist Electric Trike 48V 350W Brushless Motor
Pedal Assisted Electric Mobility Scooter Tricycle Cargo Trike 48V 350W
Quick Details
1. Motor power: 48V 350W brushless motor
2. Lead Acid Gel battery: 48V 20Ah
3. Tire size: 20"x1.75 for front; 16"x1.75 for rear
4. Brake system: V brake for front wheel; Drum brake for rear
5. Pedals assisted system and Throttle: YES
6. Max Speed: 25km/h (15.5mi/h)
7. Storage: front and rear big baskets
Product Descriptions
EBS718, is one simple cargo electric bike with 3 wheels. The speed is 25km/h, motor can make 250W, so it can meet e-bike regulation for Europe.
We install two baskets for this trike, it’s helpful to go shopping or take some goods.
Components
48V 20AH lead acid gel battery, can get you with 55km drive distance by PAS.
The rear big basket, can take more goods as you need.
Specifications
|
Model number |
EBS718 |
|
Motor |
48V 350W brushless motor |
|
Battery |
48V 20Ah lead acid gel battery |
|
Charge time |
4-8h |
|
Charger |
48V 2.5A, plug can be customized |
|
Controller |
48V 25A |
|
Speed |
25Km/h |
|
Speed mode |
Single |
|
Driving distance |
45-55km |
|
Weight |
65Kgs |
|
Packing dimension |
1600x550x850mm |
|
Package |
90% completed, one piece per carton |
|
Panel/speedometer |
-- |
|
Driving mode |
Pedals assist system and throttle |
|
Alarm system |
No |
|
Wheel |
20" & 16" |
|
Tire |
20"x1.75 for front wheel; 16"x1.75 for rear wheel |
|
Chain |
steel |
|
Frame |
Paint with electrophoretic coating |
|
Fork |
with suspension |
|
Shift lever |
-- |
|
Rear derailleur |
-- |
|
Front brake |
Shimano V Brake |
|
Rear brake |
Drum Brake |
|
Brake levers |
Aluminum |
|
Rims |
Aluminum alloy |
|
Spokes |
-- |
|
Pedals |
normal |
|
Chainwheel |
32T |
|
Cranks |
steel |
|
Freewheel |
16T |
|
Handlebar |
Steel |
|
Stem |
Steel |
|
Grip |
140MM |
|
Seat |
Normal |
|
Seat tube |
-- |
|
Headlamp |
LED |
|
Fenders |
Plastics |
|
Wheel base |
1170mm |
|
Min ground clearance |
120mm |
|
Saddle ground clearance |
Max:980mm; Min: 820mm |
|
Handlebar ground clearance |
950mm |
|
Licence requirement |
NO |

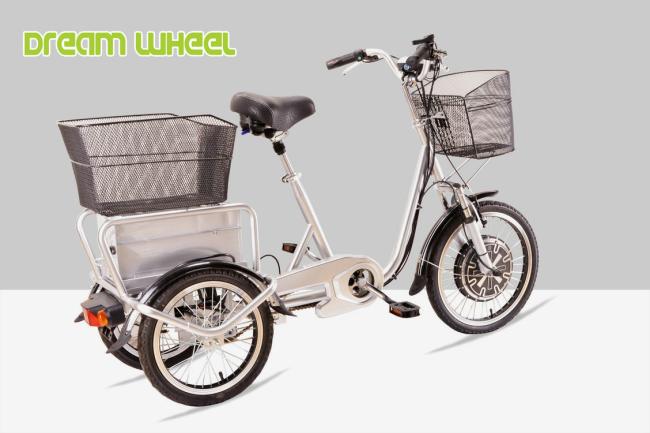

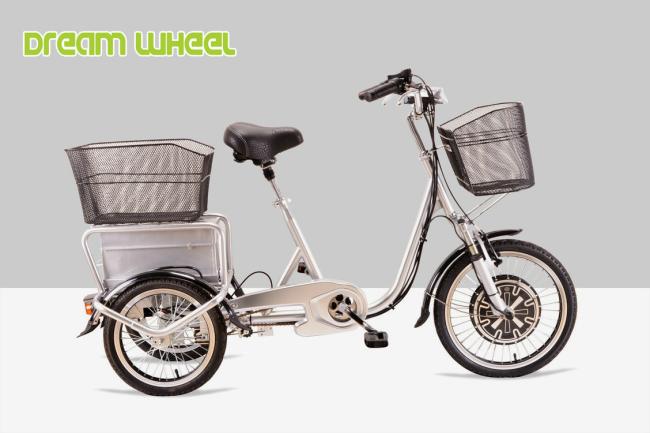

Pictures Show
