32KM/H 16 Inch Electric Motor Bike Scooter 48V 450W Dual Seat Digital Panel

Price Negotiable
Price: USD
MOQ: 2 units
Delivery Time: 25 days
Brand: DREAM WHEEL
Product Description

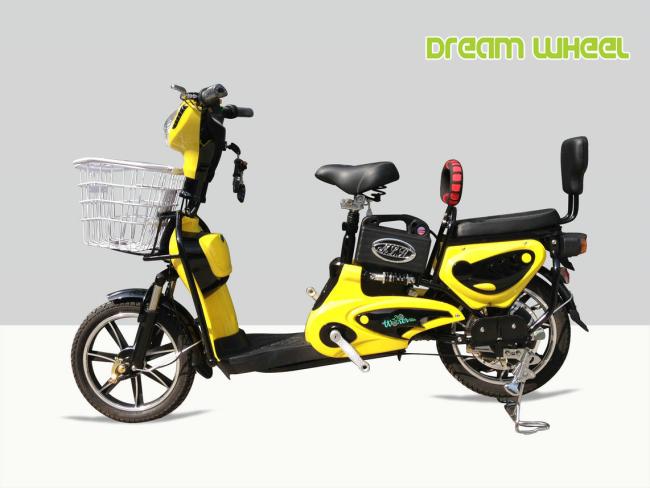

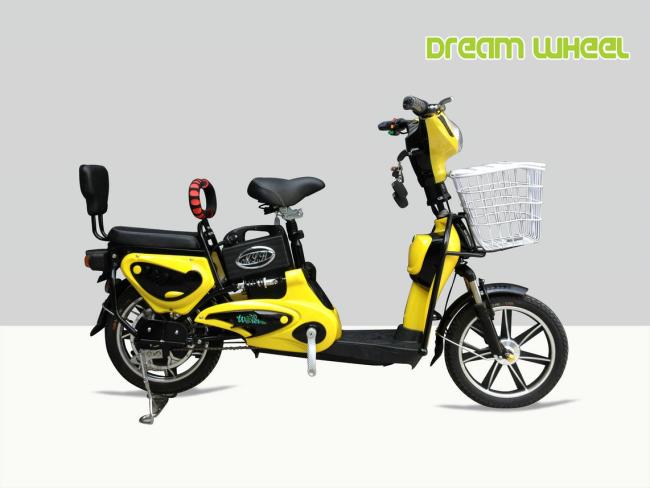

32km/h 48V 450 Watt Electric Bike Scooter With 16 Inch Wheels Dual Seat Digital Panel



Quick Details



1.  Motor power: 48V 450W brushless motor

2.  Frame material: steel

3.  Lead acid battery: 48V 12Ah

4.  Wheel size: 16”

5.  Brake system: drum brake for both wheels

6.  Headlamp: LED style

7.  Speed: 32KM/H





Product Descriptions

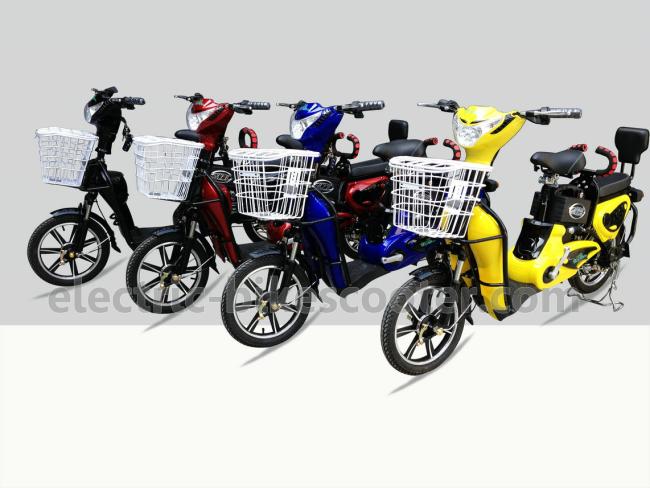

This bike colour, Blue, Black, Red and Yellow are available.  We sold this bike since 2012. This is one economic style e-bike. The best selling areas in South America, like Colombia, Chile and Brazil.



You can drive it like normal bicycle with pedals, and motor power 450W,  speed with 32km/h.  The whole bike keep good performance.  When you need uphill, use pedals assist system, will combine electricity power and human power to help you climb.



Yes, the model with two seats, the rear is for child.





Components



1.  Alarm system, it’s a useful burglar alarm. When you park your bike anywhere,  someone else touch or take your bike, it will make alarm at once.



2.  48V 12Ah battery, can make your travel distance over 40km by PAS.



3.  Double drum brake system, can ensure your safe drive.

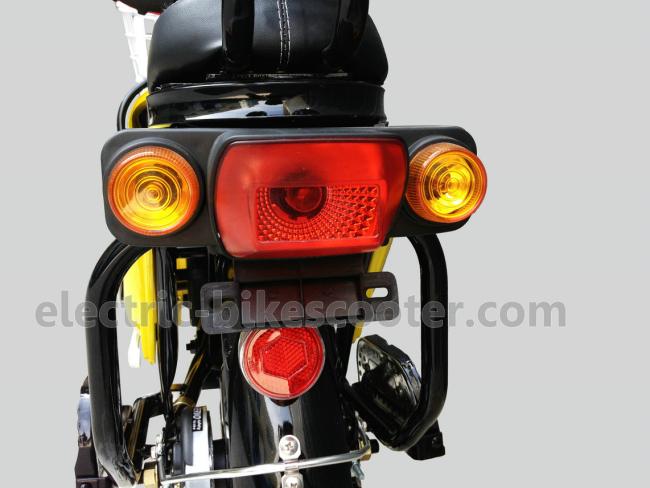

4.  LED headlamp, turning lights and brake light.



5.  Comfortable dual seats, for two persons design. The front seat height can be adjustable, to be suitable for different users.

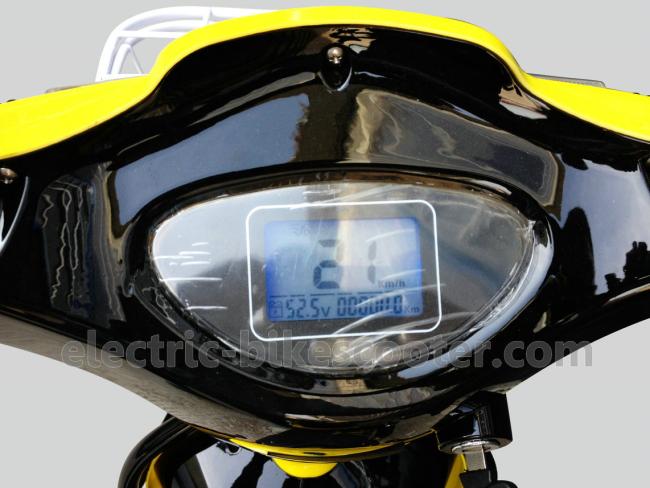

6.  Digital speedometer, can show the battery power, speed, voltage, travel distance information.



7.  Rear brake with lock motor function, to make your bike more security. When insert the key in brake hole, and turn right direction, the motor will be Locked, can not move any more.



Specifications



Model number

EBS538

Motor

48V 450W rear brushless motor

Battery

48V 12Ah lead acid battery, removable easily

Charge time

4-8h

Charger

 48V 1.8A, plug can be customized

Controller

 48V 18A

Speed

32Km/h

Driving distance

40-50km by PAS

Weight

48Kgs

Packing dimension

1580x330x900mm

Panel/speedometer

Digital style

Driving mode

 Pedals assist and Throttle

Wheel

16”

Tire

16”x2.5

Chain

Stainless

Frame

 Steel 16”

Fork

Steel with suspension, 16”

Shift lever

--

Rear derailleur

--

Front brake

Drum Brake

Rear brake

Drum Brake with lock motor function

Brake levers

 Aluminum

Rims

Aluminum alloy

Spokes

--

Pedals

Normal

Chainwheel

32T

Cranks

Steel

Freewheel

16T

Handlebar

 Steel, W610

Stem

--

Grip

136MM

Seat

dual

Seat tube

--

Headlamp

LED style

Fenders

Plastics

Wheel base

1100mm

Min ground clearance

110mm

Saddle ground clearance

Front:770mm; Rear:570mm

Handlebar ground clearance

1000mm

Licence requirement

NO



Pictures Show
