35km/h Electric Bicycle Scooter 60V 500W Disc Brake With LED Headlamp

Price Negotiable
Price: USD
MOQ: 2PCS
Delivery Time: 20 to 30days
Brand: DREAM WHEEL
Product Description

20Ah Electric Scooter 60V 500W Motor Disc Brake With LED Headlamp





Quick Details



1.  Motor power: 60V 500W brushless DC hub motor

2.  Lead Acid Gel battery: 60V 20Ah

3.  Tire size: 16"x3.0

4.  Brake system: Disc brake for both wheel

5.  Pedals assisted system and Throttle: YES

6.  Max Speed: 35km/h (21.7mi/h)



Product Descriptions



This model make with 60V 500W motor and 35km/h speed, sports style electric bike. We have sold in Italy, UK, and Colombia.  We can limited the speed  and power to meet some area requirements.



The base is only 25cm width, so it’s comfortable to use pedals assist.



Components



1.  Hydraulic disc brake system. This electric scooter installed disc brakes for both wheel.



2.  Headlamp and tail light, with LED style.



3.  Full suspension system.



4.  The 48V 20Ah battery, can be removable.



5.  The speedometer have new design, the same as motorcycle’s.



6.  Alarm system, to keep your bike security.



Key Features





Specifications



Model number

HP-TT-02

Motor

60V 500W rear brushless motor

Battery

60V 20Ah lead acid gel battery

Charge time

4-8h

Charger

 60V 2.5A, plug can be customized

Controller

 60V 25A

Speed

35Km/h

Speed mode

Single

Driving distance

50-60km

Weight

79Kgs

Packing dimension

1660x450x860mm

Package

85% completed, one piece per carton

Panel/speedometer

Normal

Driving mode

Pedals assist and throttle

Alarm system

Remote alarm

Wheel

16”

Tire

16"x3.0

Chain

stainless

Frame

Paint with electrophoretic coating

Fork

Hydraulic suspension

Shift lever

--

Rear derailleur

--

Front brake

Disc Brake

Rear brake

Disc Brake

Brake levers

 Aluminum

Rims

Aluminum alloy

Spokes

--

Pedals

normal

Chainwheel

28T

Cranks

steel

Freewheel

16T

Handlebar

 Steel

Stem

--

Grip

140MM

Seat

Lengthen, comfortable, for two persons

Seat tube

--

Headlamp

Normal style

Fenders

Plastics

Wheel base

1300mm

Min ground clearance

130mm

Saddle ground clearance

770mm

Handlebar ground clearance

980mm

Licence requirement

NO

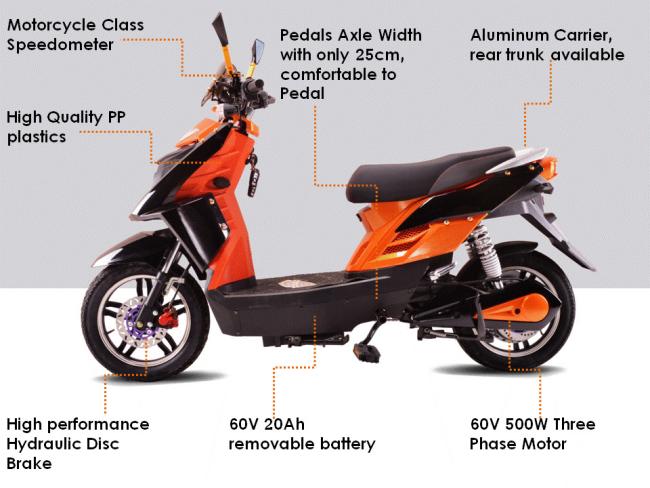

Pictures Show
