350 Watt Beach Cruiser Battery Powered Bike 36V 10Ah Pedals Assisted
28km / h 350 Watt Electric Beach Bike 36V 10Ah Lithium Battery Pedals Assisted
Quick Details
1. Motor power: 36V 350W rear Gear motor
2. Frame material: Aluminum alloy 6061
3. Lithium battery: 36V 10Ah
4. Wheel size: 26”
5. Brake system: Disc brake for both wheels
6. Derailleur system: Shimano 6 speed
7. Pedals assisted system and Throttle: Yes
Product Descriptions
EBS026 electric beach bike, we have improve with new cruiser handlebar. This handlebar will be more comfortable, whenever on beach or snow road.
We make two drive modes, Pedals assistant system and Accelerator system for the market except Europe. As EU not allow to drive with Accelerator.
Specifications
|
Model number |
EBS026-02 |
|
|
Motor |
BAFANG, 36V 350W rear GEAR motor |
|
|
Battery |
36V 10Ah lithium, SAMSUNG cells |
|
|
Charge time |
4-8h |
|
|
Charger |
110-240V, 48V 2.5A, plug can be customized |
|
|
Controller |
36V 18A |
|
|
Speed |
28Km/h |
|
|
Driving distance |
40-50km by PAS |
|
|
Weight |
27Kgs |
|
|
Packing dimension |
1730x320x780mm |
|
|
Panel/speedometer |
LCD display |
|
|
Wheel |
26” |
|
|
Tire |
26”x4.0, KENDA BEACH tire |
|
|
Chain |
1/2*3/32*136L, KMC rust-proof |
|
|
Frame |
Aluminum alloy 6061 |
|
|
Fork |
26”, aluminum with suspension |
|
|
Shift lever |
Shimano 6 speed |
|
|
Rear derailleur |
Shimano RD-TX55 |
|
|
Front brake |
ZOOM Mechanical Disc Brake |
|
|
Rear brake |
ZOOM Mechanical Disc Brake |
|
|
Brake levers |
Aluminum |
|
|
Rims |
Aluminum alloy,26”*4.0*36H*13G |
|
|
Spokes |
Front:13GX257/259; Rear:13GX217/219; |
|
|
Pedals |
Wellgo, with ball |
|
|
Chainwheel |
1/2*3/32*44T*170L |
|
|
Cranks |
Aluminum, 170L |
|
|
Freewheel |
14-28T, 6 level |
|
|
Handlebar |
ZOOM Aluminum, W620x2.0T |
|
|
Stem |
ZOOM Aluminum, adjustable |
|
|
Grip |
95/140MM |
|
|
Seat |
Velo |
|
|
Seat tube |
Aluminum with suspension, 27.2*300*1.2T |
|
|
Lamp |
LED for front |
|
|
Wheel base |
1340mm |
|
|
Min ground clearance |
110mm |
|
|
Saddle ground clearance |
Max:990mm; Min:830mm |
|
|
Handlebar ground clearance |
1020mm |
|
|
Licence requirement |
NO |
|
Components

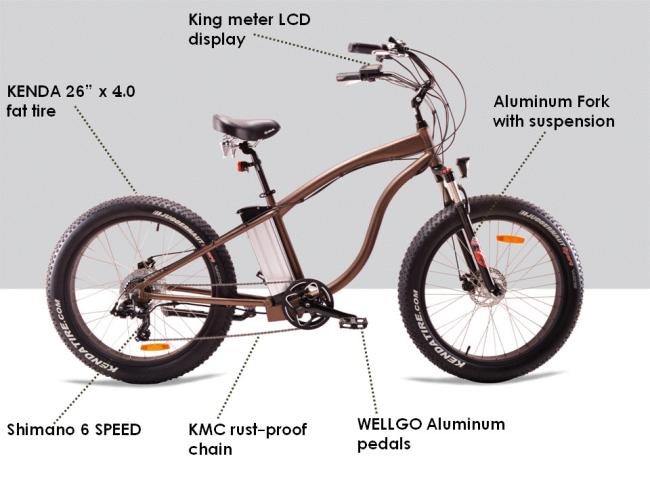

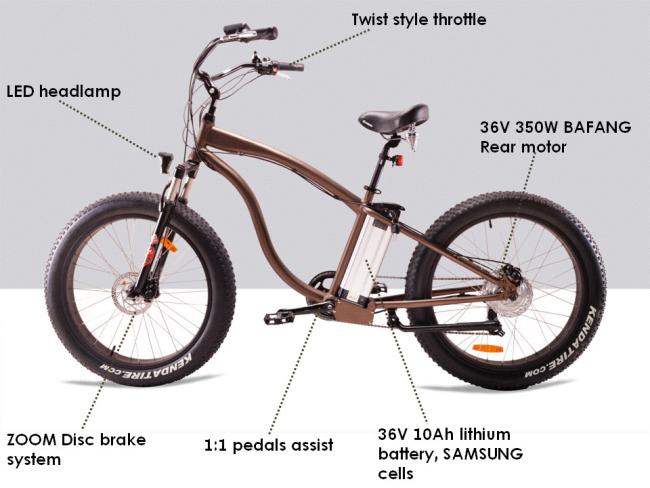

ZOOM disc brake, Shimano RD-TX55 derailleur, Kenda 26"x4.0 beach tire, KMC rust-proof chain, Velo mountain style saddle, BAFANG rear gear motor, all this components make beach bike with the ultimate performance.
Key Features
