18"x2.5 Pedal Assisted Electric Scooter , Gear Motor E Bike Electric Scooter

Price Negotiable
Price: USD
MOQ: 5units
Delivery Time: 30days
Brand: DREAM WHEEL
Product Description

CE Approved 250w - 500w Gear Motor E Bike Electric Scooter



Quick Details

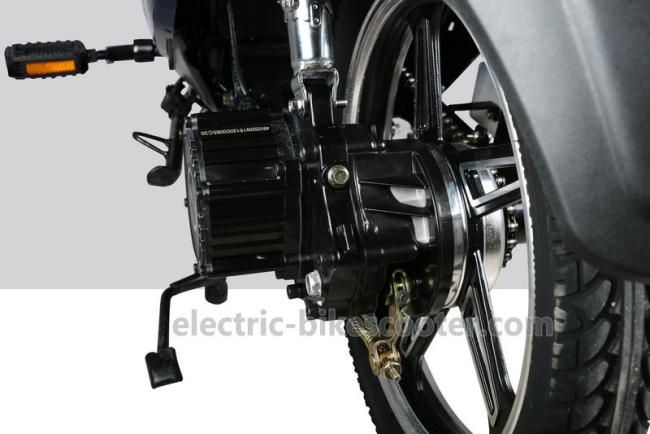

1. Motor power: 48V 250-500W Gear motor

2. Lead Acid Gel battery: 48V 20Ah

3. Tire size: 18”X 2.5

4. Brake system: Disc brake for front wheel

5. Pedals assisted system and Throttle: Yes

6. Max Speed: 25-32km/h



Product Descriptions

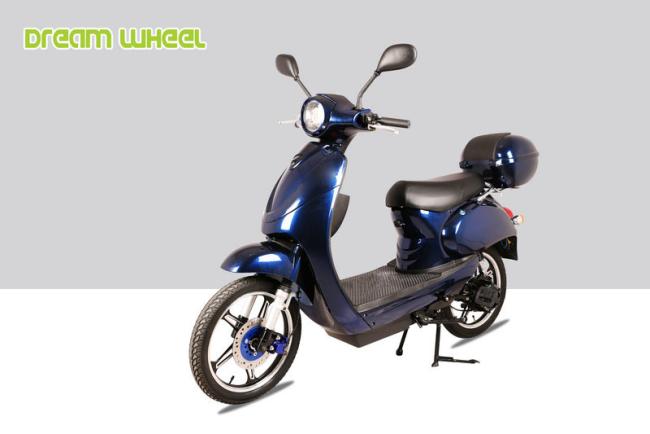

HP-E60 PLUS is one Vespa style pedals assist electric scooter for many years, they are popular in Italy and Germany.   48V 500W Gear Motor can offer strong power to climb hills. 2016 new Gear motor with optimization design, can get the best balance between power and electricity consume.



The battery can be removable.48V 20Ah battery, drive with pedals assisted system, the distance can get 55km.



Disc brakes , digital speedometer, USB port and New design Pedals Assisted System, make it keep better performance and comfortable driving experience.



Components

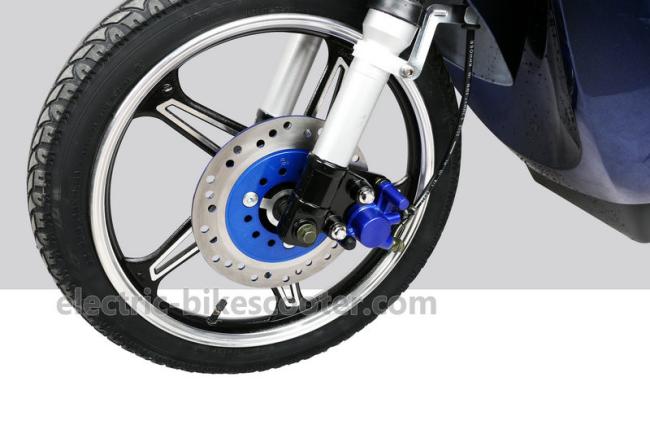

- DISC brake system. This electric scooter installed disc brakes for front and rear wheel, to make good performance.



- LED headlamps design, to make the scooter see longer and clearly. Also save electricity for whole scooter.



- Full suspension system.

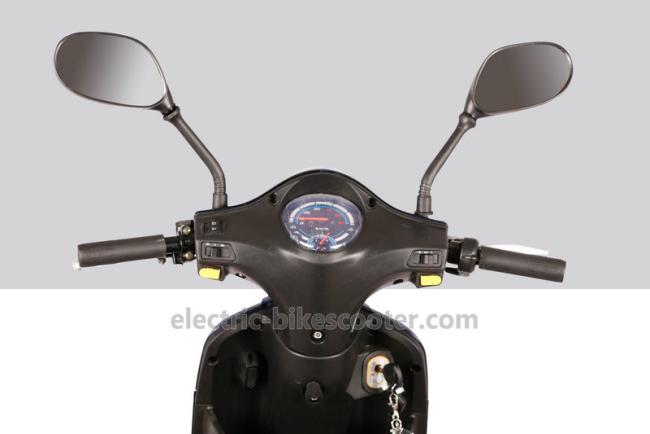

- Digital speedometer, to display more information, like battery power, speed, lights.



- USB charger port, can charge your smart phone any time on the way.



- New design Pedals Assisted System, can give more help when climb hills.



- Charger with CE, RoHS and UL certificates.



Specifications



Model number

HP-E60 PLUS

Motor

48V 500W new Gear motor

Battery

48V 20Ah lead acid gel battery, removable

Charge time

4-8h

Charger

48V 2.5A, plug can be customized with CE, RoHS, UL

Controller

48V 28A,12 tubes

Speed

25-32Km/h

Speed mode

Single

Driving distance

50-55km by PAS

Weight

80Kgs

Packing dimension

1620x450x850mm

Package

85% completed, one piece per carton

Panel/speedometer

 Digital display

Driving mode

Pedals assisted and Throttle

Alarm system

Remote alarm

Wheel

18”

Tire

18”x2.5,  CST tire

Chain

stainless

Frame

Paint with electrophoretic coating

Fork

Hydraulic suspension

Shift lever

--

Rear derailleur

--

Front brake

Disc Brake

Rear brake

Drum Brake

Brake levers

 Aluminum

Rims

Aluminum alloy

Spokes

--

Pedals

Foldable

Chainwheel

28T

Cranks

steel

Freewheel

16T

Handlebar

 Steel

Stem

--

Grip

140MM

Seat

comfortable

Seat tube

--

Headlamp

LED

Fenders

Plastics

Wheel base

1240mm

Min ground clearance

120mm

Saddle ground clearance

785mm

Handlebar ground clearance

990mm

Licence requirement

250W no need for EU; 500W no need for North America
