10"x3.5 Pedal Assisted Electric Scooter 25km/H 48V 20Ah Lead Acid Gel Battery
LED light scooter single rear fork 25-45km/h power electric scooter/bike with 500W-1000W hub motor 48V -72battery
Quick Details
1. Motor power: 48V 500W brushless motor
2. Lead Acid Gel battery: 48V 20Ah
3. Tire size: 10"x3.5
4. Brake system: Disc brake for front wheel
5. Pedals assisted system and Throttle: Throttle
6. Max Speed: 25-45km/h
Product Descriptions
EBS678 is one new design electric scooter, 48V 500W hub Motor can reach 45km/h max speed. LED headlamp, digital speedometer, and USB port.
48V 20Ah battery, made with high quality lead acid Gel battery, the distance can get 45-55km per charge.
The motor mounted on single rear fork, more nice.
Components
- DISC brake system. This electric scooter installed disc brakes for front and rear wheel, to make good performance.
- LED headlamps design.
- Full suspension system.
- Digital speedometer, to display more information, like battery power, speed, lights.
- USB charger port, can charge your smart phone any time on the way.
- Remote alarm system and keyless start system, make the scooter more safe and easier to operate.
Specifications
| Model number | EBS678 |
| Motor | 48V 500W hub brushless motor |
| Battery | 48V 20Ah lead acid gel battery |
| Charge time | 4-8h |
| Charger | 48V 2.5A, plug can be customized |
| Controller | 48V 32A,12 tubes |
| Speed | 25-45Km/h |
| Speed mode | Single |
| Driving distance | 45-55km |
| Weight | 80Kgs |
| Packing dimension | 1780x450x1000mm |
| Package | 85% completed, one piece per carton |
| Panel/speedometer | Digital display |
| Driving mode | Throttle |
| Alarm system | Remote alarm |
| Wheel | 10” |
| Tire | 10”x3.5, tubeless |
| Chain | -- |
| Frame | Paint with electrophoretic coating |
| Fork | Hydraulic suspension |
| Shift lever | -- |
| Rear derailleur | -- |
| Front brake | Disc Brake |
| Rear brake | Drum Brake |
| Brake levers | Aluminum |
| Rims | Aluminum alloy |
| Spokes | -- |
| Pedals | -- |
| Chainwheel | -- |
| Cranks | -- |
| Freewheel | -- |
| Handlebar | Steel |
| Stem | -- |
| Grip | 140MM |
| Seat | Comfortable for two person |
| Seat tube | -- |
| Headlamp | LED |
| Fenders | Plastics |
| Wheel base | -- |
| Min ground clearance | -- |
| Saddle ground clearance | -- |
| Handlebar ground clearance | -- |
| Licence requirement | -- |

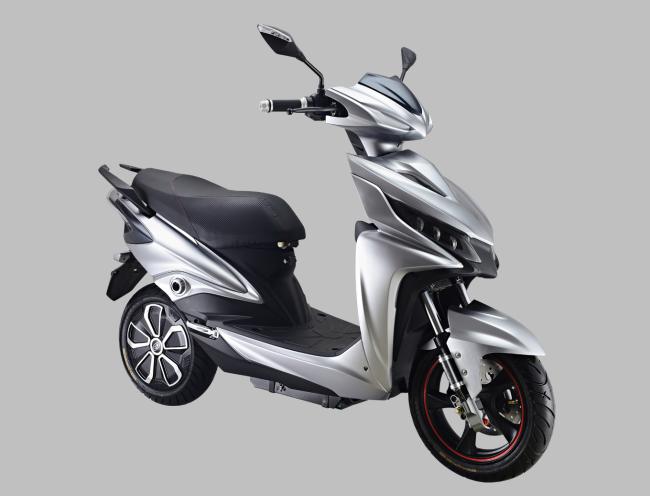

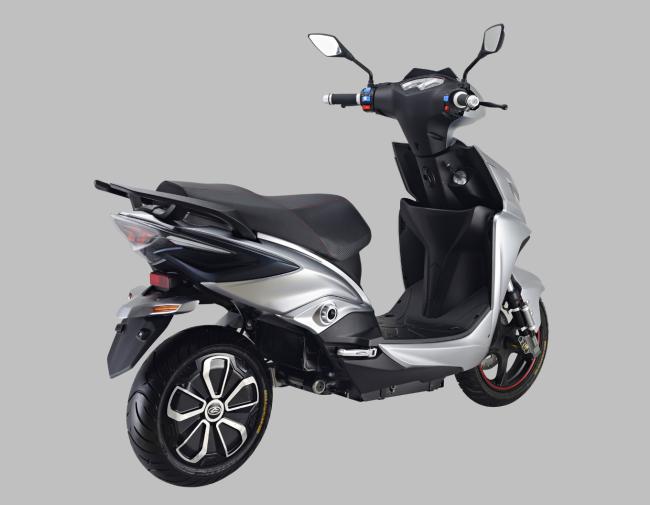

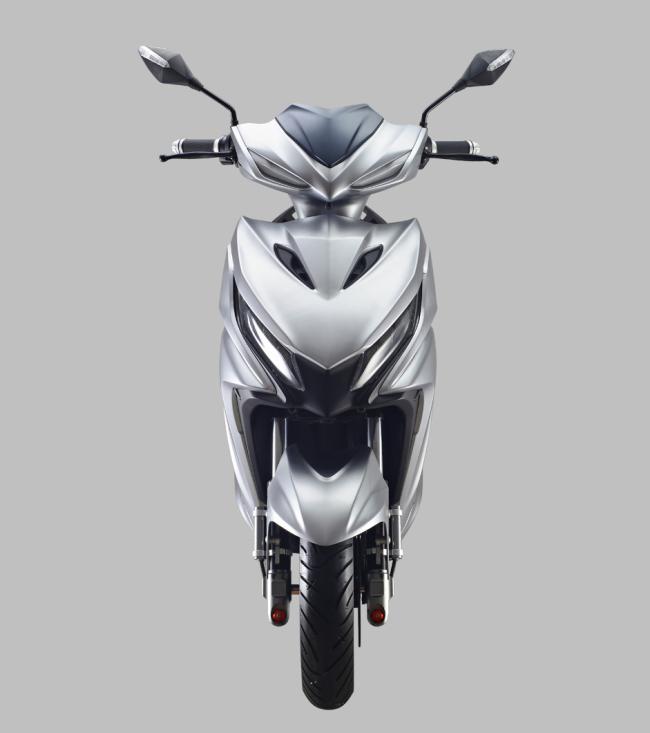

Pictures Show
