25km/h Pedal Assisted Electric Scooter Narrow Base Two Wheel For Adults
European standard narrow base two wheels 48V 350W Pedal Assisted Electric Scooter Bike For Adults
Quick Details
1. Motor power: 48V 250W rear brushless motor
2. Lead Acid Gel battery: 48V 12Ah
3. Tire size: 16”X 2.5
4. Brake system: Drum brakes for both wheel
5. Pedals assisted system and Throttle: Yes
6. Max Speed: 25km/h European standard
Product Descriptions
HP-629 is one classic pedals assist electric scooter for many years, they are popular in Europe and North America. 48V 250W and 25km/h performace meet European standard; 48V500W ad 32km/h speed meet Canada law. The battery can be removable.
Another feature, the foot rest base is narrow, only 25cm width. So the driver use pedals assist system to drive this e-bike eaily and comfortable.
Components
- Drum brake system. This electric scooter installed drum brakes for front and rear wheel, to make good performance and balance cost.
- LED headlamps design, to make the scooter see longer and clearly. Also save electricity for whole scooter.
- Full suspension system.
Specifications
|
Model number |
HP-629 |
|
Motor |
48V 250W three phase motor |
|
Battery |
48V 12Ah lead acid gel battery, removable |
|
Charge time |
4-8h |
|
Charger |
48V 1.8A, plug can be customized |
|
Controller |
48V 25A |
|
Speed |
25Km/h |
|
Speed mode |
Single level |
|
Driving distance |
40-45km by PAS |
|
Weight |
65Kgs |
|
Packing dimension |
1620x450x1000mm |
|
Package |
90% completed, one piece per carton |
|

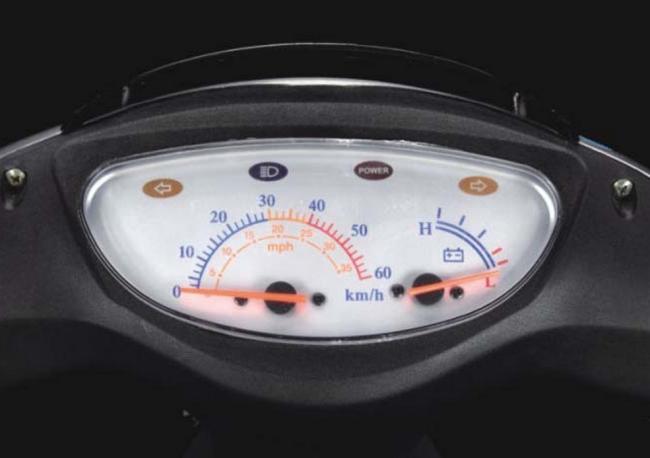

Panel/speedometer |
Normal display |
|
Driving mode |
Pedals assisted and Throttle |
|
Alarm system |
Remote alarm |
|
Wheel |
16” |
|
Tire |
16”x2.5, CST tire |
|
Chain |
stainless |
|
Frame |
Paint with electrophoretic coating |
|
Fork |
Hydraulic suspension |
|
Shift lever |
-- |
|
Rear derailleur |
-- |
|
Front brake |
Drum Brake |
|
Rear brake |
Drum Brake |
|
Brake levers |
Aluminum |
|
Rims |
Aluminum alloy |
|
Spokes |
-- |
|
Pedals |
Foldable |
|
Chainwheel |
28T |
|
Cranks |
steel |
|
Freewheel |
16T |
|
Handlebar |
Steel |
|
Stem |
-- |
|
Grip |
136MM |
|
Seat |
Lengthen, comfortable |
|
Seat tube |
-- |
|
Headlamp |
LED |
|
Fenders |
Plastics |
|
Wheel base |
1245mm |
|
Min ground clearance |
120mm |
|
Saddle ground clearance |
770mm |
|
Handlebar ground clearance |
980mm |
|
Licence requirement |
250W no need for EU; 500W no need for North America |
