36V 250W Motorized Folding Bike TUV EN15194
250 W Motorized Folding Bike / Bicycle , Recycle Foldaway Electric Bike
Quick Details
1. Motor power: 36V 250W rear GEAR motor
2. Frame material: Aluminum alloy 6061
3. Lithium battery: 36V 10Ah li-ion battery
4. Certification: EN15194 by TUV
5. Wheel size: 20”
6. Brake system: Disc brakes for both
7. Derailleur system: Shimano 6 speed
8. Pedals assisted system: Yes. throttle can be optional
Product Descriptions
HP-E052 new version is one popualr folding electric bike, we updated some important compoents for 2017, like motor, brakes and light, to make the smart bike more affordable and better performance.
And this new version bike have certificated by EN15194 TUV test. It's legal for European areas and some countries that accept this standard the same as EU.
At present, this foldable ebike have sold in Germany and Isreal.
Specifications
| Model number | HP-E052 new | |
| Motor | 36V 250W rear GEAR motor | |
| Battery | 36V 10Ah li-ion battery | |
| Charge time | 4-6h | |
| Charger | 110-240V, 36V 2A, plug can be customized | |
| Controller | 36V 14A | |
| Speed | 25Km/h | |
| Driving distance | 45-55km by PAS | |
| Weight | 22.5Kgs | |
| Packing dimension | 860x460x715mm | |
| Panel/speedometer | LED style | |
| Wheel | 20” | |
| Tire | 20”x2.125, KENDA | |
| Chain | 1/2*3/32*114L | |
| Frame | Aluminum alloy 6061 | |
| Fork | with suspension | |
| Shift lever | Shimano 6 speed | |
| Rear derailleur | Shimano RD-TX55 | |
| Front brake | Disc Brake | |
| Rear brake | Disc Brake | |
| Brake levers | Aluminum alloy | |
| Rims | Aluminum alloy | |
| Spokes | Front:13GX176/178; Rear:12GX123/125; | |
| Pedals | Folding type | |
| Chainwheel | 1/2*3/32*52T, aluminum | |
| Cranks | Aluminum, 170L | |
| Freewheel | 14-28T | |
| Handlebar | Aluminum, black, foldable | |
| Stem | Aluminum, black, foldable | |
| Grip | 140MM | |
| Seat | Bigger size, comfortable | |
| Seat tube | Steel | |
| Lamp | LED for front and rear | |
| Wheel base | 1030mm | |
| Min ground clearance | 90mm | |
| Saddle ground clearance | Max:990mm; Min:790mm | |
| Handlebar ground clearance | 1120mm | |
| Licence requirement | NO | |
Pictures Show

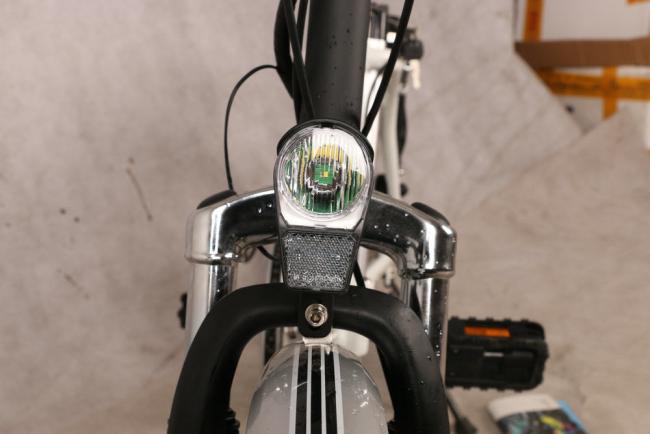

LED head light, Spanninga brand

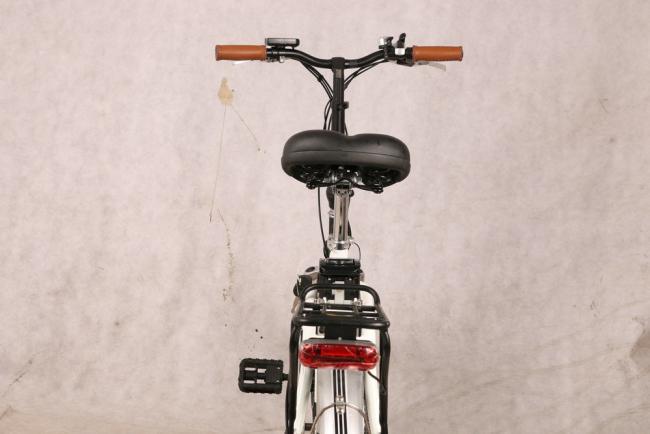

LED Back light& PVC double colours mudguards

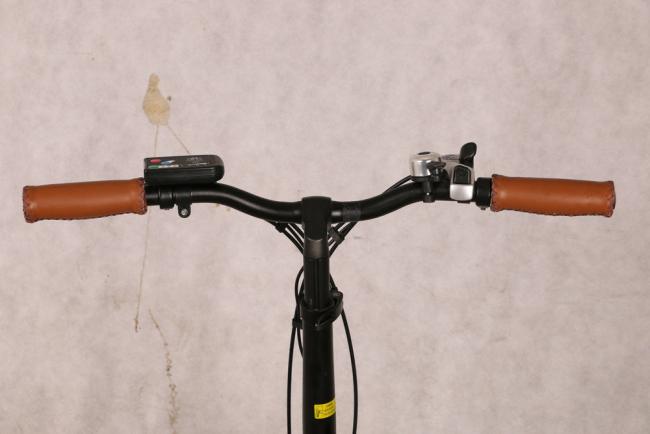

Folding aluminum alloy handlebar and stem, with matt black colour; LED version display; classic soft grips

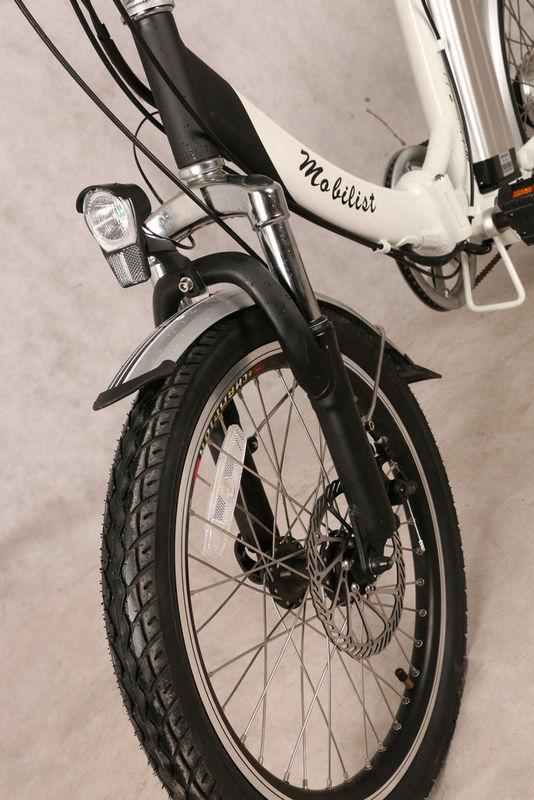

Disc brakes system, and 20" x 2.125 Kenda tire

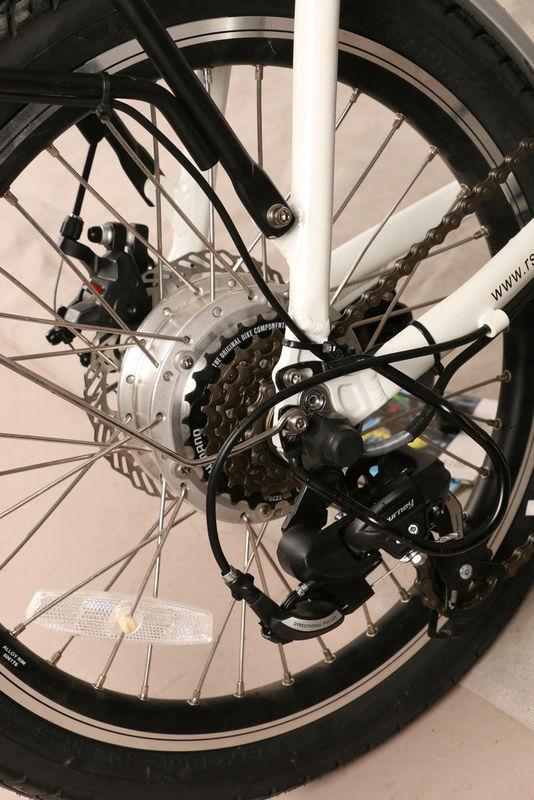

Shimano 6 speed, 36V 250W rear Gear motor
