TUV EN15194 Battery Powered Folding Bike 36V 10Ah Li Ion Battery
TUV EN15194 Standard Folding Battery Powered Bike 36v 10ah Li - Ion Battery
Quick Details
1. Motor power: 36V 250W rear GEAR motor
2. Frame material: Aluminum alloy 6061
3. Lithium battery: 36V 10.4Ah, 374Wh
4. Certification: EN15194 by TUV
5. Wheel size: 20”
6. Brake system: Disc brakes for front wheel
7. Derailleur system: Shimano 7 speed
8. Pedals assisted system: Yes. throttle can be optional
Product Descriptions
HP-E052c is one good design folding electric bike in 2017. 36V 10.4Ah li-ion battey pack in the rear, take away to charge easily.
And this new version bike have certificated by EN15194 TUV test. It's legal for European areas and some countries that accept this standard the same as EU.
Specifications
| Model number | HP-E052c | |
| Motor | 36V 250W rear GEAR motor | |
| Battery | 36V 10.4Ah li-ion battery | |
| Charge time | 4-6h | |
| Charger | 110-240V, 36V 2A, plug can be customized | |
| Controller | 36V 14A | |
| Speed | 25Km/h | |
| Driving distance | 45-55km by PAS | |
| Weight | 22.5Kgs | |
| Packing dimension | 860x460x715mm | |
| Panel/speedometer | LED style | |
| Wheel | 20” | |
| Tire | 20”x2.125, KENDA | |
| Chain | 1/2*3/32*114L | |
| Frame | Aluminum alloy 6061 | |
| Fork | with suspension | |
| Shift lever | Shimano 7 speed | |
| Rear derailleur | Shimano RD-TX55 | |
| Front brake | Disc Brake | |
| Rear brake | V Brake | |
| Brake levers | Aluminum alloy | |
| Rims | Aluminum alloy | |
| Spokes | Front:13GX176/178; Rear:12GX123/125; | |
| Pedals | Folding type | |
| Chainwheel | 1/2*3/32*52T, aluminum | |
| Cranks | Aluminum, 170L | |
| Freewheel | 14-28T | |
| Handlebar | Aluminum, black, foldable | |
| Stem | Aluminum, black, foldable | |
| Grip | 140MM | |
| Seat | Classic style, comfortable | |
| Seat tube | Steel | |
| Lamp | LED for front and rear | |
| Wheel base | 1020mm | |
| Min ground clearance | 88mm | |
| Saddle ground clearance | Max:990mm; Min:790mm | |
| Handlebar ground clearance | 1120mm | |
| Licence requirement | NO | |
Pictures Show

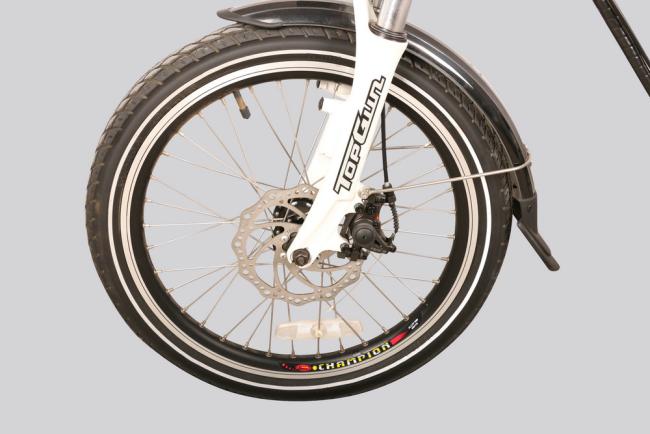

Disc brakes system, and 20" x 2.125 Kenda tire
