48V 750W New design 2022 Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194
Electric super bike 73 fat tire bike 48V 750W 2022 new design
Quick Details
1. Motor power: 48V 750W rear motor
2. Frame material: Aluminum alloy 6061
3. Lithium battery: 48V 13Ah Samsung cells
4. Certification: EN15194
5. Wheel size: 20”
6. Brake system: Disc brake for both wheels
7. Derailleur system: Shimano 7 speed
8. Pedals assisted system: PAS and throttle
Product Descriptions
Dream Wheel Technology, offers a state of the art battery and frame design, and artfully combines the highest quality parts from the most competitive manufacturers Shimano, ZOOM, KENDA, KMC and VELO, to make reliable products.
We provide two drive modes on this bike, Pedals Assistant System and Accelerating system. this EBS-73 is our new design electirc fat tire bike. 48V 500W /750W rear motor. 13Ah lithium battery with Samsung/LG cells. the bikemore new colours are optional.
Specifications
|
Model number |
EBS-76 |
|
|
Motor |
48V 750W rear hub motor |
|
|
Battery |
48V 13Ah lithium, SAMSUNG cells,624Wh |
|
|
Charge time |
4-6h |
|
|
Charger |
110-240V, 48V 2A with UL standard |
|
|
Controller |
48V 22A |
|
|
Spee d1 |
30-40Km/h |
|
|
Driving distance |
45-55km by PAS |
|
|
Weight |
30Kgs |
|
|
Packing dimension |
1500x280x900mm |
|
|
Panel/speedometer |
LCD style |
|
|
Wheel |
20” |
|
|
Tire |
20”x4.0, KENDA fat tire |
|
|
Chain |
1/2*3/32*114L, KMC rust-proof |
|
|
Frame |
Aluminum alloy 6061 |
|
|
Fork |
20”, travel 100MM |
|
|
Shift lever |
Shimano 7 speed |
|
|
Rear derailleur |
Shimano RD-TX55 |
|
|
Front brake |
Mechanical Disc Brake |
|
|
Rear brake |
Mechanical Disc Brake |
|
|
Brake levers |
Aluminum, 47PDD |
|
|
Rims |
Aluminum alloy |
|
|
Spokes |
Front:13GX176/178; Rear:12GX123/125; |
|
|
Pedals |
Wellgo, with ball |
|
|
Chainwheel |
1/2*3/32*52T, aluminum |
|
|
Cranks |
Aluminum, 170L |
|
|
Freewheel |
14-28T |
|
|
Handlebar |
ZOOM Aluminum |
|
|
Stem |
ZOOM Aluminum |
|
|
Grip |
140MM |
|
|
Seat |
Velo |
|
|
Seat tube |
Aluminum, 27.2*300*1.4T |
|
|
Lamp |
LED for front and rear |
|
|
Wheel base |
1090mm |
|
|
Min ground clearance |
90mm |
|
|
Saddle ground clearance |
-- |
|
|
Handlebar ground clearance |
1120mm |
|
|
Licence requirement |
NO |
|

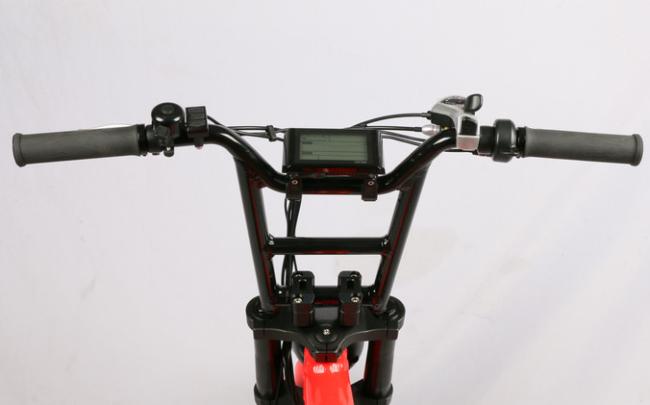

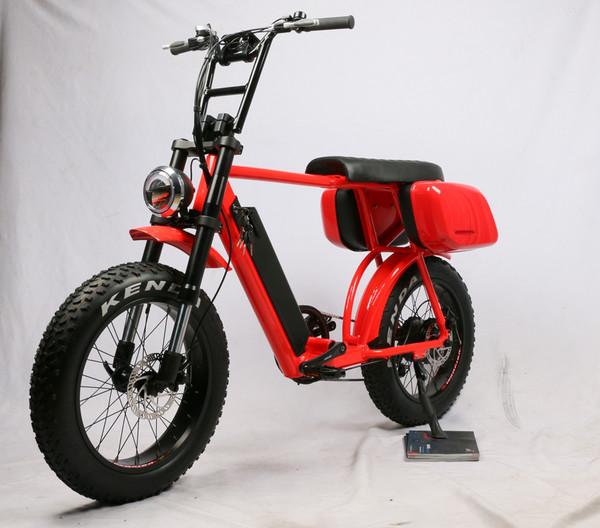

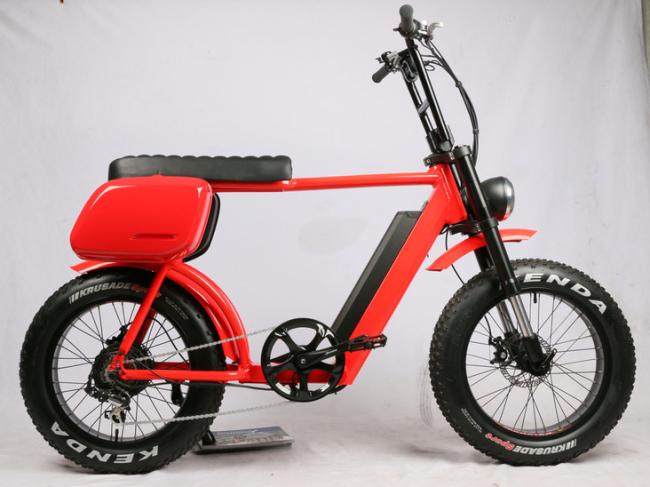

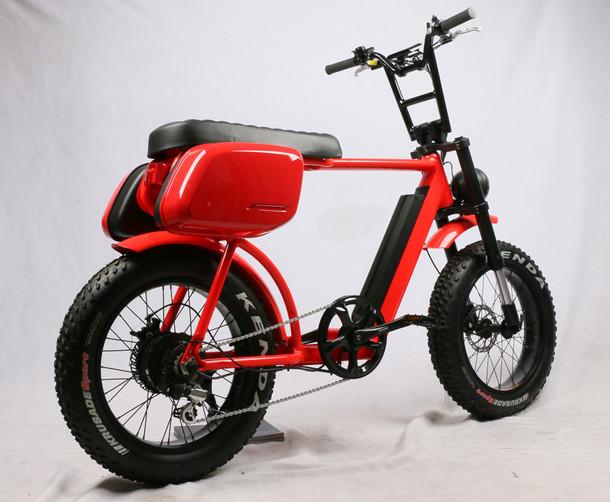

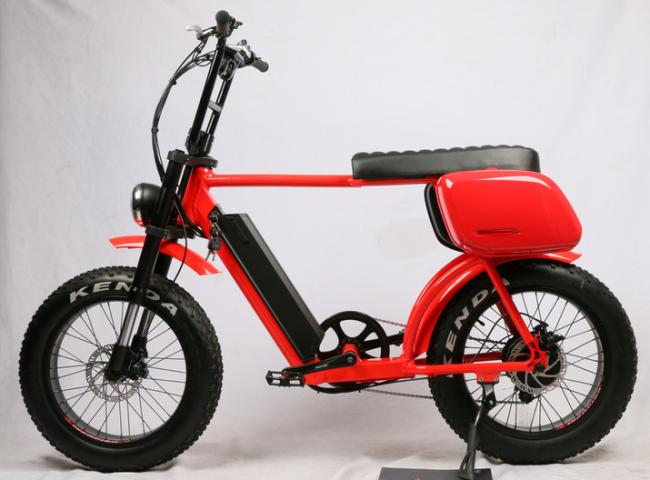

Pictures Show
