48V 500W 2022 Electric Fat Tire Bike, new design, fat tire, powerful 8 fun motor, both suspension
48V 500W 2022 Electric Fat Tire Bike, new design, fat tire, powerful 8 fun motor, both suspension
Quick Details
1. Motor power: 48V 500W Bafang motor
2. Frame material: Aluminum alloy 6061
3. Lithium battery: 48V 13Ah Samsung cells battery
4. Certification: EN15194
5. Wheel size: 20”
6. Brake system: Mechanical Disc brakes for both wheels
7. Derailleur system: Shimano 7 speed
8. Pedals assisted system: PAS and throttle
Product Descriptions
Dream Wheel Technology, offers a state of the art battery and frame design, and artfully combines the highest quality parts from the most competitive manufacturers Shimano, ZOOM, KENDA, KMC and VELO, to make reliable products.
We provide two drive modes on this bike, Pedals Assistant System and Accelerating system. this EBS-88 is our 2022 new design electirc fat tire bike, high quality and durable components. 48V 500W rear hub motor, it's more easily to uphill and more powerful to speed up any time. 48V 13Ah lithium battery with Samsung/LG cells.
Specifications
|
Model number |
EBS-88 |
|
|
Motor |
48V 500W Bafang rear hub motor |
|
|
Battery |
48V 13Ah lithium battery, SAMSUNG /LG cells,624Wh |
|
|
Charge time |
4-6h |
|
|
Charger |
110-240V, 48V 2A with UL standard |
|
|
Controller |
48V 22A |
|
|
Speed |
30-40Km/h |
|
|
Driving distance |
40-50km by PAS |
|
|
Weight |
37Kgs |
|
|
Packing dimension |
1500x280x900mm |
|
|
Panel/speedometer |
LCD display, show speed, ODO, PAS, headlight |
|
|
Wheel |
20” |
|
|
Tire |
20”x4.0, KENDA fat tire |
|
|
Chain |
1/2*3/32*114L, KMC rust-proof |
|
|
Frame |
Aluminum alloy 6061 |
|
|
Fork |
off-road version suspension |
|
|
Shift lever |
Shimano 7 speed |
|
|
Rear derailleur |
Shimano RD-TX55 |
|
|
Front brake |
Mechanical Disc Brake |
|
|
Rear brake |
Mechanical Disc Brake |
|
|
Brake levers |
Aluminum, 47PDD |
|
|
Rims |
Aluminum alloy |
|
|
Spokes |
Front:13GX176/178; Rear:12GX123/125; |
|
|
Pedals |
Wellgo, with ball |
|
|
Chainwheel |
1/2*3/32*52T, aluminum |
|
|
Cranks |
Aluminum, 170L |
|
|
Freewheel |
14-28T |
|
|
Handlebar |
ZOOM Aluminum |
|
|
Stem |
ZOOM Aluminum |
|
|
Grip |
140MM |
|
|
Seat |
longer seat |
|
|
Seat tube |
Aluminum, 27.2*300*1.4T |
|
|
Lamp |
LED for front and rear |
|
|
Wheel base |
1050mm |
|
|
Min ground clearance |
90mm |
|
|
Saddle ground clearance |
-- |
|
|
Handlebar ground clearance |
1100mm |
|
|
Licence requirement |
NO |
|

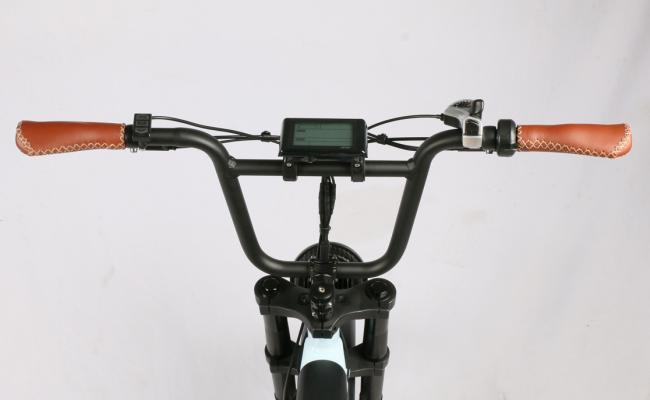

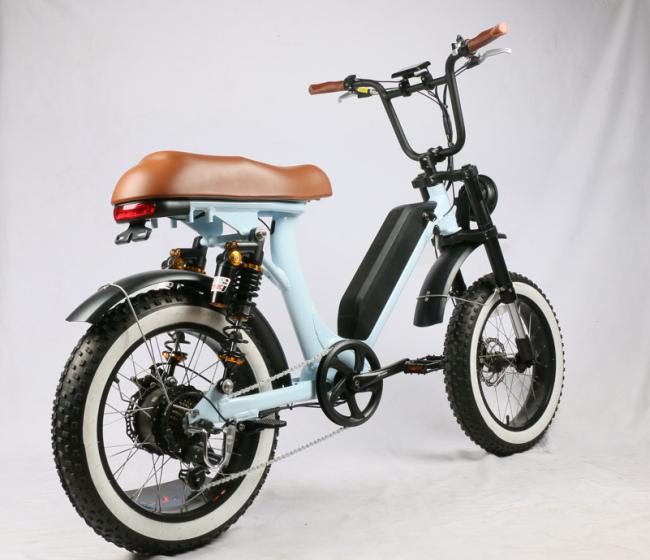

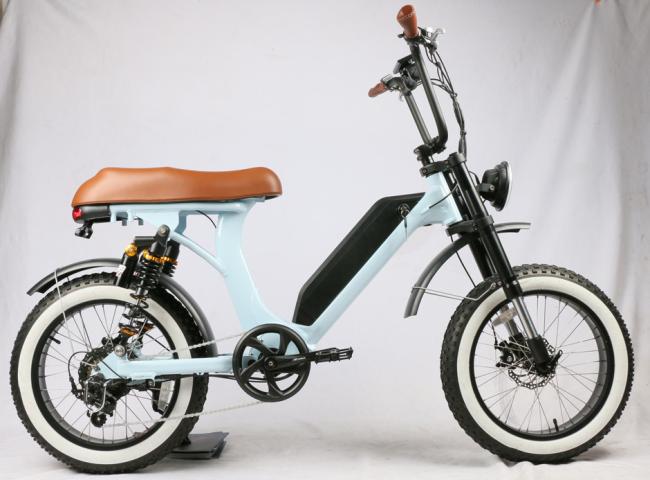

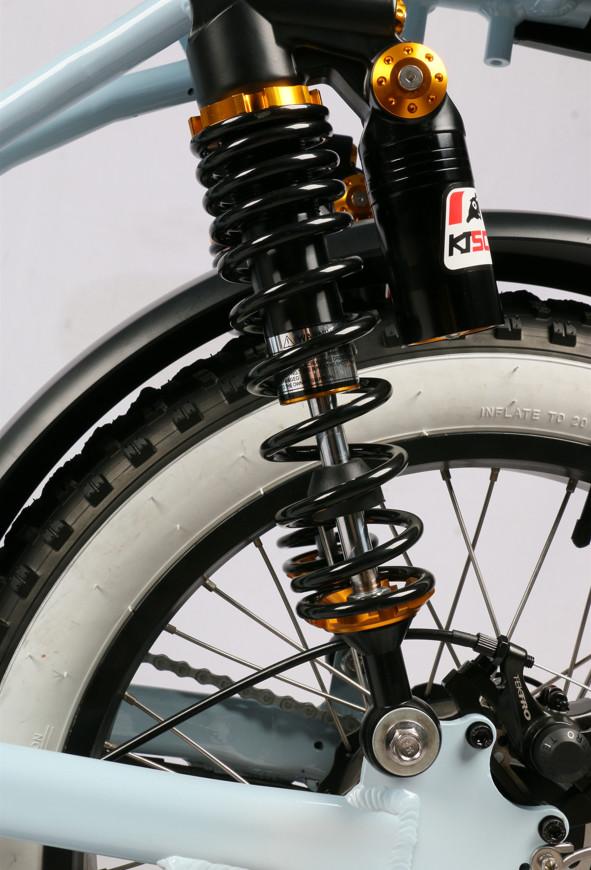

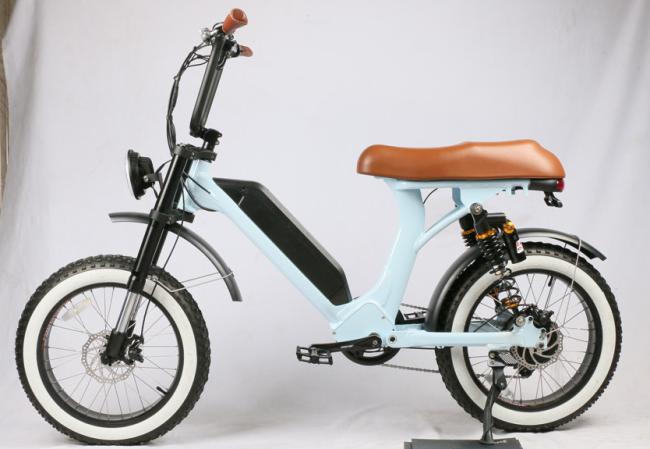

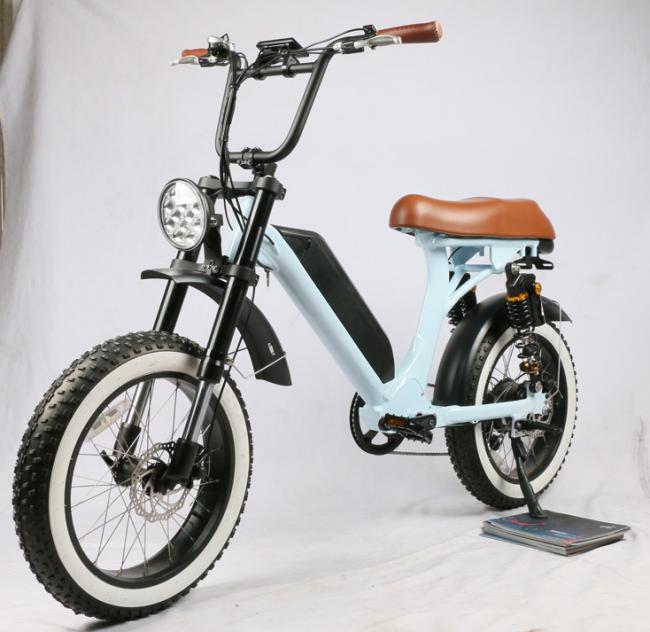

Pictures Show
