1-25mm High Precision CNC Metal Laser Cutting Machine For SS Aluminum Plate
1-25mm High Precision Industrial CNC Metal Laser Cutting Machine For Stainless Steel Plate Aluminum Plate
(Model:PE-CUT-A3)
★ Product Introduction:
The latest cutting machine PE-CUT-A3 developed by Perfect Laser is a CNC metal laser cutting machine designed with heavy duty machine tools based on previous experience. Compared with previous cutting machines, this model is more stable and durable, and it is a hot selling product.
CNC metal laser cutting machine cutting accuracy in line with JB/T10045.3-1999 standard, for enterprises with high precision requirements, this model just meets.
★ Product Features:
1. CNC metal laser cutting machine with automatic calculation of cutting slit compensation, reduce data production time, save labor time, operation is also more convenient.
2. Automatic optimization of processing sequence, can also be manually adjusted, flexible, improve work efficiency.
3. When the CNC metal laser cutting machine encounters breakpoint and power failure, it can advance and back-off along the track to effectively solve the emergency situation.
4. CNC metal laser cutting machine with automatic arc, automatic elevation system, for the cutting plate is uneven, the system can automatically adjust the distance to ensure the accuracy of cutting.
5. CNC metal laser cutting machine adopts advanced integrated module control mode, improve cutting accuracy, improve cutting efficiency.
6. The system supports AI, DXF, PLT and other file formats, and supports Type3, MasterCam, Wentai and other software generated international standard G code.
★ Application:
CNC metal laser cutting machine can be used in the opposite carbon steel, stainless steel, manganese steel, aluminum, copper, titanium, nickel and other metal materials.
CNC metal laser cutting machine is used in shipbuilding, petrochemical industry, boiler manufacturing, aerospace, vehicle manufacturing and other industries.
★ Technical Parameters:
| Model | PE-CUT-A3 CNC metal laser cutting machine | ||
| Effective Cutting Width | Track Gauge-1500 | ||
| Effective Cutting Length | Gauge Length-3000 | ||
| Plasma Cutting Thickness | 1-25mm | ||
| Cutting Torch Lifting Stroke | 60mm | ||
| Machine Running Speed | 50-45000mm/min | ||
| Velocity Error | ≤±5% | ||
| Automatic Height Adjustment Accuracy | ≤±1.0mm | ||
| Weight | 550KG | ||
| Vertical Line Accuracy | ±0.2mm/10m | ||
| Linear Repetition Accuracy | ±0.4mm/10m | ||
| Installation Accuracy of Rail |
Rail Side Straightness:0.5mm/10000mm The parallel degree between the rail and the horizontal plane of the guide rail:±0.5mm/10000mm |
||
| Positioning Precision | 0.1mm |
A)Equipment positioning accuracy and repeatability: conform to JB/T5102-1999 standard B)Cutting dimension accuracy, section quality: conform to JB/T10045.3-1999 standard |
|
| Straightness | 0.2mm | ||
| Roundness | 0.2mm | ||
| Diagonal Difference | 0.3mm | ||
| Repeated Positioning Accuracy | 0.5mm | ||
| Machine Marking Accuracy | ≤0.5mm | ||
|
Cutting Surface Quality ( Roughnes ) (σ=25) |
RZ(um)=70+1.2a Visual Measurement: roughness12.5 |
||

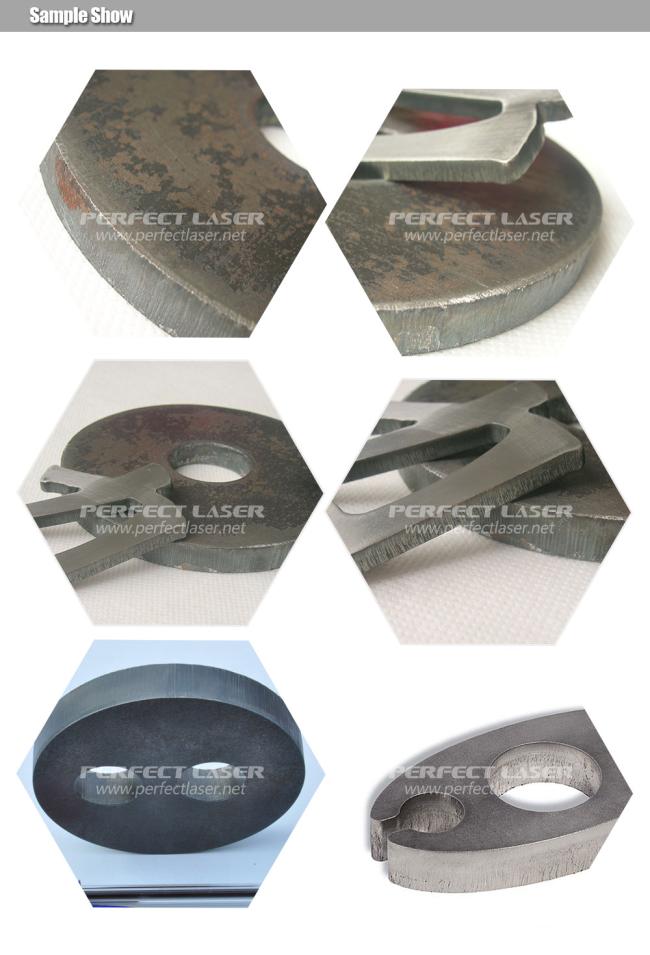

★ Sample Shows:
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
