Handheld Fiber Laser Welding Machine 1000W QBH Soldered 1070nm
1000W 1500W 2000W Non-contact Water Cooled Continuous Pulse Handheld Laser Derusting Machine For Machine Tools And Ships
(Model:PE-Z1000)
★ Product Introduction
Perfect laser newly launched handheld laser derusting machine PE-Z1000, through the laser beam irradiation of the surface of the body, the stain and the surface of the body fast beam detachment or evaporation, so as to achieve the cleaning effect. In this process without adding any chemical agents, will not produce pollutants, is a kind of efficient, green environmental protection cleaning technology.
Body with intelligent control template, one button boot, simple and efficient operation.
★ Product Features
- Handheld laser derusting machine with cleaning head, light and efficient, can clean any position of the body.
- Without adding any chemical agents, the operation cost is low, no pollution, more efficient.
- Intelligent operation template, one-click startup, quick operation and easy operation.
- The use of water cooling system, dust and condensation, rapid leakage reduction, high efficiency of rust removal.
- In the process of derusting, the handheld laser derusting machine will not cause any damage to the body surface. With the hand-held derusting gun, there can be no dead Angle cleaning, and the cost performance is higher.
★ Application
Handheld laser derusting machine is widely used in ship, auto parts, machine tools, confidential machinery, electrical appliances, medical instruments, digital products and other surface laser derusting, oil removal, oxidation layer removal, tire mold, cleaning weld.
★ Technical Parameters
| Product Parameters | |
| Product Name | 1000W /1500W / 2000W handheld laser derusting machine |
| Average Laser Power | 1000W / 1500W / 2000W |
| Power Adjustment Range | 10%~100% |
| Center Wavelength | 1080nm |
| Operating Mode | Continuous/Pulse |
| Beam Quality Factor | M2<1.8 |
| Laser Linewidth | 5mm~150mm Adjustable |
| Laser Pulse Frequency | 1Khz~5Khz Adjustable |
| Laser Fiber Length |
10 Meters (Standard) 15 Meters / 20Meters (Optional) |
| Fiber Minimum Bending Radius | 200Mm |
| Laser Output Stability | <±3% |
| Cooling Method | Water Cooling (Deionized Water) |
| Working Temperature | 0℃~40℃ |
| Working Environment Humidity | <80% |
| Laser Source’s Technical Parameters | |
| Laser Source | Fiber-Optic Laser Source |
| Laser Wavelength | 1080nm |
| Average Output Power | 1000W |
| Pulse Repetition Frequency | 1k~5kkhz |
| Maximum Scan Line Speed | Max 20m/s |
| Scan Width | Up To 200x100mm, Continuously Adjustable |
| Cooling Method | Water Cooling |
| Handheld Cleaning Head | Weight 1.2Kg |
| Galvo Line Length | 5 Meters |
| Voltage | 380V/50Hz |
| Ambient Temperature | 5~40°C, need to install air conditioner when using beyond the range |
| Environment Humidity | 30%≤Rh≤85% (RH relative humidity) if the humidity exceeds the range, there is a risk of condensation on the equipment, so you need to install an air conditioner when using it. |
| Oil Mist | Not Allowed |
| Condensation | Not Allowed |
| Compressed Gas (Standard Without) | Provide 0.5-0.7mpa of compressed air without obvious water vapor and grease.Prepare pneumatic components for use. |

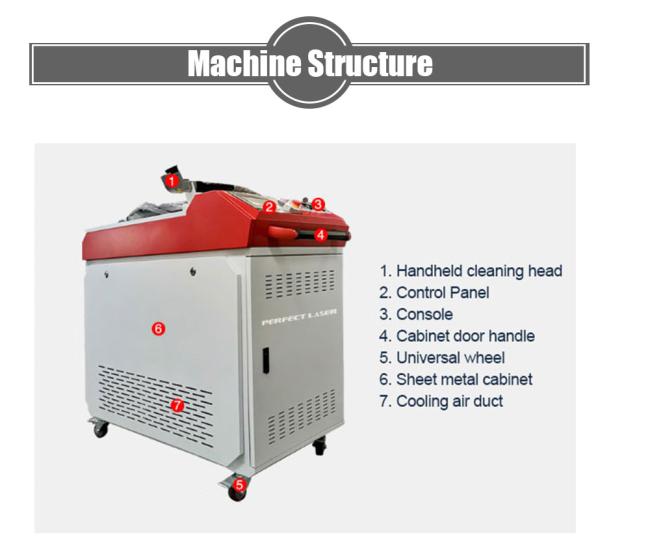

★ Machine parts
