Compact Desktop Laser Marker with 1064nm Fiber Source for Precision Metal Aluminum Marking
This desktop laser marker uses a 1064 nm pulsed fiber laser to create permanent, high-contrast, corrosion-resistant marks. Its compact, foldable design saves space while delivering stable performance comparable to full-size laser marking systems.
- Compact and portable design, offering flexible operation and strong cost performance.
- Integrated construction with a rigid frame ensures consistent operation and durability.
- Detachable laser path and column design enables easy storage and adaptable marking layouts.

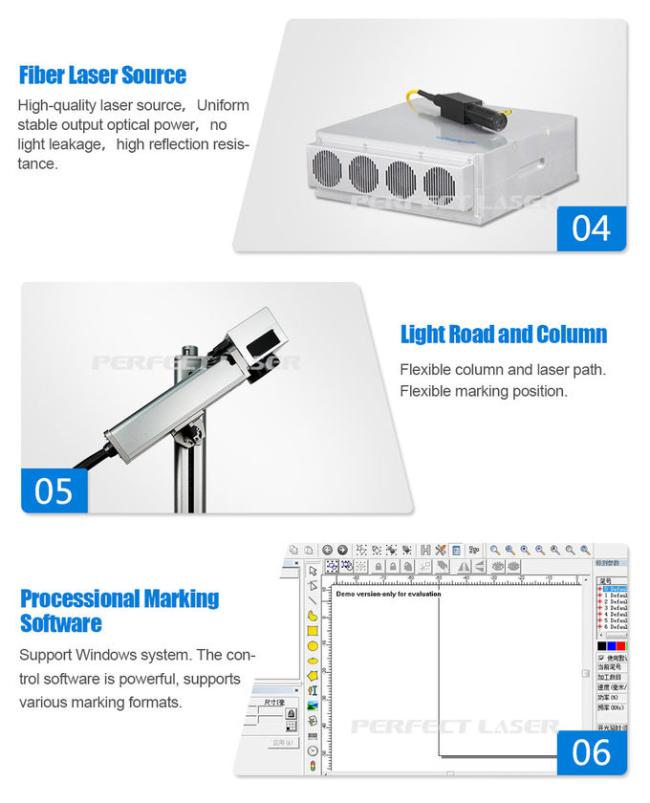

- Equipped with a high-quality laser source, this laser marker delivers uniform beam quality, stable power output, and strong resistance to back reflection, ensuring reliable performance for precision marking applications.
- Rotary lifting structure with internal storage design combines clean aesthetics with user-friendly operation.
- Compatible with the WINDOWS operating system; the control software supports multiple file formats and is easy to learn.
- Featuring a dual red-light positioning galvanometer scanning head with a durable metal housing, this laser marker offers high stability, low maintenance, and supports optional upgrades to high-speed digital galvanometer systems.
This small laser engraver can process a wide range of metals including stainless steel, iron, aluminum, copper, and silver, as well as selected plastics such as PC, ABS, PVC, and PC+ABS.
Widely applied in 3C electronics, automotive components, electronic parts, integrated circuits, electrical equipment, precision instruments, household devices, building materials, watches, jewelry, handicrafts, and gift customization industries.
| Product Name | Small Desktop Laser Marker |
| Model | PEDB-100A |
| Output Power | 20 Watts |
| Pulse Repetition Frequency | 27-60khz |
| Marking Range | 100-150mm (Optional) |
| Marking Speed | ≤10000mm/s |
| Marking Depth | ≤1mm(Depending On Power and Time) |
| Laser Wavelength | 1064±5nm |
| Beam Mass M2 | ≤1.4 |
| Output Power Stability | <3% |
| Repeatability Precision | ±0002 |
| Minimum Marker Line Width | 0.1mm |
| Minimum Character Height | 0.15mm |
| Cooling Mode | Air cooling |
| System Power Supply |
500W1220V/50Hz (110V Can Be Connected) |
| Temperature and Humidity | 0-40℃,30%RH-85%RH |
| Support System | Windows Operating System |
- Prompt deliver at the very day.
- Well-trained and disciplined packing team.
- After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
- Sophisticated and professional logistic agent.
- 100% custom pass guaranteed.
- Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
- Flexible and Untraceable payment terms.
- Good after-sale service.
- We offer high quality products at competitive price in quick delivery.
