Metals / PVC Small Laser Engraving Machine 10w 20w Air Cooling With Max Fiber Laser
10w 20w Small Laser Engraving Machine With Max Fiber Laser(Model:PEDB-100A)
Small Laser Engraving Machine Introduction
Laser marking is widely applied to direct part marking. Perfect Laser’s small laser engraving machine can handle nearly every industrial etching, marking or engraving task. . Perfect Laser has been an industry leader for more than 20 years.
Perfect Laser’s small laser engraving machine is a good solution for metals, plastics, ceramics, glass etc. It can be utilized to mark 2D and alphanumeric codes, simple serial numbers, complex logos, graphics, structures.
Small Laser Engraving Machine Features
1. This small laser marking machine has beautiful appearance, compact structure and small floor space.
2.With high quality key component, the machines are processed efficiently and contact-free. All desired contents are applied repeatedly accurate and reliably.
3.Our machines produces quality marking which can be resistant to different surface treatments, such as heat treatments, e-coating, chromate coating, and shot blasting.
4.With quality Max Laser, our machine is 100% laser safe for operators and compliant with international safety standards, as well as machine safety standards.
5.The column of the small laser marking machine can be rotated 360° to facilitate multi-angle marking of objects that are not easy to move.
Small Laser Engraving Machine Application Range
1.Applicable materials: this mini laser marking machine is widely suitable for most metal materials, PVC, etc.
2.Applicable industries: the small laser engraving machine is widely applied in hardware products, tool accessories, precision instruments, glasses and watches, jewelry, auto parts, plastic buttons, electronic components, mobile communication, PVC pipe, sanitary ware and other industries.
Small Laser Engraving Machine Specifications
| Model | PEDB-100A Small Laser Engraving Machine | |
| Laser Type | Fiber Laser (Brand:Max) | |
| Laser Power | 10w | 20w |
| Laser Wavelength | 1064 nm | |
| Beam Quality | M2<1.4 | |
| Modulation Frequency | 20-50 khz | 30-60 khz |
| Carving Line Speed | 0-8000 mm/s | |
| Marking Speed | 600-1000 Character / min | |
| Focus mode | Manual / Auto | |
| Minimum Line Width | 0.02 mm | |
| Minimum Character | 0.15 mm | |
| Marking Size |
110mm×110mm (Standard) 70mm×70mm (Optional) |
|
| Repeatability | ±0.002 mm | |
| Cooling Method | Air Cooling | |
| Use environment | Clean or less dust | |
| Working Temperature | 10-35 ℃ | |
| Machine Power | ≤ 100 W | ≤ 160 W |
| Voltage | AC220V±10%,50 HZ | |
| Working Desk Size | 270mm×210mm | |
| Lifting Range | 0-300mm | |
| Column Rotation Angle | 360° | |
| Light Bridge Displacement Stroke | 110mm | |
| Computer Configuration Parameters | ||
| CPU | Intel J1900 Processors | |
| RAM | ADATA 4G DDR3L 1600 | |
| BIOS | AMI EFI BIOS | |
| Super I/O | Winbond W83627DHG-P | |
| Ethernet | 1x LAN Intel I211 (post IO interface) | |
| Graphic Control | Intel HD Graphics | |
| Monitor | Optional | |
| Display Interface | 1x HDMI:HDMI Support resolution up to 1920×1200@60Hz | |
| Hard Disk | 32G | |
| USB Interface | 4x USB2.0 | |
| Serial Port | 1x RS232 (pin), and COM1, also supports RS422, RS485 mode | |
| Operating System | Windows 7 32-bit Chinese Professional Edition;supports Windows 7/Windows 8/Windows 10/Linux | |
| Operating Temperature | 0℃～ 60℃ | |
| Storage Temperature | -40℃～ 85℃ | |
| Humidity | 5% ～ 95% relative humidity, no condensation | |

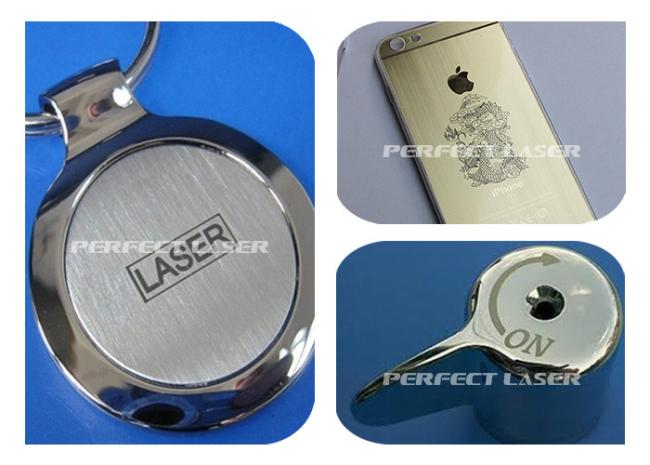

Small Laser Engraving Machine Sample Show
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
