1070nm 24m/Min 1000W Fiber Laser Cutting Machine 3000*1500mm
3000*1500mm Stainless Steel Fiber Laser Cutting Machine For Sale
★ Product Introduction:
This fiber laser cutting machine for sale has an atmospheric appearance and a wide format, suitable for cutting materials of various sizes and various complicated and fine patterns. The cutting speed is fast and the cut products are smooth and not piercing, and the work efficiency is high. It can be operated wirelessly from a long distance and has strong security. The fiber laser cutting machine for sale is equipped with Windows operating system, which is easy to operate.
★ Features:
1. Using non-contact cutting, the cut product has smooth edges without burrs.
2.High power, can cut thick metal and fast cutting speed.
3.High efficiency photoelectric conversion, low power consumption and low cost.
4.Equipped with Jiaxin laser software system, easy to operate.
5.The working table is large, which can cut large-size materials and intricate patterns.
★ Application:

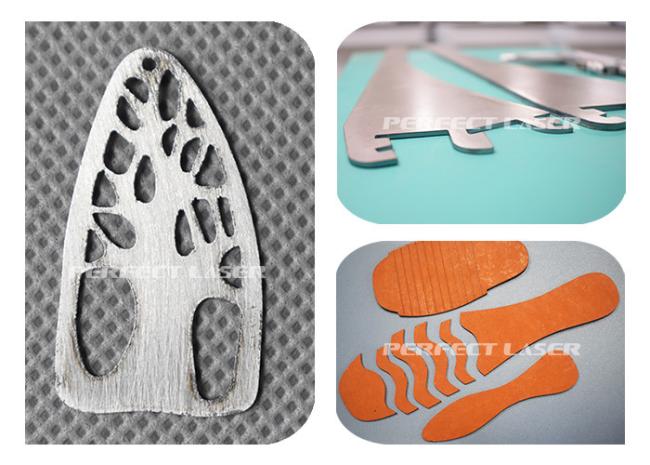

1. The fiber laser cutting machine for sale is mainly used for rapid cutting of carbon steel, stainless steel, aluminum alloy, titanium alloy, silicon steel, galvanized sheet, aluminum, copper and other metal materials.
2.This optical fiber cutting machine is mainly used in rail transit, construction machinery, food machinery, textile machinery, air conditioning manufacturing, elevators, construction machinery, environmental protection machinery, advertising and decoration industries.
★ Technical Parameters:
| Product Name | Industrial Laser Cutting Machine | ||
| Model | PE-F1000-3015 | PE-F1500-3015 | PE-F2000-3015 |
| Laser Power | 1000 Watts | 1500 Watts | 2000 Watts |
Max. Cutting Thickness (mm) | 8-10mm carbon steel 4-5mm stainless steel | 14-16mm carbon steel 5-6mm stainless steel | 18-20mm carbon steel 7-8mm stainless steel |
| Laser Type | Fiber Laser | ||
| Laser Technology | Germany Technology | ||
| XYZ Working area | 1500 x 3000 x 150 (mm) | ||
| Max. Cutting Speed | 0-24 Meters / Min (up to materials) | ||
| Transmission system | High Precision Gear Transmission | ||
| Table-driven system | Japanese Import Panasonic Servo Motor & Driving System | ||
| Focus Method | Dynamic Auto-Focusing System | ||
| Control Method | DSP Handle Offline Movement Control | ||
| Location precision | ≤±0.05 mm | ||
| Re-location precision | ±0.02 mm | ||
| Max. moving speed | 100m/min | ||
| Laser wavelength | 1070nm | ||
| Minimum line width | ≤0.1mm | ||
| Supporting Format | PLT, DXF, BMP, AI | ||
| Power demand | 380V / 50hz | ||
| Worktable max. load | 1000 Kgs | ||
| Dimension (L*W*H) | 4000 × 3000 × 2000mm | ||
| Control software | Perfect Laser Professional Stainless Steel Laser Cutting MachineSoftware | ||
| Guarantee | 2 Years Guarantee for Fiber Laser Source 12 Month Guarantee for Industrial Laser Cutting Machine | ||
| Training | Perfect Laser Will Offer VCD Training Video for Easy Learning Engineer Overseas Installation & Training is also Available | ||
★ Machine parts:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
