1064nm 20W Liftable Flying Laser Marking Machine For Production Line
Liftable flying laser marking machine for production line
★ Product Introduction:
This laser making machine uses high-quality imported lasers and a flying marking control system independently developed by Schwab Laser, which is suitable for mass production marking on the assembly line. The laser making machine is equipped with automatic induction function, marking fast and accurate marking. The body is equipped with a convenient bracket, and the marking height can be adjusted freely to meet various marking requirements. The laser making machine is easy to operate and has a small footprint for easy movement and transportation.
★ Features:
1. On-the-fly marking is fast and efficient, and it is suitable for marking on mass production lines.
2. Equipped with a convenient stand, which can adjust the height up and down to realize the freedom of marking height.
3.Using imported laser, the marking effect is good and the work is stable and not easy to break.
4. Simple operation and low labor cost.
5. Support 2D coding, applicable to various computer systems and various languages, with wide coverage.
6. The conveyor belt can be customized for use with high flexibility and wide application range.
★ Application:
1. This machine is widely used in metal, nylon, plastic, rubber, resin, ceramics and other materials.
2. This machine is widely used in food printing, medicine printing, soft drink printing, cigarette code, wine industry, mineral water, daily cosmetics, wire and cable and various production lines.
★ Technical Parameters:
| Model | PEDB-600 |
| Laser Type | Fiber Laser |
| Laser Output Power | 20W |
| Laser Wavelength | 1064nm |
| Marking Area | 110×110mm / or Customized |
| Marking Speed | 250 Characters / Second |
| Minimal Character Size | 0.25mm |
| Minimal Line Width | 0.015mm |
| Power Supply | 110/220V 50/60Hz |
| Cooling Method | Air-Cooling |
| Repetition Rate | 0~50KHz |
| Bitmap Format | BMP, JPG, PNG, TIF, PCX, TGA, ICO, PNG, GIF, PLT, etc., |
| Power Consumption | 0.5 kw |

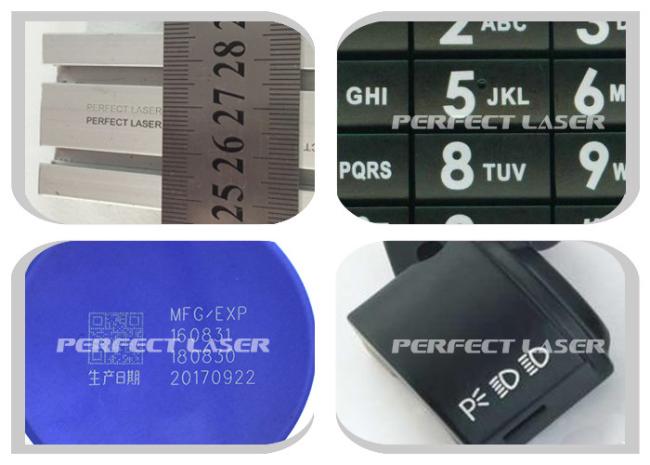

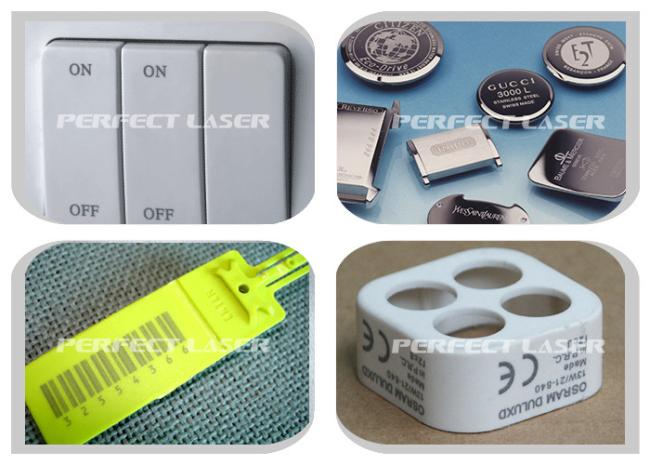

★ Sample Shows:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
