10w - 50w Blue Handheld Laser Engraver Air Cooling For Metal Plastic
10w 20w 30w 50w Blue Handheld Laser Engraver For Metal And Plastic
★ Product Introduction:
With our handheld laser engraver machine , you can mark bar code, QR code, serial number and logos on all metals, such as carbon steel and stainless steel.
We have designed portable laser marking machine which enable our customers to mark everywhere.
★ Product Features:
♠Applicable to metal materials and part of non-metal materials, like gold, silver, aluminum, steel, copper, and plastic, leather etc
♠ Handheld type, mini size and portable, the laser head can be taken off to engrave, it can be used to fixed and move engraving, suitable for finished products, high objects, large objects, immovable objects, with handle design, easy to carry
♠ Air cooling with beautiful holes design in the host, long time working will not affect machine quality
♠ Sino high-speed galvanometer scanner, with double red light pointers for focusing
♠ Brand F-Theta field lens, 110*110mm working area
♠ Brand laser source, full power and stable quality, Lianpin, Max, Raycus, JPT, and IPG brand are optional
★ Application:

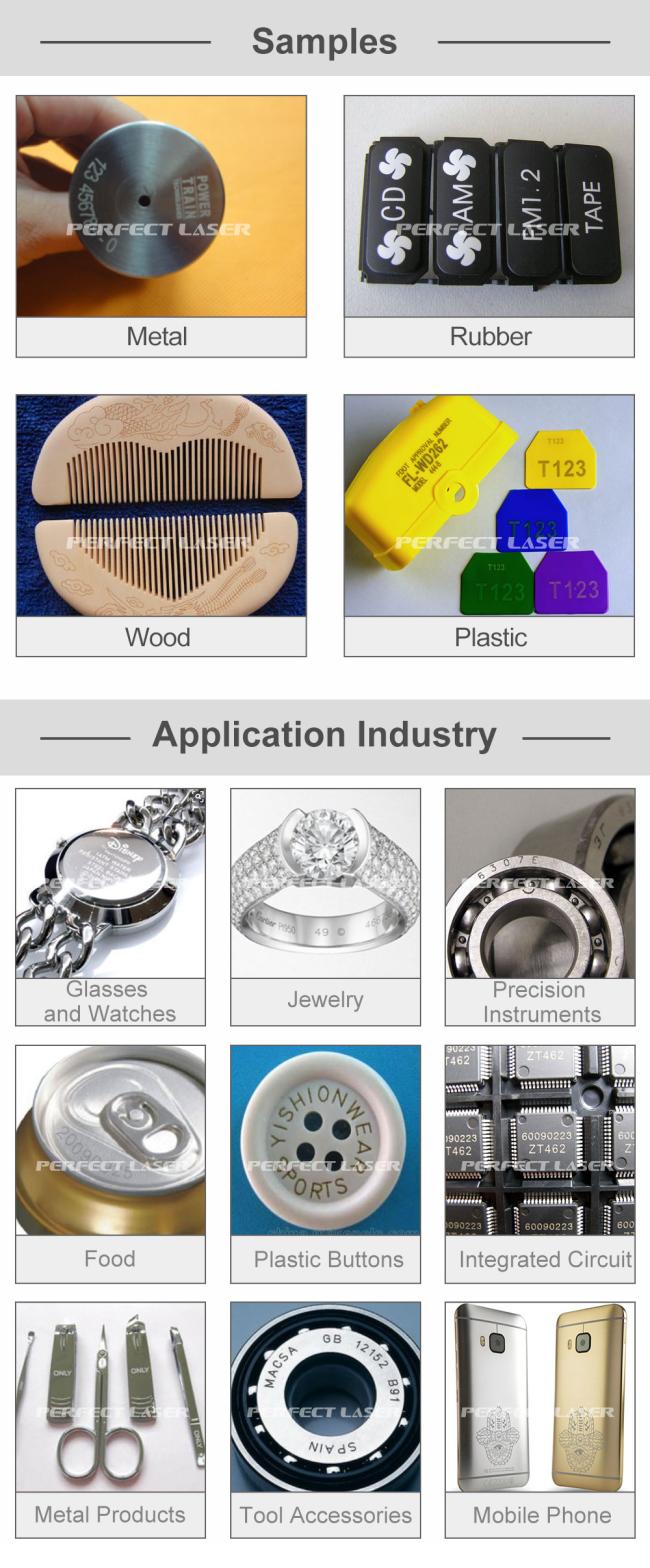

Applicable Material: Metal: Such as gold, silver, copper, iron, zinc, aluminum, stainless steel and so on. Hard Plastic: PE, PP, PVC, etc. also include general engineering plastics and special engineering plastics.
Applicable Industrial: Electronic components, hardware tool products, electrical products, consumer goods, sensors, auto parts, 3C electronics, handicrafts, precision equipment, gift jewelry, medical equipment, high and low voltage electrical appliances, bathroom industry, battery industry, IT industry and other fields
★ Technical Parameters:
| Laser Marker Model | PEDB-400H |
| Type | Handheld |
| PC | Without PC |
| Laser Source | |
| IPG Series | Pulse, high energy ytterbium doped fiber laser |
| Operating Mode | Pulse |
| Polarization | Random |
| Average output power | 20W - 50W |
| Central emission wavelength | 1064 nm, Q switch operation Output power adjustment range is 10% -100% |
| Transmit bandwidth(FWHM) | <10nm |
| Long-term average power instability | <5% |
| Pulse width (FWHM) | 100ns |
| Laser connection time | 180 microseconds |
| Laser disconnect time | 180 microseconds |
| Pulse repetition rate (kHz) | 20-80kHz |
| Per pulse energy (PRR = 20 kHz) | 0.95 MJ |
| Beam quality | <1.8 |
| Output fiber transmission length | 3m |
| working voltage | 220V |
| Maximum power consumption | 600W |
| Net size | 70*20*50cm |
| Laser System | |
| Scanning speed | 0-7000mm/s |
| Marking speed | 0-8000mm/s |
| Marking size | 110mm×110mm (F-theta 160) |
| Spot size | ≤ 40 micron (F-theta 160) |
| Cooling system | Air cooling |
| Red point laser | 650 nm, red light marking guide |
| Continuous working time | ≥16h |
| Humidity | 45 to 85% (without condensation) |
| Working temperature | 0~40℃ |
| Control system | Laser marking (Chinese version) |

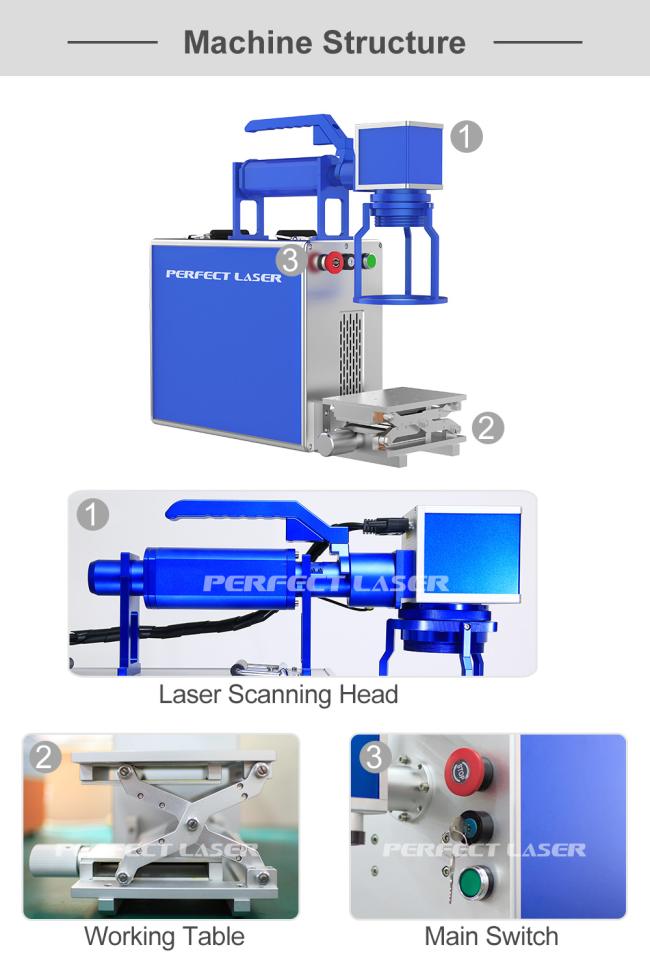

★ Machine parts:
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
