Cover Protection Laser Cutting And Engraving Machine 900w For Wood Leather Non Metallic

Price Negotiable
Price: Negotiable
MOQ: 1 Unit
Delivery Time: 5-7 Working Days Lead Time
Brand: Perfect Laser
Product Description

60W 80W 100W 150W Cover Protection Features Laser Cutting And Engraving Machine For Wood Leather Non-metallic Materials

(Model:PEDK-13090)



★ Product Introduction:



Laser cutting and engraving machine PEDK -13090 with professional cellular platform, can also be optional blade platform, suitable for cutting a variety of material objects, carving area of 1300mm x 900 mm, for large-area materials can also be easily cut.

Support GIF, DXF, PCX and other picture file formats, more convenient operation.





★ Product Features:



The machine with organic cover protection function, in the process of machine work, if the staff hit the boot cover, the machine will immediately stop working, effective protection of staff safety.

Optional electric shift working platform, suitable for various thickness of cutting materials. Optional blade platform, acrylic and wood materials can be easily carved or cut.

Using the LCD display screen, support for PC and USB2.0 ports, DSP offline control system, easier operation.

Laser cutting and engraving machine with red light indicator light, in the accurate positioning of cutting materials at the same time, the operator can also master the processing position at any time, to achieve perfect cutting.

The laser cutting and engraving machine uses a stepped-shaped drawer-type design, so that the machine can better and accurately collect the cutting objects.

Laser cutting and engraving machine with water cooler water protection device, the machine is more durable.







★ Application:



Laser cutting and engraving machine can be used for cutting and carving on organic glass, wood, leather, cloth, paper, plastic, marble and other non-metallic materials.

Laser cutting and engraving machine is widely used in advertising, automobile, toys, handicrafts, machinery, electronics, clothing and other industries.





★ Technical Parameters:



Model

PEDK-13090 laser cutting and engraving machine

Working Area 1300x900mm (4 feet*3 feet) Co2 Laser Cutters
Laser Power 60w / 80w / 100w / 150w
Laser Type Hermetic and Detached Co2 Laser Tube
Engraving Speed 0-60000mm/min
Cutting Speed 0-10000mm/min

Cutting Thickness

0-25mm acrylic (Others Determined by Materials)

Repeat Location Accuracy +/-0.0125mm
Driving Mode DC0.8A 24V Stepper Motor
Position System Red dot Laser Pointer
Interface USB port transfer
Voltage AC220v/50hz or 110v/60hz
Machine Power 900w
Controlling System CNC Professional Control System
Support Graphics Mode BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc.
Cooling Mode CW-3000 Water Cooling (with Protection Function)
Auxiliary Devices Exhaust Fan and Exhaust Pipe
Cutting Platform Professional Thickening Strip or Honeycomb Work Table
Power Control Mode Laser Energy Combining Movement Control System
Software Professional Reader Laser Cutting Software
Operating Temperature 0-45C
Operating Humidity 5-95%
Packing Wooden Box
Guarantee Time 12 Months for Machine, 3-10 Months for Laser Tube
Operation VCD Training, Engineer Overseas Available
Machine Size

1970mm*1480mm*1250mm

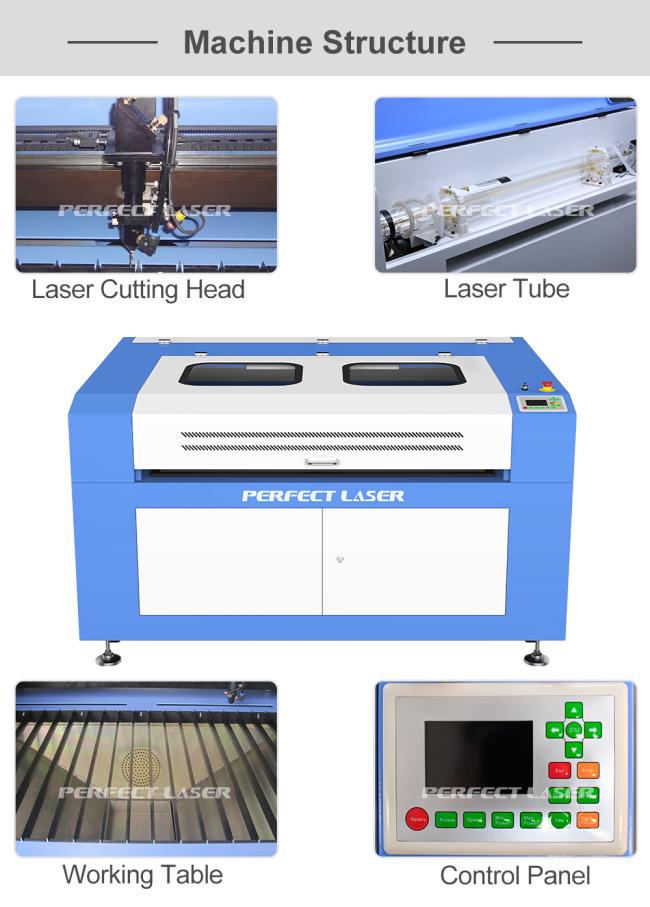

★ Machine parts:







★ Packaging & Delivery:



1. Prompt deliver at the very day.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



★Competitive Advantages:



1. 100% custom pass guaranteed.

2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

3. Flexible and Untraceable payment terms.

4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.
