30 Ton Tank Turning Welding Roller Conventional Pipe For Wind Tower

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: 15 days

Brand: Weldsuccess

Product Description

Product Description:

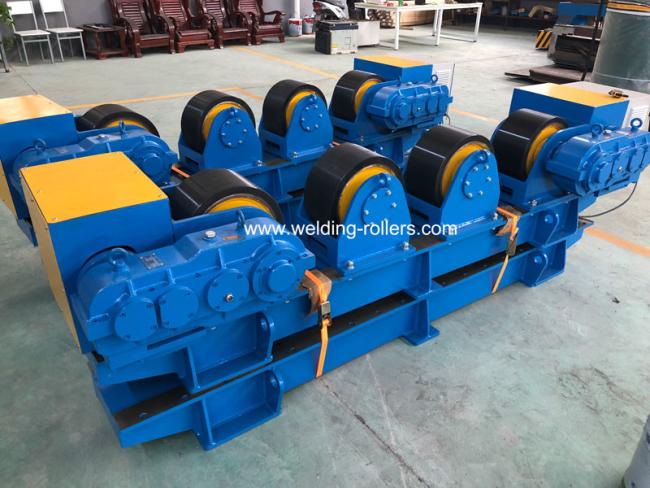

1. Tank turning rolls Consist : One powered roller , One idler roller , Electric control system

2. Adjust way : Adjust the pipe diameter automatically with diameter 500~3500mm.

3. Voltage :380 V 50 Hz 3Phase all available

4. Tank turning rolls Control Way : Remote hand control box / Wireless hand control box

5. Roller Material :PU

Features:

1. Movable rotators can auto move on the rails for the third single pipe butt welding.

2. It will be controled by Hand Remote Control Box or Wireless Control Box.

3. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.

4. All our pipe welding rotators have 20% over weight design, but we suggest used on the safety rangs.

Technical Parameters:

Model	HGK-30
Turning Capacity	30 ton maximum
Drive Load Capacity	15 ton maximum
Idler Load Capacity	15 ton maximum
Adjust Way	Bolt adjustment
Motor Power	2*1.5KW
Vessel Diameter	500~3500 mm
Rotation Speed	100-1000mm/min
Speed control	Variable frequency driver
Roller wheels	PU
Roller size	Ø350*200mm
Voltage	380v±10% 50Hz 3Phase
Control system	Foot pedal 15m cable
Color	Customized
Warranty	One Year

Applications:

1. Pressure vessel;

2. Pipe manufacturing industries

3. Wind power fabrication

4. Chemical & fuel storage tank fabrication

5. Any heavy cylindrical job

Support and Services:

1. We provide one year guaranty period for the whole machine quality.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.

Packing and Shipping:

1.The Pipe Welding Rotator will be securely packaged and shipped in a wooden crate.

2.The crate will be sealed with screws and nails to ensure that it is secure and will not be damaged in transit.

3.Once it is shipped, it will be tracked with a tracking code to ensure that it is delivered safely and on time.

4. All boxes are labeled with the product name and number, and the shipper's contact information.

FAQ:

Q1: What is your product name?
A1: Our product name is Weldsuccess Tank Turning Rolls.
Q2: Where is it made?
A2: It is made in China.
Q3: What certifications does it have?
A3: Our product has ISO/CE/CO certification.
Q4: What is the order quantity?
A4: The minimum order quantity is 1 set.
Q5: What is the price and payment terms?
A5: The price is negotiable and the payment terms are L/C, D/P, T/T. The packing is wooden case and the delivery time is 15 days. We can supply 5 sets per month.
