LHC 3040 Welding Manipulators for 3000 mm Diameter 4000 mm Length Tank welding
LHC 3040 Welding Manipulators for 3000 mm Diameter 4000 mm Length Tank welding
Welding Manipulator Description
1. Structure:Fixed ,Fixed with Rotation and Movable with Rotation.
2. Equipment is cold-blended and go through annealing treatment.
3. There is anti-failing device to ensure the safety of boom lifting.
4. Boom retracting adopts VFD,being stable and reliable.
5. X-Y slide is fixed on one end of boom, controlled by hand panel.
6. Column rotation controlled by manual operation or electric drive.
7. Optional: Trolley,seam tracking and monitor system, and flux recovery machine.
Welding Manipulator Column And Boom Specifications
|
Model |
LHC-3030 |
LHC-3040 |
LHC-4050 |
LHC-5060 |
|
Effective Vertical Lifting Stroke of Boom (mm) |
3000 |
3000 |
4000 |
5000 |
|
Effective Horizontal Retracting Stroke of Boom (mm) |
3000 |
4000 |
5000 |
6000 |
|
Boom Lifting speed (mm/min) |
1 |
|||
|
Boom Retracting speed (mm/min) |
0.12-1.2 |
|||
|
Column Rotation Angle (°) |
□ Stationary □ ±180° |
|||
|
Column Rotation Way (rpm) |
□ Stationary □ Manual □ Motorized(0.1) |
|||
|
Trolley Traveling Way (mm/min) |
□ Stationary □ Manual □ Motorized(1.5/3) |
|||
|
Option : |
□ Seam Tracker □ Flux recovery machine |
|||
|
Welding Source □ Chinese □ Lincoln Brand |
||||

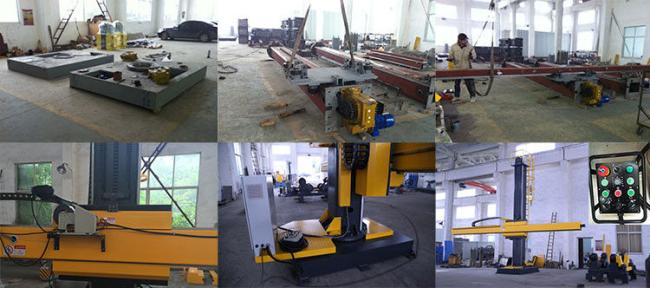

Welding Manipulator Column And Boom Productive Process
1. Welding manipulators are the automatic welding equipment composed together with welding power.
2. It can be used together with welding rotators or welding positioners,and widely used in industries
as boiler, pressure vessel, petro chemical machinery for welding of inner and outer longitudinal seams
and circumferential seams.
3. It features in advanced structure complete function easy operation to make sure of welding quality.
Sale of services For Welding Manipulator
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
After-sales service For Welding Manipulator Column and Boom
1. Our products for one year warranty and life long maintenance.
2. 24-hour telephone service.
3. A large stock of components and parts, easily-worn parts.
FAQ
Q: Can your machine or other products be customized?
A: Yes,we are an professional manufacturer who specializes in welding equipment about 15 years old,
we have a strong design team ,so any conventional products can be customized.

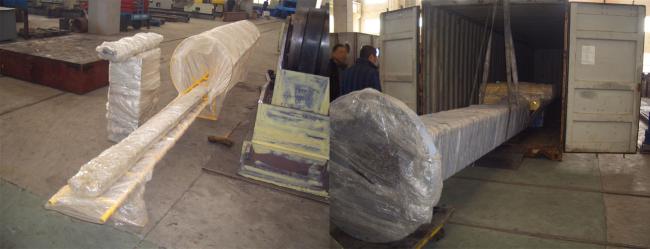

Q: What about the transportion?
A: Usually we take seaway ,cause its more convenient and cheaper for big machine,of course ,
if it is allowed ,we also can take train ,its according to real condition.
When you send us the inquiry, please advise us your single tank diameter and length.
THIS ONE WAS FOR RUSSIA MARKET,NOW PLEASE SENS US YOUR INQUIRY.
