Hydraulic Lifting Welding Positioner Turntable With 5M Cable 2200 Lb Capacity
A welding positioner is a tool used to move, tilt or rotate the workpiece during welding. This enables the welder to reach all sides of the workpiece easily, without needing to constantly change their position. It helps to increase welding productivity while reducing the welder's workload and fatigue.Hydraulic Lifting Pipe Welding Positioners Turntable with Remote Control 5M Cable 2200 lb Capacity
1T Hydraulic Pipe Welding Positioners Brife info
1. Voltage : 110V - 600V 50 / 60 Hz 1P / 3P
2. Tilting angle : 0 - 90 ° / 0 - 120 ° available.
3. Hydrulic Lifting System 800 mm lifting stroke
4. Original : Our Factory , Wuxi China
5. Package : Wooden case / Electric Control System
Pipe Welding Positioners Application
1. Lift type pipe welding positioners is mainly used to place the workpiece in the best position for
welding and assembling with the worktable elevating, rotation, tilting.
2. Pipe welding positioners can be used for various automatic or manual welding, butt welding or face welding of pipe, as well as welding of shafts, discs, barrel, etc, with advantages of compact volume, good appearance,
light weight and easy operationThe positioner can be supplied for interfacing with robot or
welding manipulators, to realize the welding automation.
Hydraulic Type Pipe Welding Positioners Detail Parameter
|
Model |
HBJ-03 |
HBJ-06 |
HBJ-12 |
HBJ-30 |
HBJ-50 |
|
Max Capacity |
300 kg |
600 kg |
1.2 T |
3 T |
5 T |
|
Table Diameter (mm) |
600 |
1000 |
1200 |
1400 |
1500 |
|
Rotation Power (kw) |
0.37 |
0.75 |
1.1 |
1.5 |
3 |
|
Rotation Speed (rpm) |
0.1-1 |
0.09-0.9 |
0.05-0.5 |
||
|
Tilting Power (kw) |
/ |
0.75 |
1.5 |
2.2 |
3 |
|
Tilting Angle (°) |
0-90 |
0-90 |
0-90 |
0-90 |
0-90 |
|
Tilting Speed (kw) |
Manual |
1.1 |
0.67 |
0.23 |
0.14 |
|
Option: |
□ Foot Pedal □ Wireless Control □ Tilting Angle 120° |
||||
2. For the longer and more offset from gravity center workpiece, large model should be chosen.
4. Head and tail stock , lifting model , 360° tilting are all available.
5. All CE certificates supported brand
Competitive Advantage
1. Pipe welding positioners are easy to control with electric cabinet and hand control panel.
2. Slewing bearing will ensure turning and over turning smoothly.
3. Several concentric grooves are processed onto the surface of the worktable to
help position the work piece at the center.

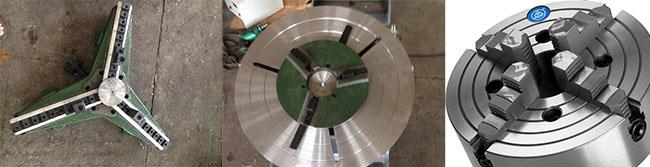

Clamps for reference
1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.
2. Special clamps are available,but we have to design according to your work piece detail drawings.
3. Special tilting platform is available.
Delivery and after sale service
1. One / Two sets pipe welding positioners ,we will package in wooden case.
2. If order quantity is enough for one container, we will package in container directly.
3. We have engineers supply you the door to door installation service.
4. All the installation drawings and work manual document will send to you via Email.
5. We are the factory, so we can supply you all the technology problems helps about pipe welding positoners.
