600kg Pipe Welding Positioners with Foot Pedal Control 1.1 KW Tilting Power
600kg Pipe Welding Positioners with Foot Pedal Control 1.1 KW Tilting Power
Pipe Welding Positioners Brife Info
1. Pipe Diameter : 50 - 300 mm
2. Voltage : 110V - 600V 50 / 60Hz all available
3. Foot Pedal Tilting And Rotation Control
4. Package : Wooden Case
5. Delivery Time : 7 Days
Pipe Welding Positioners Description
1. The worktable could be rotating 360°and tilting 90°to allow work piece to be welded at the best position.
2. Variable Frequency control (VFD) speed by rotating and motor-driven speed regulation by tilting from which customers can choose in line with operational requirements.
3. Can help for all types of manual welding and auto-welding.
4. Controlled by step-less frequency conversion.
5. If work piece is longer or irregular shape, larger specification is more suitable due to eccentricity and gravity center.
Specifications
|
Model |
HBJ-03 |
HBJ-06 |
HBJ-12 |
HBJ-30 |
HBJ-50 |
|
Max Capacity |
300 kg |
600 kg |
1.2 T |
3 T |
5 T |
|
Table Diameter (mm) |
600 |
1000 |
1200 |
1400 |
1500 |
|
Rotation Power (kw) |
0.37 |
0.75 |
1.1 |
1.5 |
3 |
|
Rotation Speed (rpm) |
0.1-1 |
0.09-0.9 |
0.05-0.5 |
||
|
Tilting Power (kw) |
/ |
0.75 |
1.5 |
2.2 |
3 |
|
Tilting Angle (°) |
0-90 |
0-90 |
0-90 |
0-90 |
0-90 |
|
Tilting Speed (kw) |
Manual |
1.1 |
0.67 |
0.23 |
0.14 |
|
Option: |
□ Foot Pedal □ Wireless Control □ Tilting Angle 120° |
||||
Competitive Advantage Of Pipe Welding Positioners

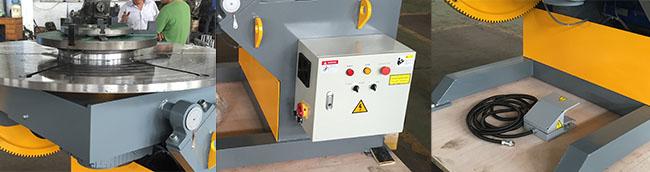

1. It’s easy to control with electric cabinet and hand control panel
2. Sand blasting treatment to main welding parts before painting
3. All motion parts have lubrication system
4. Main electric elements are ABB / Siemens brands
Clamps for reference
1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.
2. Special clamps are available,but we have to design according to your work piece detail drawings.
Certificate and Company Work Shop
1. All our pipe welding positioners have passed CE test and get the CE certificates. So it's ok to export the European.
2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.
3. If possible, please send us your work piece general drawings when you order the positioner.
4. You are welcome to visit our company.
Door to door delivery is available.
SO JUST SEND YOUR INQUIRY NOW.
