160T / 200T Capacity Tank Turning Rolls 2*4 KW Double Motor 200T Welding Rotator

160T / 200T Capacity Tank Turning Rolls , 20 Days Delivery Time , 2*4 KW Double Motor 200T Welding Rotator

Specification

1. Capacity : 200T

2. Roller Diameter : 700 mm

3. Roller Width : 300 mm

4. Roller Material : Rubber with Metal together

5. Turning Speed : 1-1000 mm /Min

6. Motor Power : 2*4 KW

Use Of The Environment

1. Site of use should be no serious harm or affect the normal use of roller frame explosive or corrosive industrial gases, water vapor, and chemical sediments.

2. The ambient air temperature range: 0-45 ℃

3. Humidity: 95% max.

4. Power supply: Voltage AC380V ± 10% 50Hz 3P / As per requirement.

5. Frequency: 50Hz ± 1

6. Delivery time : 20 days

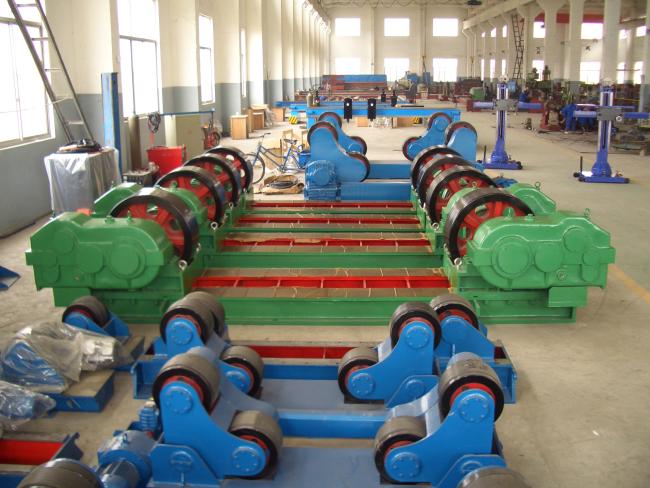

7. This picture was exported to Vietnam in 2007.

Description

1. One set rotator consists of one powered roller with one idler roller.

2. Double motors to ensure turning steady and safe.

3. Polyurethane roller, Rubber Roller or steel roller are all available.

4. Remote control or Wireless control box with digital display of turning speed.

Equipment Parts Brand

Competitive Advantage

1. According to the customer’s requirements, the roller has three forms: sub-rubber tire roller, steel wheels, steel and plastic combination wheel; it can joint control with other equipments.

2. The roller is mainly used for the welding Polish rubber lining and assembly of cylindrical roller shell, but also can assembly and weld together with other tooling for the cone inequality diameter rotary.

3. This product is widely used in wind power, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, welding repair industry.

Attention Please

1. Please contact us if you need any help for your customs clearance.

2. Please let us know if any part broken during the delivery, we will send a new one free at once.

3. Please send us the working pictures after installation. We will give you some suggestion if needed.

4. You also can get the door to door price , then you do not need to pay the tax any more.

5. We also could design and produce according to the customer's requirements, if you need more information, welcome to contact me, thank you.

Please send us your inquiry now!
