L Shape Tube Welding Positioner With 600mm Hydraulic Lifting Stroke , CE Supported

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: 20 Days

Brand: Weldsuccess

Product Description

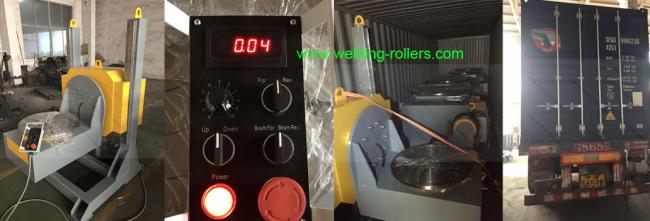

L Shape Welding Positioner With 600mm Hydraulic Lifting Stroke, CE Certificates Supported

Hydraulic lifting L shape welding positioner

1. L shape welding positioner with ±360 degree tilting angle and ±360 degree rotation angle.

2. Lifting stroke is as per request for different shape work piece.

3. You also can get the video via youtube for this machine.

4. Voltage: 380V 50Hz 3P for Poland Market-Contact sales man Jason Qian

5. Original: Wuxi-China / Wuxi Success Machinery Equipment Co., Ltd

Specification

Model	L - 20	HBJ - 30	HBJ - 50	HBJ - 100	L -150
Max Capacity	2 T	3 T	5 T	10 T	15 T
Table Diameter (mm)	1200	1400	1500	2000	2200
Rotation Power (kw)	1.5	1.5	3	3	3
Rotation Speed (rpm)	0.05-0.5
Tilting Power (kw)	2.2	2.2	3	4	5.5
Tilting Angle (°)	360
Tilting Speed (kw)	0.23	0.14
Option:	□ Foot Pedal □ Wireless Control □ Tilting Angle 360°

Product Application:

1. Turn the work piece to the perfect welding position for auto / manual welding.

2. Tilt the work piece ± 360 °

3. It's easy to control via the remote hand control box.

4. Hydrulic lifting modle with 600mm stroke or as per request.

5. Rotation speed with speed digital readout.

Supply Range

1. L Type Welding positioner (including machine frame, worktable, etc)

2. Electric control system (including electric control cabinet,remote control box and foot)

3. Technical documents (with manual book, conformity certificate, packing list, etc)

4. After sales service supported by Wuxi Success Machinery Equipment Co., Ltd

5. Overseas agence available for some countries.

Installation and comminssion

1. Professional engineering and technical personnel.

2. We will provide you with reasonable and valuable Suggestions and solutions according to your requirements, the engineering feasibility and economic benefit etc .
3. Provide knowledge of equipment operation and maintenance,Allows you to accurately grasp the characteristics of the machine
4. One year warranty, life-long maintenance services through email or telphone .Please feel free to use.
5. Supply all kinds of accessories and replacement.

6. CE certificate supported.

PLEASE SEND US YOUR INQUIRY NOW .
