FG-50 Big Paper Bowl Cup Lid Forming Machine

Price Negotiable

Price: USD 26500 Set

MOQ: 1 Set

Delivery Time: 30 work days

Brand: PRINTYOUNG

Product Description

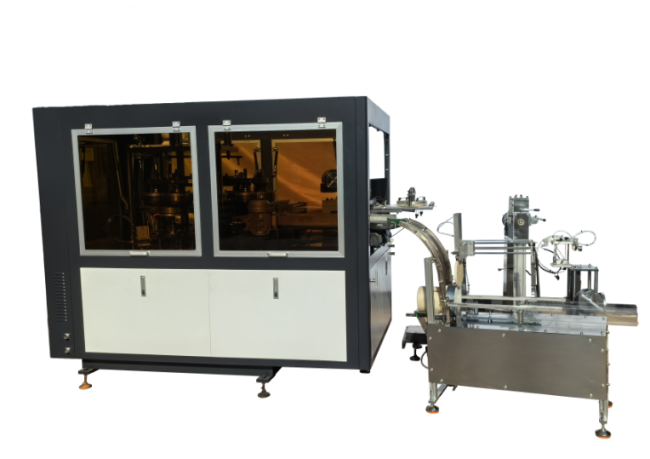

FG-50 Big Paper Bowl Lid Forming Machine

Features

FG-50 paper lid machine is our patent machine,which make paper lid,paper cover.
It’s an automatic machine with the functions:
Automatic roll paper feed,creasing(make the forming guide line),emboss(can make emboss ,logo),cross cut(make hole for straw),punching(punch the roll paper to lid open disc),auto feed disc to mold,heating,folding,knurling,and discharge,with convey and counter for collection.

Advantage:
* Patent equipment,high speed.
* Feed roll paper.
* Auto creasing(guide line).
* Auto emboss(logo and shape on lid top,also make cross cut).
* Auto punching(cut roll paper to lid disc).
* Lid made by one paper disc,save cost.
* PLC control + servo motor feed paper.
* Open cam + shaft + cam + gear control movement,stable and reliable.

Technical Parameters

Suitable Paper	one & two side PE coated paper,glossy coated paper
Paper Weight	250 ~ 350 gsm
Lid Diameter	100 ~ 200 mm
Lid Height	10 ~ 15 mm
Speed	40 ~ 60 pcs/minute
Power Source	AC 380V 3-phase , 50Hz
Total Power	15 kw
Weight	4000 kg
Machine Size	2800 * 2200 * 2200 mm
Air Requirement	consumption 0.02 m³/minute , pressure : 0.5 MPa
