PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads

Price Negotiable

Price: USD 18500 Set

MOQ: 1 Set

Delivery Time: 30 days

Brand: PRINTYOUNG

Product Description

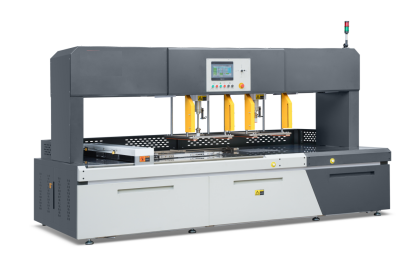

PRY-1080B Paper Stripping Machine with Double Heads

Features

* Fully Automatic.
* Dual-head blanking system for running sheets with nested blanks.
* Heavy-Duty,quality-built gantry structure main frame.
* Frame style support base for precision blanking to ensure damage free loads.

* Operator friendly touch screen for quick and simple programing.
* Equipped with high-precision linear bearing rails and servo motors for smooth and precise movement.
* Big-size working area easy for doing jobs of big-size blanking,which can be customized according to customers’ demand.
* Automatic lubrication system with timely maintenance extends the service life of the machine.
* Hydraulic system with inserted motor and oil temperature cooling fan ensures constant and big working pressure.
* The complete machine is equipped with PLC,and with a touch screen interface in operation.

Technical Parameters

Model	PRY-1080B (double work unit)
Machine Floor Area	3800 * 1850 * 1950 mm
Max. Sheet Size	1080 * 780 mm
Min. Sheet Size	650 * 450 mm
Max. Pile Height	100 mm
Min. Pile Height	40 mm
Max. Blanking Size	500 * 750 mm
Min. Blanking Size	30 * 30 mm
Max. Speed	20 cycles/minute
Pressure	70 bar
Total Power	5kw 380V
Net Weight	3300 kgs
Gross Weight	3500 kgs
