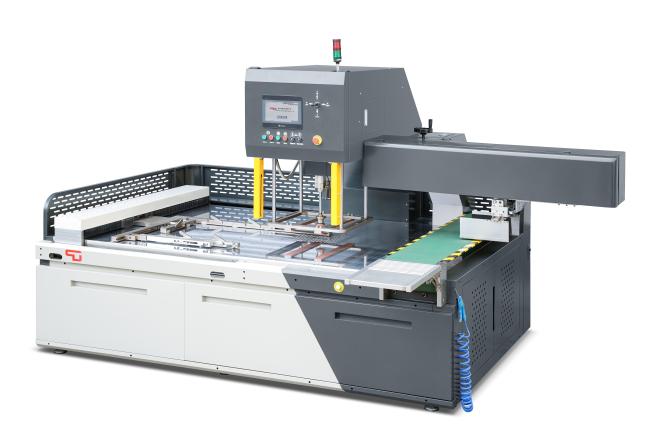

PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm
Price:
USD 22000 Set
MOQ:
1 Set
Delivery Time:
30 work days
Brand:
PRINTYOUNG
Product Description
PRY-1080TR Paper Stripping Machine
Features
* Fully Automatic.
* Single head blanking system for running sheets with nested blanks.
* 180-degree rotating frame to blank the products of opposite layout easily.
* Robot arm picks products automatically after each cycle is completed.
* Heavy-duty,quality-built single support base.
* Equipped with high-precision linear bearing rails and servo motors for smooth and precise frame movement.
* Operator friendly touch screen for quick and simple programing.
* Can be customized according to customers’ job demand.
* Adopts servo motor,double guide rail and ball screw which makes accuracy.
* Hydraulic system with inserted motor and oil temperature cooling fan ensures constant and big working pressure.
* Automatic lubrication system with timely maintenance extends the service life of the machine.
* The complete machine takes much less space and is equipped with PLC,touch screen interface in operation.
* Single head blanking system for running sheets with nested blanks.
* 180-degree rotating frame to blank the products of opposite layout easily.
* Robot arm picks products automatically after each cycle is completed.
* Heavy-duty,quality-built single support base.
* Equipped with high-precision linear bearing rails and servo motors for smooth and precise frame movement.
* Operator friendly touch screen for quick and simple programing.
* Can be customized according to customers’ job demand.
* Adopts servo motor,double guide rail and ball screw which makes accuracy.
* Hydraulic system with inserted motor and oil temperature cooling fan ensures constant and big working pressure.
* Automatic lubrication system with timely maintenance extends the service life of the machine.
* The complete machine takes much less space and is equipped with PLC,touch screen interface in operation.
Technical Parameters
|
Machine Floor Area
|
3600 * 2050 * 1950 mm
|
|
Max. Sheet Size
|
1080 * 780 mm
|
|
Min. Sheet Size
|
650 * 450 mm
|
|
Max. Pile Height
|
100 mm
|
|
Min. Pile Height
|
40 mm
|
|
Max. Blanking Size
|
450 * 450 mm
|
|
Min. Blanking Size
|
30 * 30 mm
|
|
Max. Work Speed
|
20 cycles/minute
|
|
Pressure
|
70 bar
|
|
Robot Arm Grip Range
|
30 ~ 300 mm
|
|
Robot Arm Grip Weight
|
0.05 ~ 1.8 kgs
|
|
Rotate Speed / Route
|
10 ~ 80 mm/second ; 180 degrees
|
|
Total Power
|
5.4kw 380V
|
|
Net Weight
|
2500 kgs
|
|
Gross Weight
|
2800 kgs
|
