CK-420 High Productivity Computerized PLC Automatic Paper Punching Machine with Motor & Engine

Price Negotiable

Price: USD 10500 Set

MOQ: 1 Set

Delivery Time: 15 days

Brand: PRINTYOUNG

Product Description

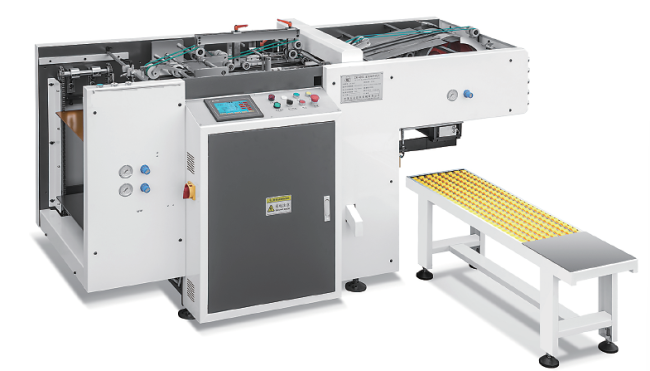

CK-420 Automatic Punching Machine

Features

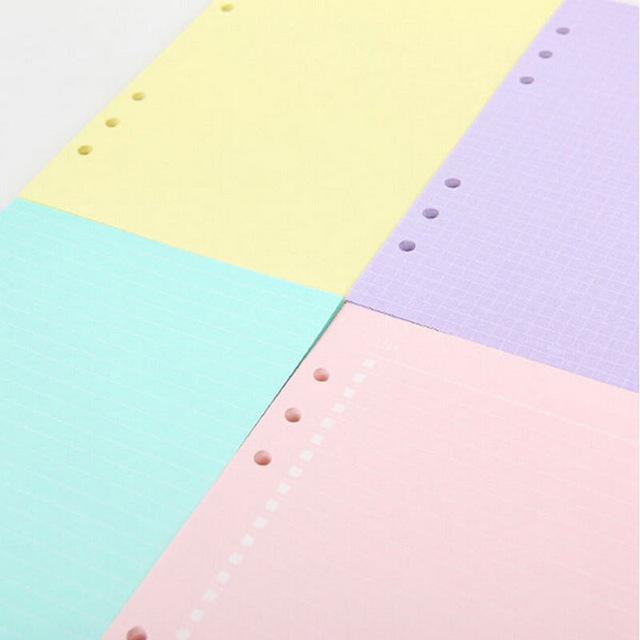

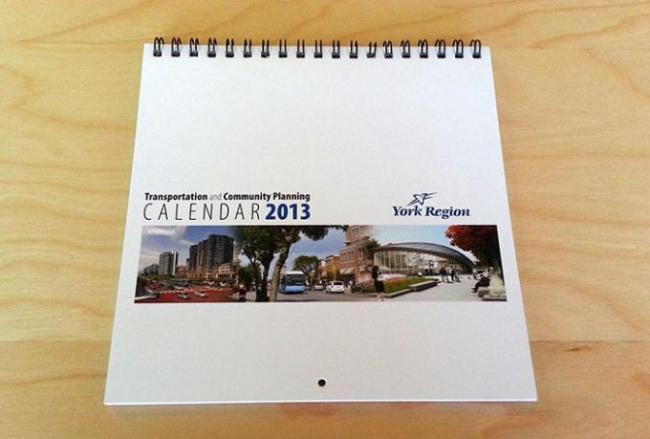

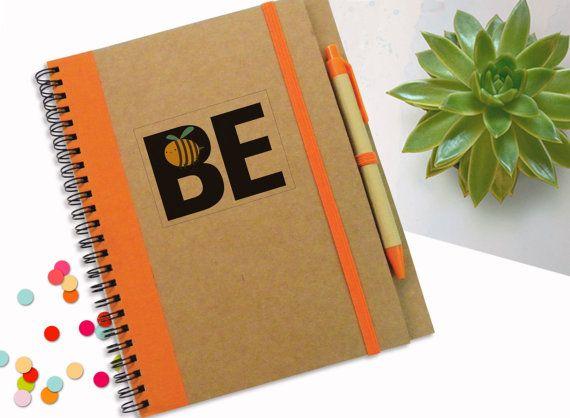

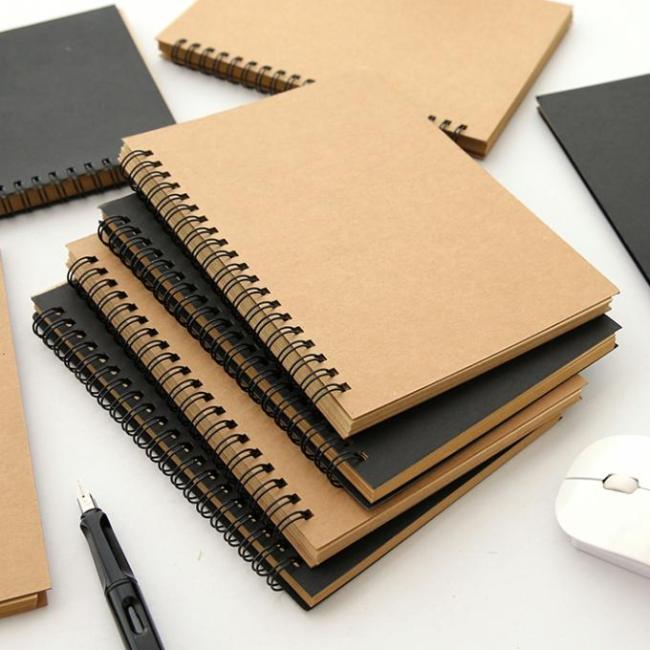

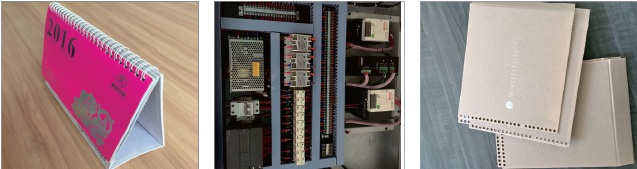

CK-420 automatic punching machine is one of our machinery designed for notebook factory to do hole punching jobs.Notebook factory mainly is paper size A4,then if they have some sketch paper,may request to do A3 paper punching.Then CK-420 is comming to be designed.Also this machine can do pp sheets,hardcover or cardboard,it already be a best choice for wire o notebook perforate.
Advantage:
1.Machine not only can do max. A3 size paper,but also can punch min A7 paper,this already be enough for notebook factory.Wire o notebook factory 80% choice to use this type machine do hole perforate.

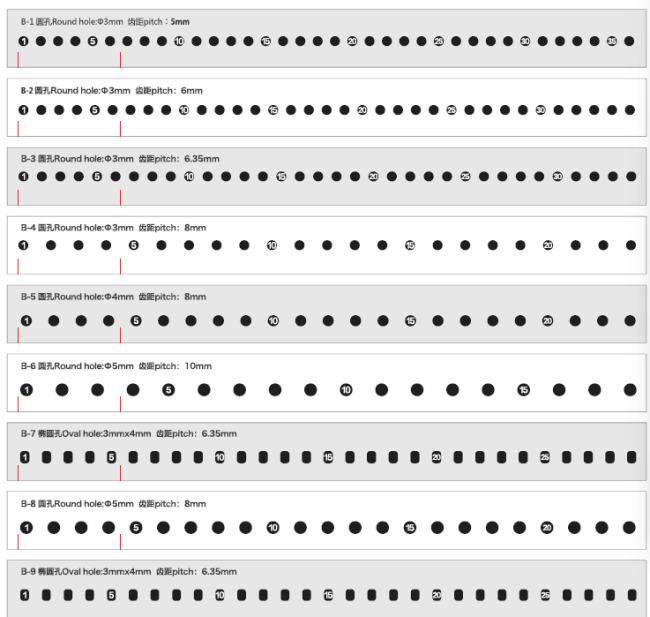

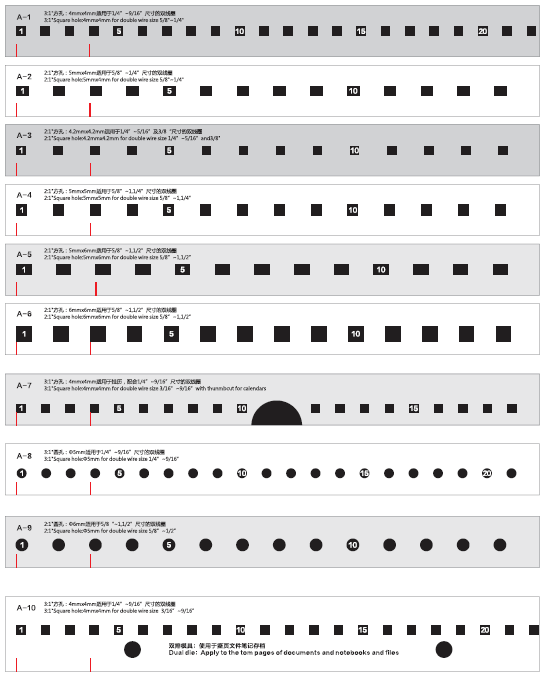

2.Stables and easy adjust,punch mould change very easy only 5 minuters.For index blocks, some special pages with index also could be punched by this machine.
3.Feeding methods,pp or paper it feeding by feeding pusher,and hard cover used sunction nozzle.

Technical Parameters

Punch Max. Size	420 * 420 mm , max. A3 size
Punch Min. Size	70 * 100 mm , min. A7 size
Max. Punch Thickness	2 mm
Max. Height for Feeding Paper	600 mm
Max. Working Speed	7200 times/hour
Paper Available	50 ~ 250 g/m²
Max. Height for Feeding Cover	600 mm
Power	380V / 50Hz / 3kw
Machine Weight	900 kg
Air Compressor	1.5kw (customer need prepare for themselves)
