PRINTYOUNG SPB-550 Computerized Industrial Paper Hole Punching Machine 380V 550mm Max Width 7200/hour High Productivity
Price:
USD 13900 Set
MOQ:
1 Set
Delivery Time:
15 days
Brand:
PRINTYOUNG
Product Description

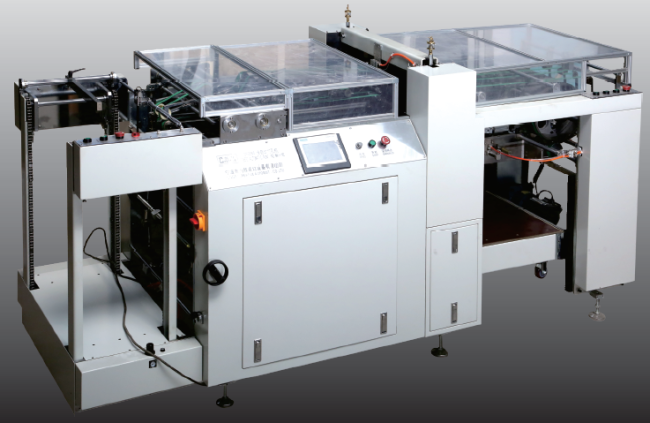

SPB-550 Automatic Punching Machine
Features
With two knife feeder make you feeder paper smoothly and accurate,avoid paper appearance have scratch when feeder paper.
With suction nozzle,it could feeder cardboard or hardcover,punch one by one.
With suction nozzle,it could feeder cardboard or hardcover,punch one by one.
Advantage:
1.It’s wide applied for punching different paper size,max. punching width 550mm and 3mm thickness of hardcover or cardboard.

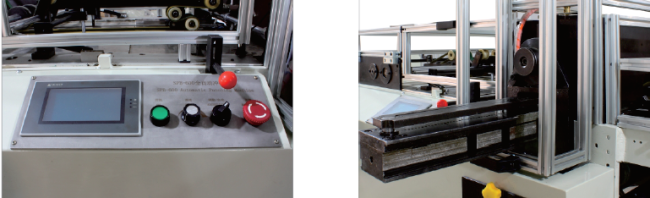

2.Easy operation and high safety with protect cover and emergency stop.

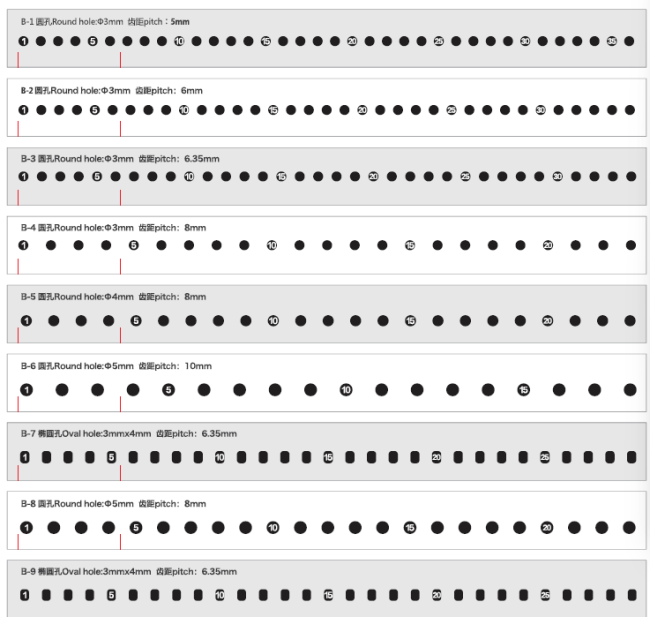

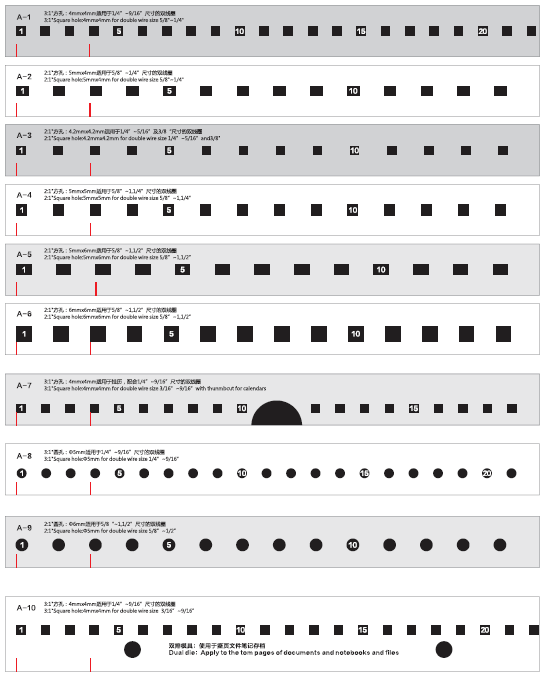

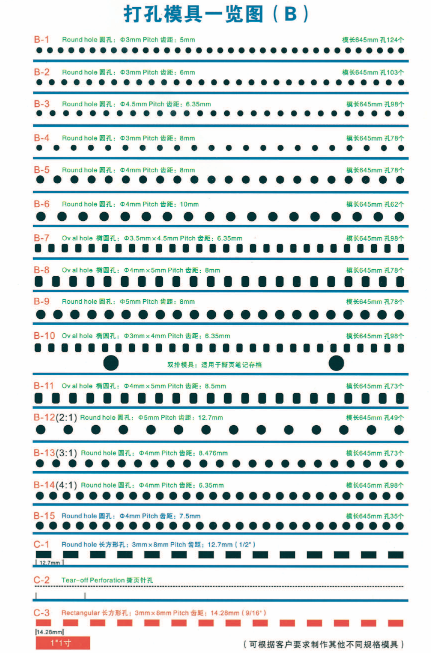

3.To make special punching hole is available for the customer’s request within the size of paper.
4.High quality for punching without deckle edge and accurate punching position.
5.Use two knife feeder when do paper,use suction nozzle to feeder cardboard.
1.It’s wide applied for punching different paper size,max. punching width 550mm and 3mm thickness of hardcover or cardboard.
2.Easy operation and high safety with protect cover and emergency stop.
3.To make special punching hole is available for the customer’s request within the size of paper.
4.High quality for punching without deckle edge and accurate punching position.
5.Use two knife feeder when do paper,use suction nozzle to feeder cardboard.
Technical Parameters
|
Max. Sheet
|
550 * 590 mm
|
|
Min. Sheet
|
120 * 100 mm
|
|
Max. Punching Thickness
|
3 mm
|
|
Weight of Paper
|
60 ~ 350 gsm
|
|
Punching Speed
|
up to 7200 punch times/hour
|
|
The Max. Height of Paper Feeder
|
500 mm
|
|
Power
|
3PH 380V 50Hz (other voltage on request)
|
|
Main Motor Power
|
3 kw
|
|
Dimension
|
2.2 * 1.3 * 1.2 m
|
|
Net Weight
|
1600 kg
|
Configuration
Machine have CE and already been export to many country,if you are in finding machine do hole job,please contact me,will give you clearly and satisfied support.

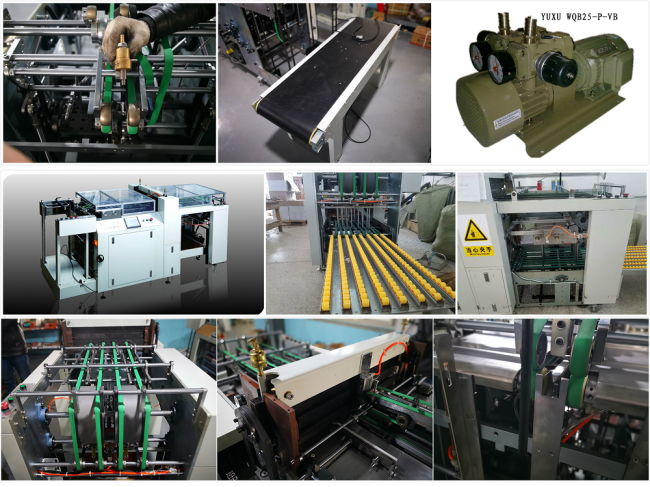

Machine with conveyor+vacuum pump for hard cover+protect cover+one mould inside+ other spare parts.(below picture show)
Machine with conveyor+vacuum pump for hard cover+protect cover+one mould inside+ other spare parts.(below picture show)
Applications
Automatic hole punch machine SPB550 is used in print house for hole punch or perforate work.Could finish paper hole punch,calendar hole punch,and cardboard hole punch.
