PRY-670C High-Speed Computerized Motor-Driven Two Electric Control Knife Paper Combi-Folding Machine

Price Negotiable

Price: USD 26500 Set

MOQ: 1 Set

Delivery Time: 30 days

Brand: PRINTYOUNG

Product Description

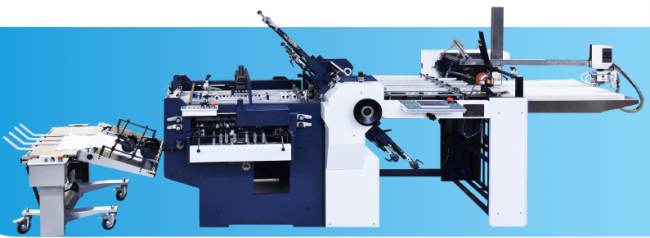

PRY-670C Combi-folding Machine

Features

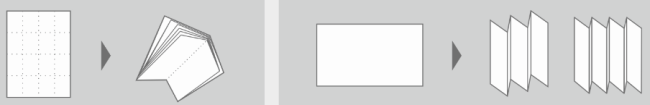

* Four buckle plates and two electrically-controlled knifes can carry out parallel folds and cross folds.
* High performance paper splitting is used for paper feeding.
* High precision helical gear transmission is adopted,with good synchronization and low noise.
* The electrical adopts PLC and frequency conversion speed control,with frequency conversion overload protection function.
* It adopts human-machine interface,can set parameters arbitrarily and has the function of fault point display.
* Embossing,punching and slitting can be done on demand.
* The enlarged paper output space can effectively prevent the paper from wrinkling.
* Electrically controlled knife with servo mechanism for each fold realizes high speed,superior reliability,and minor paper wastage.

Technical Parameters

Max. Sheet Size	670 * 1040 mm
Min. Sheet Size	150 * 200 mm
Max. Folding Speed	230 m/min
Min. Sheet Width of Parallel Folding	55 mm
Max. Folding Knife Cycle Rate	300 stroke/min
Sheet Range	40 ~ 210 g/m²
Machine Power	6.85 kw
Overall Dimensions	4900 * 1500 * 1630 mm
Machine Net Weight	2000 kg
