SM210-20DP Electric Semi-Automatic Paper Banding Machine with Belt Packaging Easy to Operate for Textiles Food & Beverage
Price:
USD 850 Set
MOQ:
1 Set
Delivery Time:
15 days
Brand:
PRINTYOUNG
Product Description
SM210 Semi-Automatic Paper Banding Machine
Features
* The channel of the machine is fixed.One machine can only be used with one size of tape (opp film or laminated paper).
* The machine and dispenser can be tailor-made as per customer’s request.
* The machine and dispenser can be tailor-made as per customer’s request.
Technical Parameters
|
Model
|
SM210-20DP
|
|
Power Supply
|
AC 220V / 50Hz / 80W
|
|
Banding Speed
|
24 times/minute
|
|
Banding Tension
|
≤ 5 kgs
|
|
Bow Frame Size
|
W473mm * H206mm
|
|
Workbench Height
|
250 mm
|
|
Banding Tape
|
OPP film tape or paper tape
|
|
Banding Sealing Way
|
heat sealing
|
|
Width of Band
|
20 mm
|
|
Roll Band
|
inner diameter:ф40mm , outer diameter:ф160mm , width:0.12mm
|
|
Max. Bundle Size
|
473 * 206 mm
|
|
Max. Bundle Size
|
30 * 10 mm
|
|

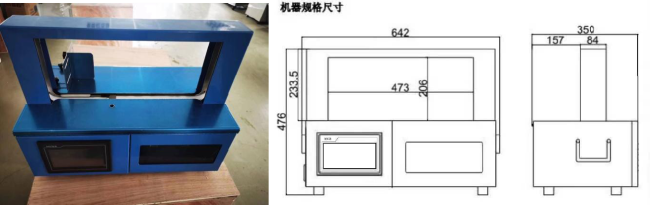

Machine Size
|
596 * 364 * 414 mm
|
|
Package Size
|
680 * 400 * 630 mm
|
|
Weight
|
net weight : 38kgs , gross weight : 55kgs
|

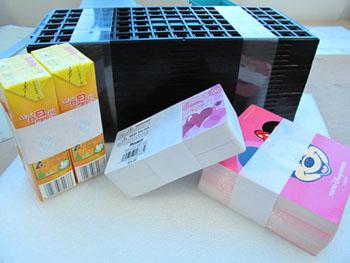

Application
